YH4
GRAND
VITARA
1. Tie-rod end
2. Knuckle
3. Nut
1. Tie-rod
2. Mark
3. Lock nut
4. Tie-rod end
1. Tie-rod end ball joint
1. Tie-rod
2. Mark
3. Lock nut
4. Tie rod end
5. Knuckle
6. Nut
6, (a)

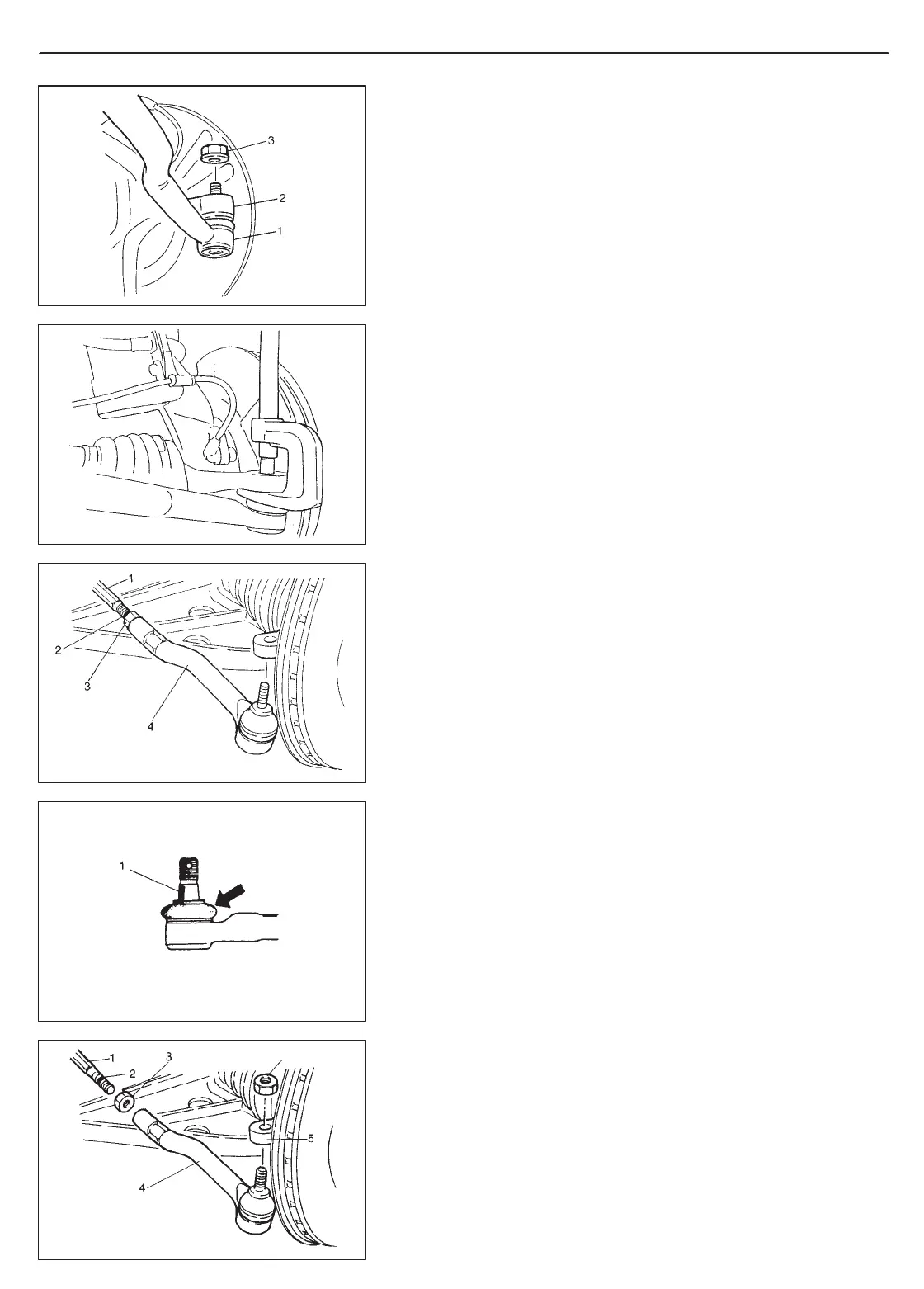

POWER STEERING (P/S) SYSTEM 3B1-13
ON-VEHICLE SERVICE
TIE-ROD END
REMOVAL
1) Hoist vehicle and remove wheel.
2) Remove tie-rod end nut.
3) Disconnect tie-rod end by using puller.
4) To facilitate adjustment after installation, put a mark on tie-rod
thread indicating position of tie-rod end lock nut. Then loosen
lock nut and remove tie rod end from tie rod.
INSPECTION
Tie-rod End Ball Joint
Inspect for play in tie-rod end ball joint. If found defective, replace.
INSTALLATION
1) Install tie-rod end lock nut and tie rod end to tie-rod. Tighten lock
nut to mark on tie-rod thread.
2) Install tie-rod end to knuckle. Tighten tie-rod end nut to specified
torque.
Tightening Torque
(a): 48 N
.
m (4.8 kg-m, 35.0 lb-ft)
