8C-12 INSTRUMENTATION/DRIVER INFORMATION
BRAKE AND PARKING BRAKE WARNING
LIGHT
BRAKE FLUID LEVEL SWITCH

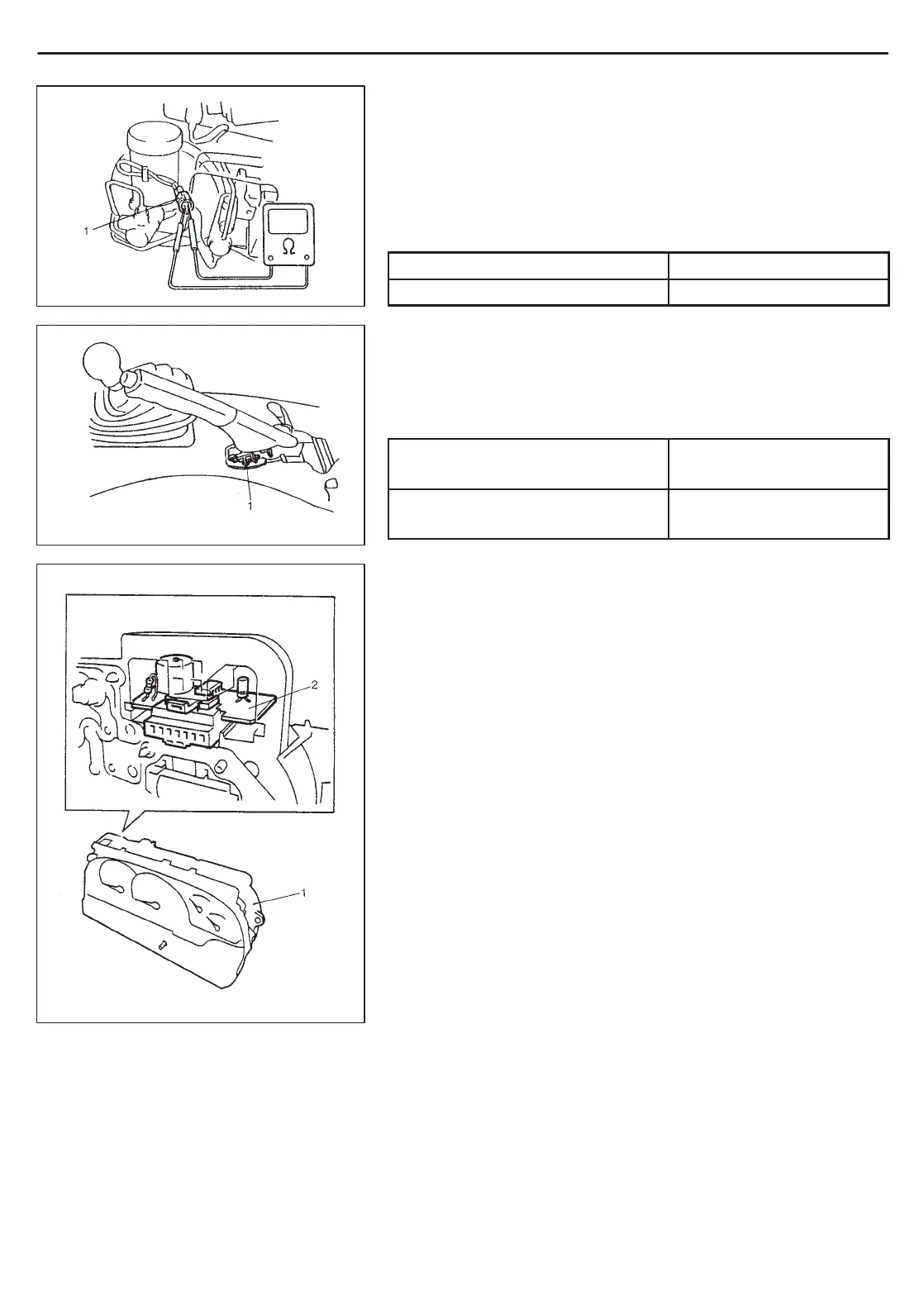

INSPECTION
Check switch (1) for continuity.
If check result is not as specified, replace switch (reservoir).
OFF position (float up)
No continuity
ON position (float down) Continuity
PARKING BRAKE SWITCH
INSPECTION
Check switch (1) for continuity.
If check result is not as specified, replace switch.
OFF position
(parking brake lever released)
No continuity
ON position
(parking brake lever pulled up)
Continuity
IGNITION KEY REMAINDER (IF EQUIPPED)/
LIGHT REMAINDER WARNING BUZZER
REMOVAL
1) Remove combination meter (1). Refer to COMBINATION ME-
TER in this section.
2) Remove buzzer unit (2) from combination meter.
INSTALLATION
Reverse removal procedure for installation.
