YH4
GRAND
VITARA

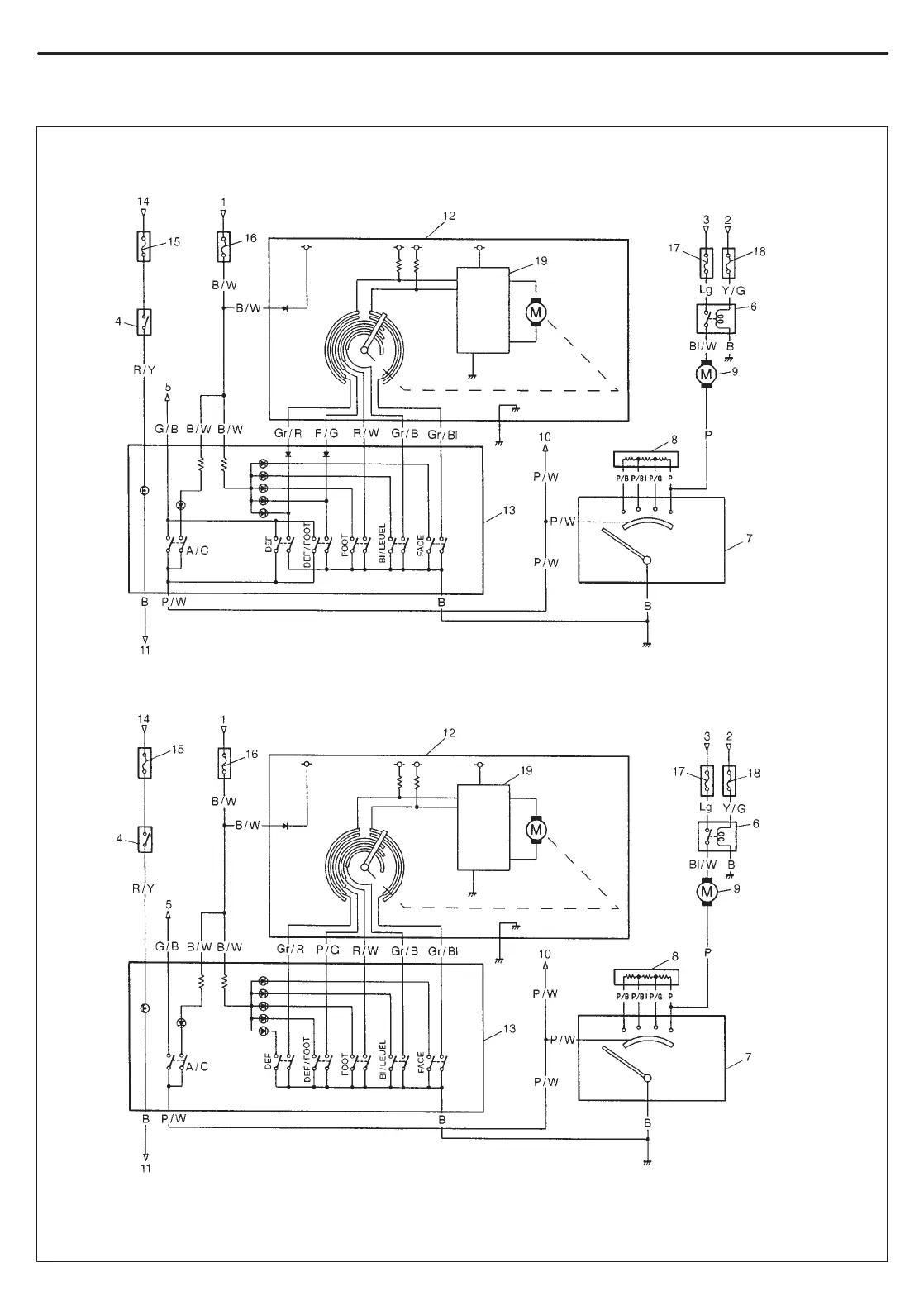

1A-4 HEATER AND VENTILATION
FOR LH VEHICLE
FOR RH VEHICLE
1. From ignition switch 1
2. From ignition switch 2
3. From blower fuse
4. Head light relay
5. To A/C controller
6. Blower motor relay
7. Blower motor switch
8. Blower resistor
9. Blower motor
10. To ECM
11. To illumination controller
(if equipped) or body ground
12. Mode control actuator
13. Mode control switch
14. From main fuse
15. TAIL fuse 15 A
16. IG METER fuse 20 A
17. HEATER fuse 30 A
18. REAR DEFG fuse 15 A
19. Drive circuit
WIRING CIRCUIT
