INSTRUMENTATION/DRIVER INFORMATION 8C-13
ON OFF
buckle out
buckle in
A
DOOR SWITCH
INSPECTION

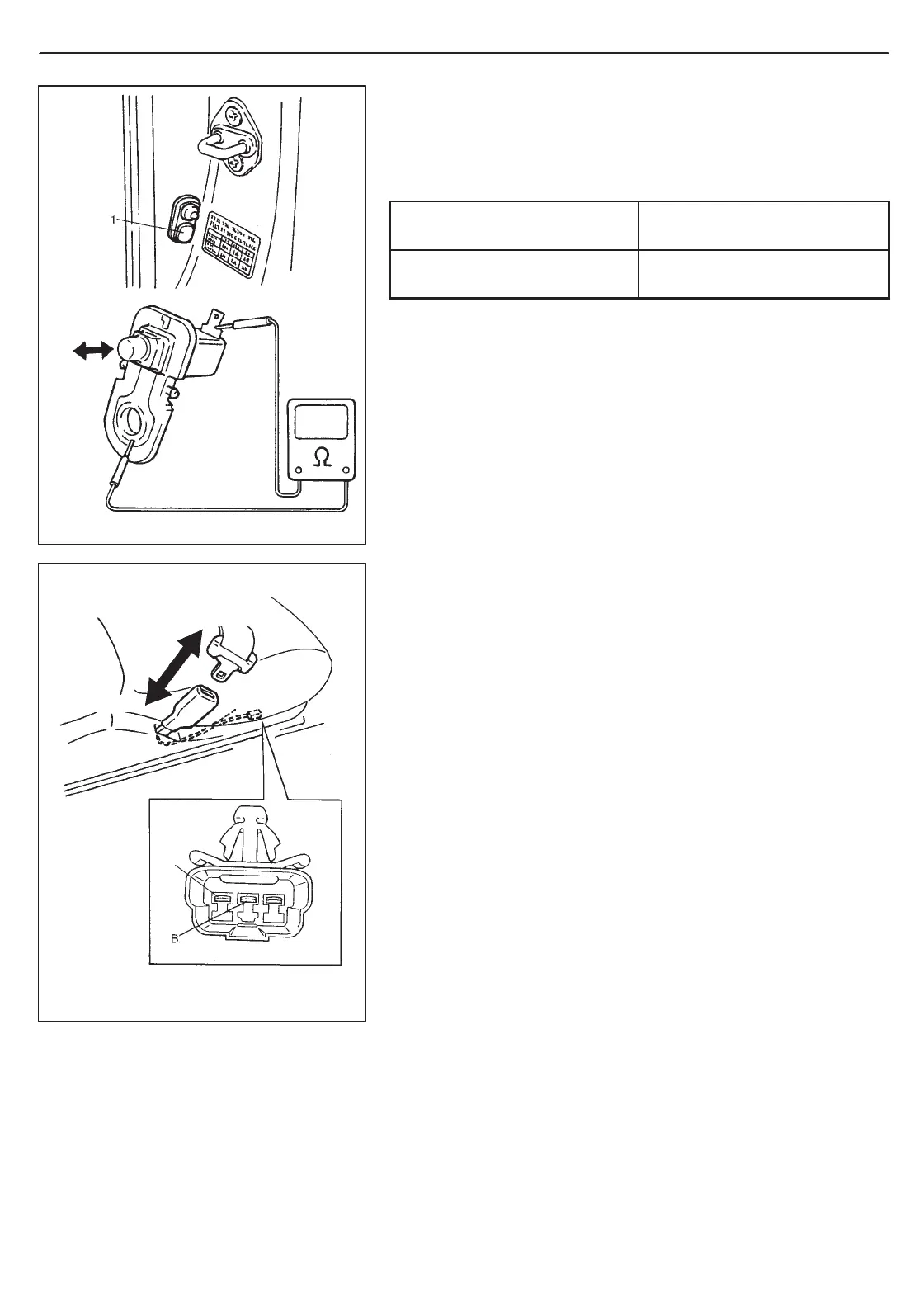

Remove door switch (1) from body and check switch for continuity.
If found defective, replace switch.
OFF position
(Door closed)
No continuity
ON position
(Door open)
Continuity
SEAT BELT WARNING LIGHT (IF EQUIPPED)
SEAT BELT BUCKLE SWITCH
INSPECTION
Check for continuity between seat belt buckle switch terminal A and
B at following condition.
Buckle out (seat belt not fastened): Continuity
Buckle in (seat belt fastened): No Continuity
If seat belt buckle switch does not follow the above condition, re-
place seat belt buckle switch.
