YH4
GRAND
VITARA
9-72 BODY SERVICE

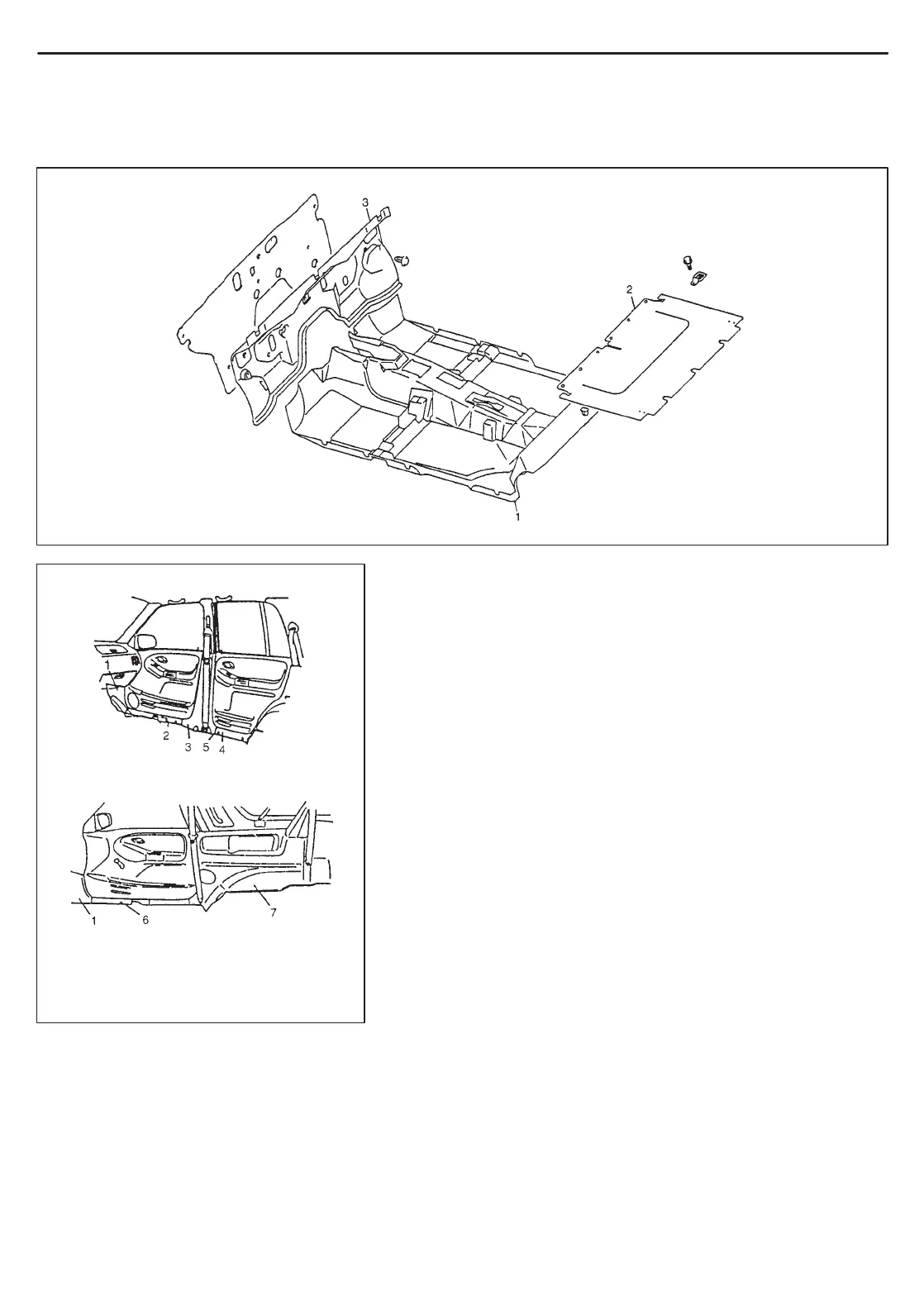

1. Front floor carpet
2. Luggage floor carpet
3. Dash panel insulation
1. Dash side trim
2. Front side sill scuffs
3. Center pillar inner lower trim
4. Rear side sill scuff
5. Fastener
6. Side sill scuff
7. Rear quarter lower trim
EXTERIOR AND INTERIOR TRIM
FLOOR CARPET
FRONT FLOOR CARPET
REMOVAL
1) Remove front seats and rear seat cushions.
2) Remove seat belt lower anchor bolt.
3) Remove dash side trims, front side sill scuffs (4 door model),
center pillar inner lower rims (4 door model), rear side sill scuffs
(4 door model), side sill scuffs (2 door model) and rear quarter
lower trim.
4) Remove parking brake lever cover, console box and console
box front extension.
5) Remove front floor carpet.
INSTALLATION
Reverse removal sequence to install front floor carpet, noting fol-
lowing point.
When tightening seat belt anchor bolt, refer to Section 10A
“FRONT SEAT BELT” for tightening torque.
LUGGAGE FLOOR CARPET
Luggage floor carpet is fixed to floor with clips.
REMOVAL
Detach clips, using care not to pull up carpet with force and break
clips. And remove inner trim.
INSTALLATION
Reverse removal sequence to install luggage floor carpet.
