YH4
GRAND
VITARA

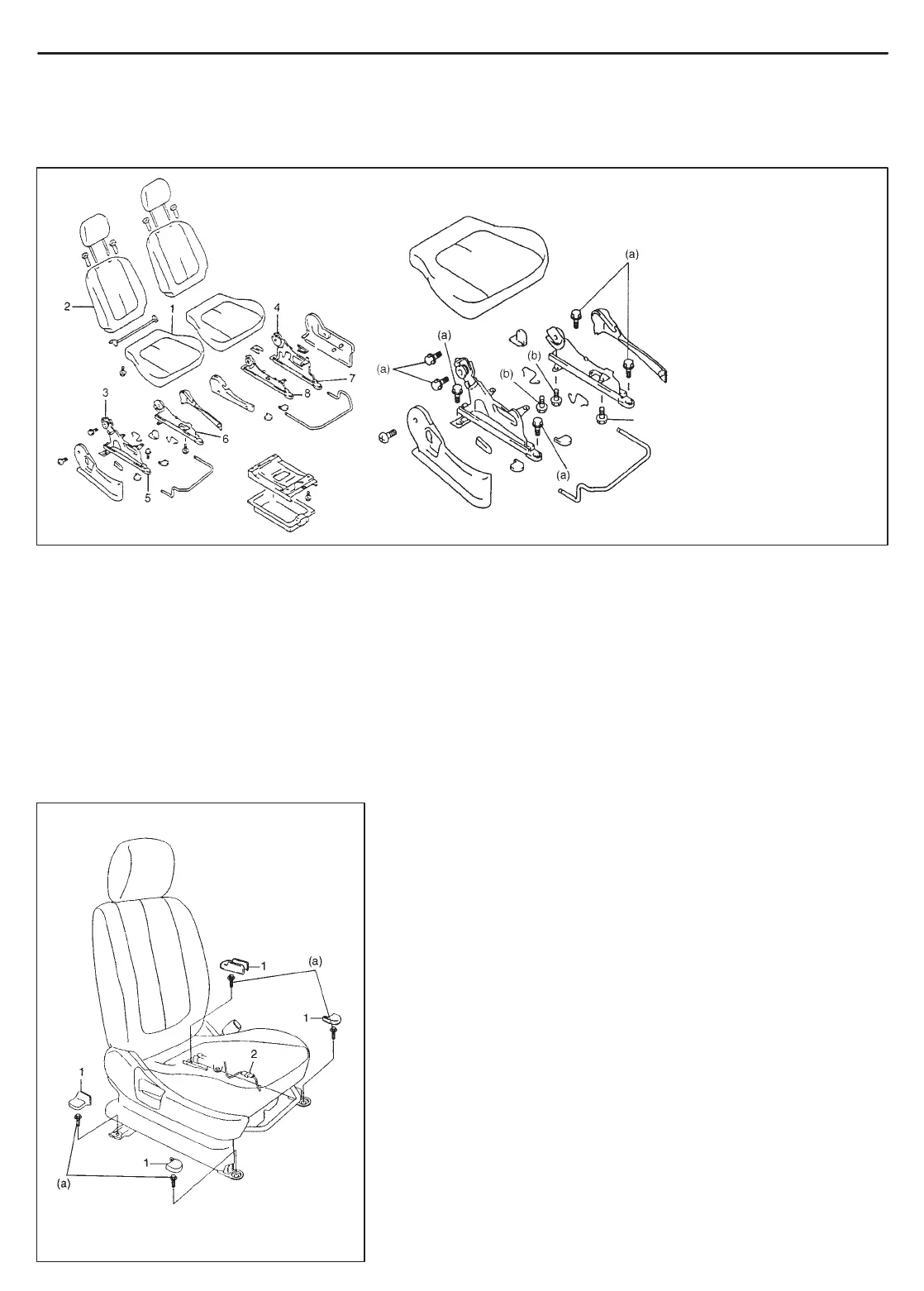

1. Seat cushion
2. Seat back
3. Reclining assy (RH side)
4. Reclining assy (LH side)
5. Seat adjuster (RH outside)
6. Seat adjuster (RH inside)
7. Seat adjuster (LH outside)
8. Seat adjuster (LH inside)
Tightening Torque
(a): 35 N
.
m (3.5 kg-m, 25.5 lb-ft)
(b): 23 N
.
m (2.3 kg-m, 17.0 lb-ft)
1. Cover
2. Coupler
(b)
9-34 BODY SERVICE
SEAT
FRONT SEAT
REMOVAL
1) Disconnect lead wire(s) at coupler (if equipped). Remove four
mounting bolts fixing front seat to seat rail to remove front seat.
2) Disassemble and repair seat as necessary.
INSTALLATION
Reverse removal procedure to install front seat.
Torque to specifications, as shown.
Tightening Torque
(a): 35 N
.
m (3.5 kg-m, 25.5 lb-ft)
To Next Page
