YH4
GRAND
VITARA

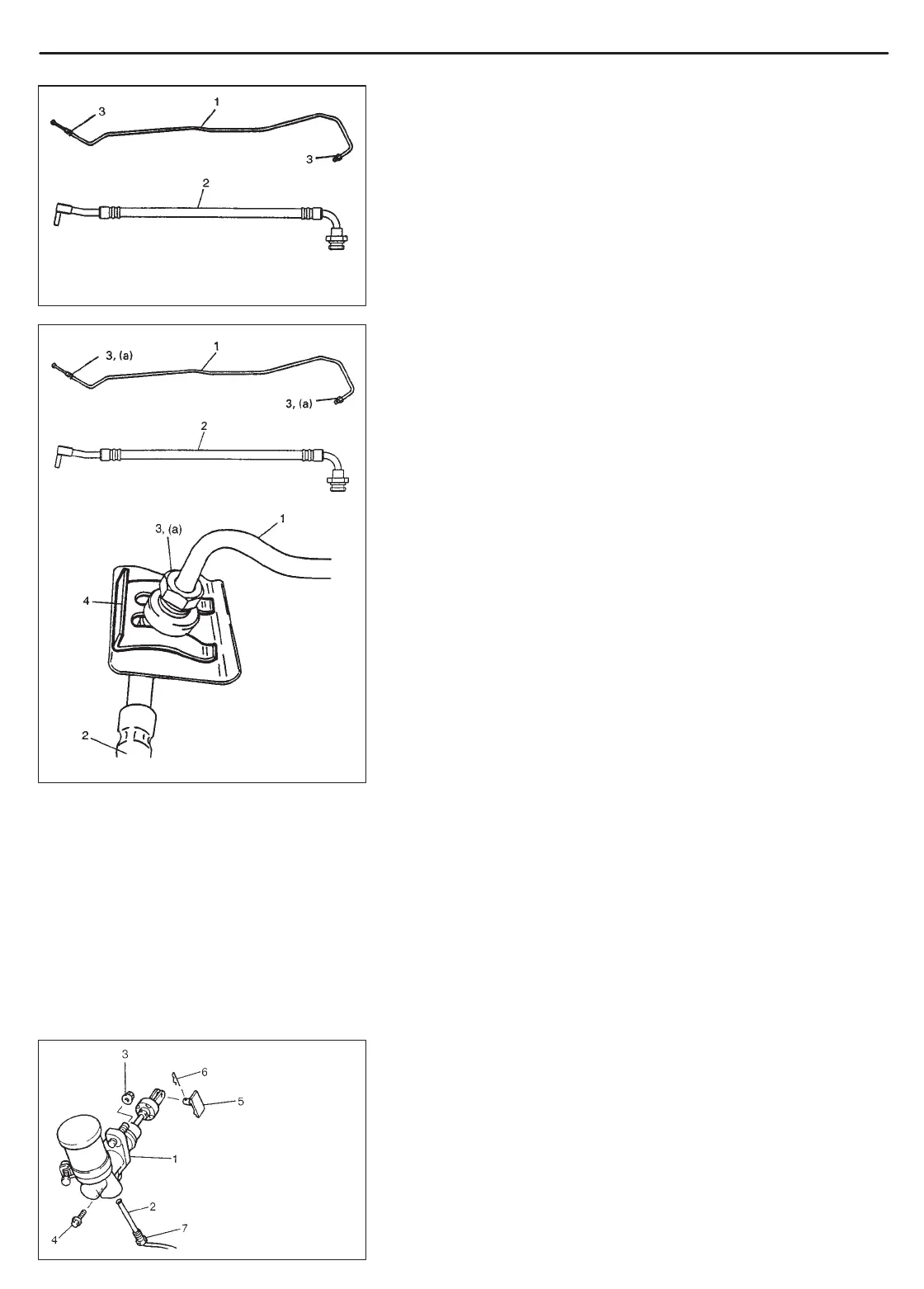

1. Pipe
2. Hose
3. Flare nut
1. Pipe
2. Hose
3. Flare nut
4. E-ring
1. Master cylinder
assembly
2. Clutch pipe
3. Attaching nut
4. Attaching bolt
5. Clevis pin
6. Clip
7. Flare nut
CLUTCH 7C1-5
INSPECTION
Check pipe and hose for dent, kink, crack, dirt and dust. Replace
if check result is not satisfactory.
INSTALLATION
Reverse removal sequence noting following points.
Tighten flare nuts to specified torque.
Tightening Torque
(a): 16 N
.
m (1.6 kg-m, 11.5 lb-ft)
NOTE:
For air bleeding of master cylinder alone, it must be removed
from vehicle.
(For procedures of removal and installation of master cylin-
der assembly and air bleeding, refer to CLUTCH MASTER
CYLINDER section.)
Do not allow fluid to get on painted surface.
Do not allow pipe and hose to contact hard against vehicle
or other parts.
Install each clamp securely.
Install E-ring securely as shown.
After installation, check clutch pedal free travel and bleed air
from system.
Check fluid leakage.
Add fluid close to MAX level of reservoir.
CLUTCH MASTER CYLINDER
REMOVAL
1) Clean around reservoir cap and take out fluid with syringe or
such.
2) Remove push rod clevis pin.
3) Disconnect fluid pipe from master cylinder.
NOTE:
Do not allow fluid to get on painted surfaces.
4) Remove master cylinder attaching nut and bolt.
5) Remove master cylinder assembly and gasket.
