YH4

GRAND

VITARA

For CAMI production vehicle

For IWATA production vehicle

1B-24 AIR CONDITIONING (OPTIONAL)

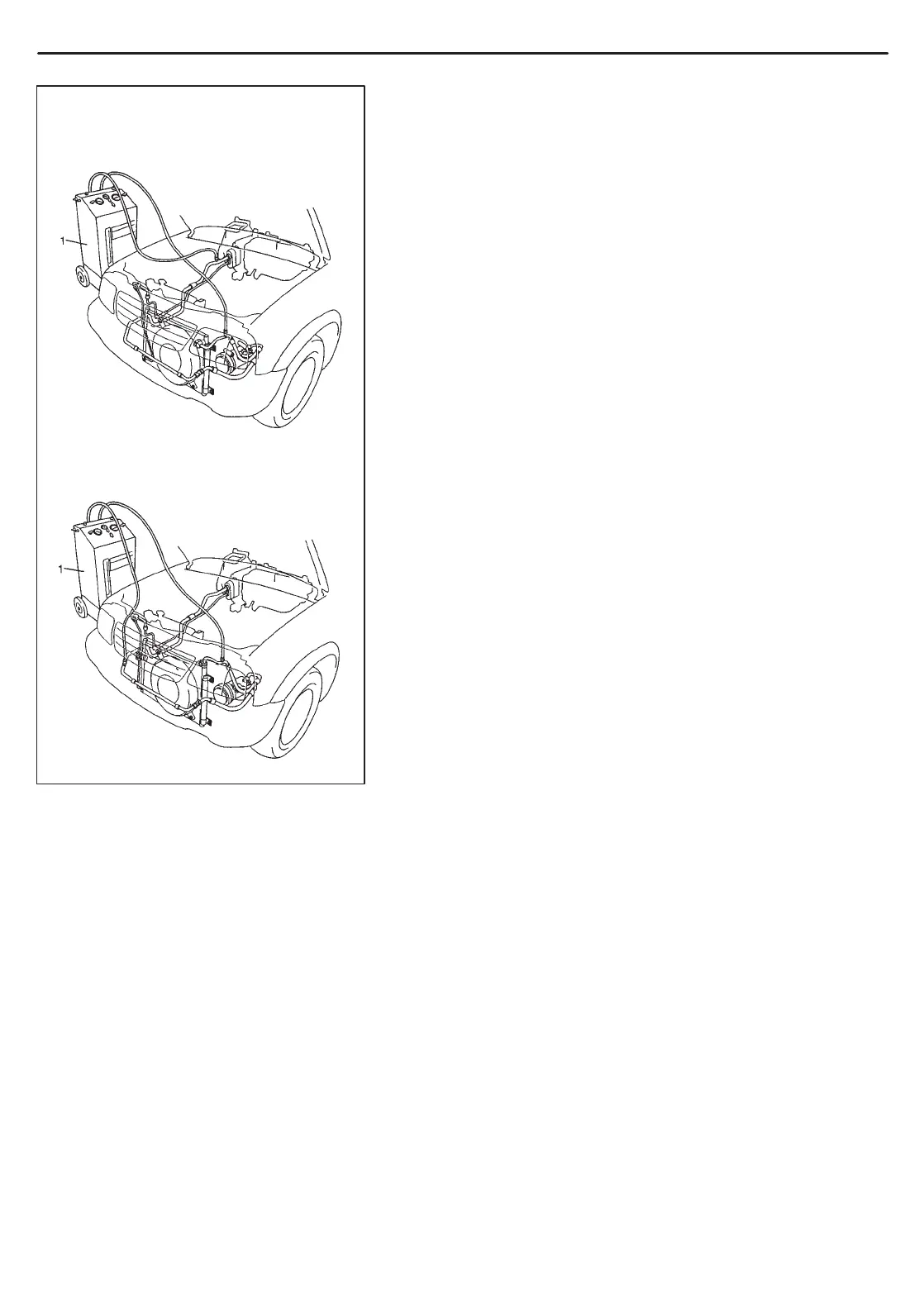

RECOVERY

NOTE:

 When discharging refrigerant out of A/C system, always re-

cover it by using refrigerant recovery and recycling equip-

ment (1). Discharging it into atmosphere would cause ad-

verse effect to environments.

 When handling recovery and recycling equipment, be sure

to follow the instruction manual for the equipment.
