YH4
GRAND
VITARA
1

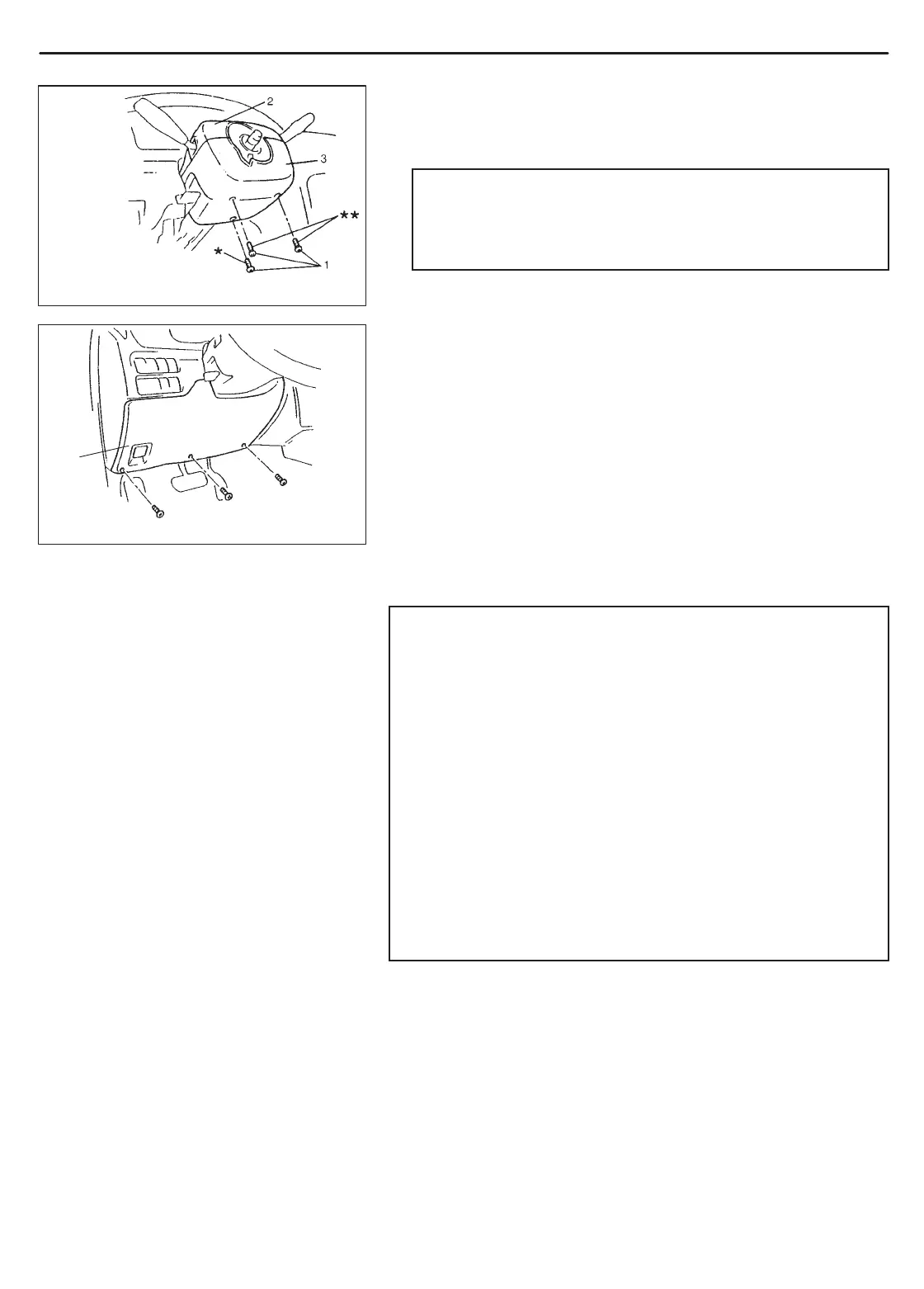

1. Steering column hole cover
1. Steering column cover screw
2. Steering column upper cover
3. Steering column lower cover
: Standard screw
: Tapping screw
*
**
AIR BAG STEERING WHEEL AND COLUMN 3C1-9
3) Connect all connectors that have been removed in removal.
4) Install steering column upper and lower cover, and then tighten
steering column cover screws.
CAUTION:
When installing lower cover and upper cover, be careful
so that contact coil and combination switch lead wire is
not caught between covers.
5) Install steering column hole cover.
6) Install steering wheel to steering column. Refer to “STEERING
WHEEL” in this section.
STEERING COLUMN
CAUTION:
Once the steering column is removed from the vehicle, the
column is extremely susceptible to damage.
Dropping the column assembly on its end could collapse
the steering shaft or loosen the plastic shear pins which
maintain column length leaning on the column assembly
could cause it to bend or deform.
Any of the above damage could impair the column’s col-
lapsible design.
When loosening steering column mounting bolts, make
sure that steering column assembly and steering shaft low-
er assembly have been separated. Loosening them with
steering column assembly and steering shaft lower assem-
bly assembled could cause damage to bearing in steering
shaft lower assembly.
NOTE:
When servicing steering column or any column-mounted
component, remove steering wheel. But when removing steer-
ing column simply to gain access to instrument panel compo-
nents, leave steering wheel installed on steering column.
