YH4
GRAND
VITARA
5E1-32 ANTILOCK BRAKE SYSTEM (ABS) (OPTIONAL)
1. ABS hydraulic
unit/control
module
assembly
2. Brake pipe
1. ABS hydraulic
unit/ control
module connector

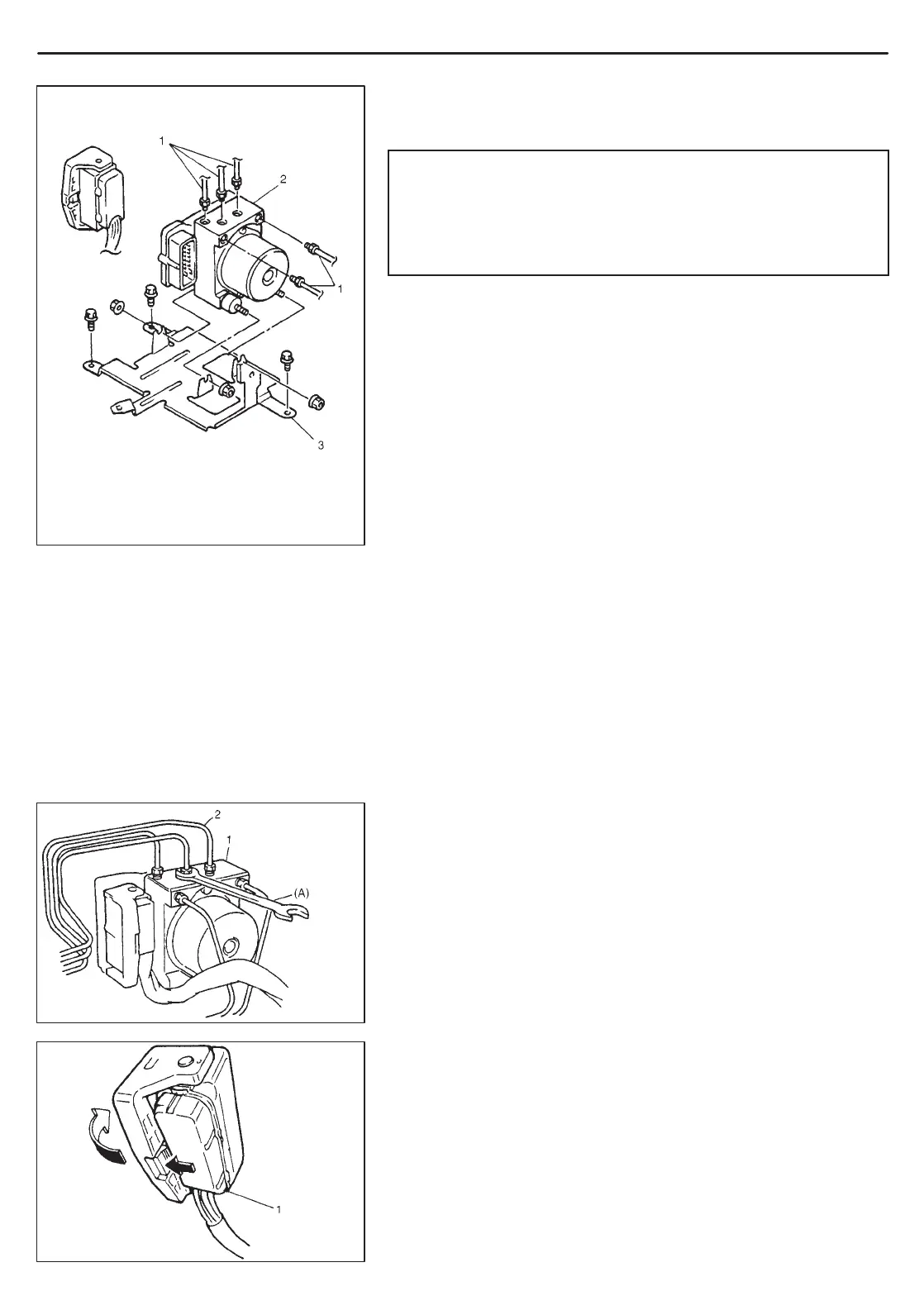

1. Brake pipe
2. ABS hydraulic unit/
control module assembly
3. Bracket
ABS HYDRAULIC UNIT/CONTROL MODULE
ASSEMBLY
CAUTION:
Never disassemble ABS hydraulic unit/control module as-
sembly, loosen blind plug or remove motor. Performing any
of these prohibited services will affect original performance
of ABS hydraulic unit/control module assembly.
HYDRAULIC UNIT INSPECTION
Check hydraulic unit for fluid leakage.
If any, repair or replace.
REMOVAL
1) Disconnect negative cable at battery.
2) Using special tool, disconnect brake pipes from ABS hydraulic
unit/control module assembly and loosen flare nuts as shown
figure.
Special Tool
(A): 09950-78220
NOTE:
Put bleeder plug cap onto pipe to prevent fluid from spilling.
Do not allow brake fluid to get on painted surfaces.
3) Disconnect ABS hydraulic unit/control module assembly con-
nector.
