YH4
GRAND
VITARA

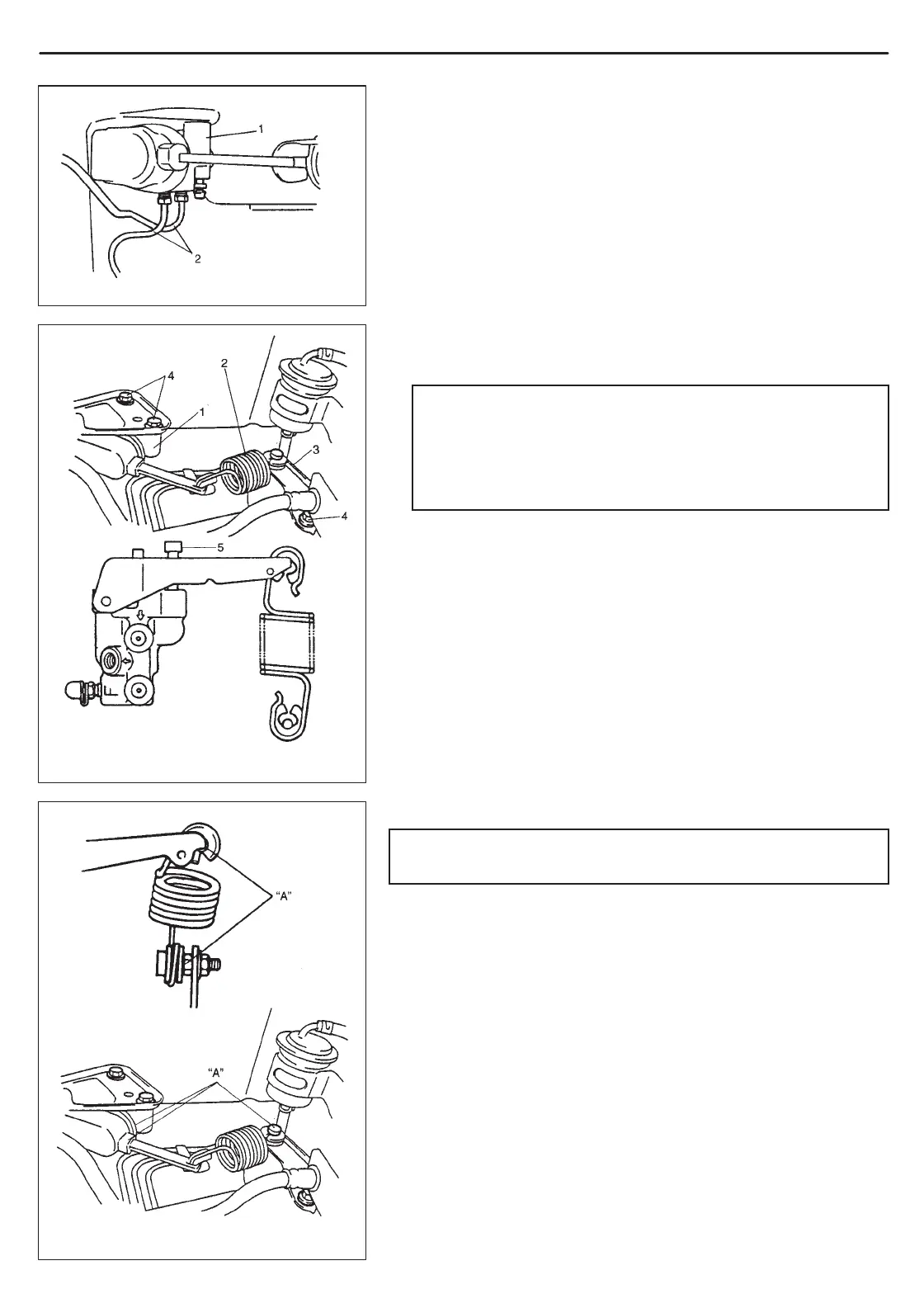

1. LSPV
2. Brake pipe
1. LSPV assembly
2. LSPV spring
3. LSPV stay
4. Bolt
5. Stepper bole
BRAKES PIPE/HOSE/MASTER CYLINDER 5A-17
LSPV (Load Sensing Proportioning Valve)
ASSEMBLY (if equipped)
REMOVAL
1) Clean around reservoir cap and take out fluid with syringe or
such.
2) Hoist vehicle.
3) Disconnect brake pipes from LSPV.
4) Remove LSPV assembly with spring from vehicle body.
5) Remove spring from lever.
CAUTION:
LSPV assembly must not be disassembled.
Replace with new one if defective.
Stopper bolt should not be loosened or tightened. (if
equipped)
INSTALLATION
CAUTION:
Refer to above CAUTION.
Install by reversing removal procedure, noting the following.
1) Apply multi-purpose grease “A” to upper and lower joint of coil
spring.
To Next Page
