YH4
GRAND
VITARA

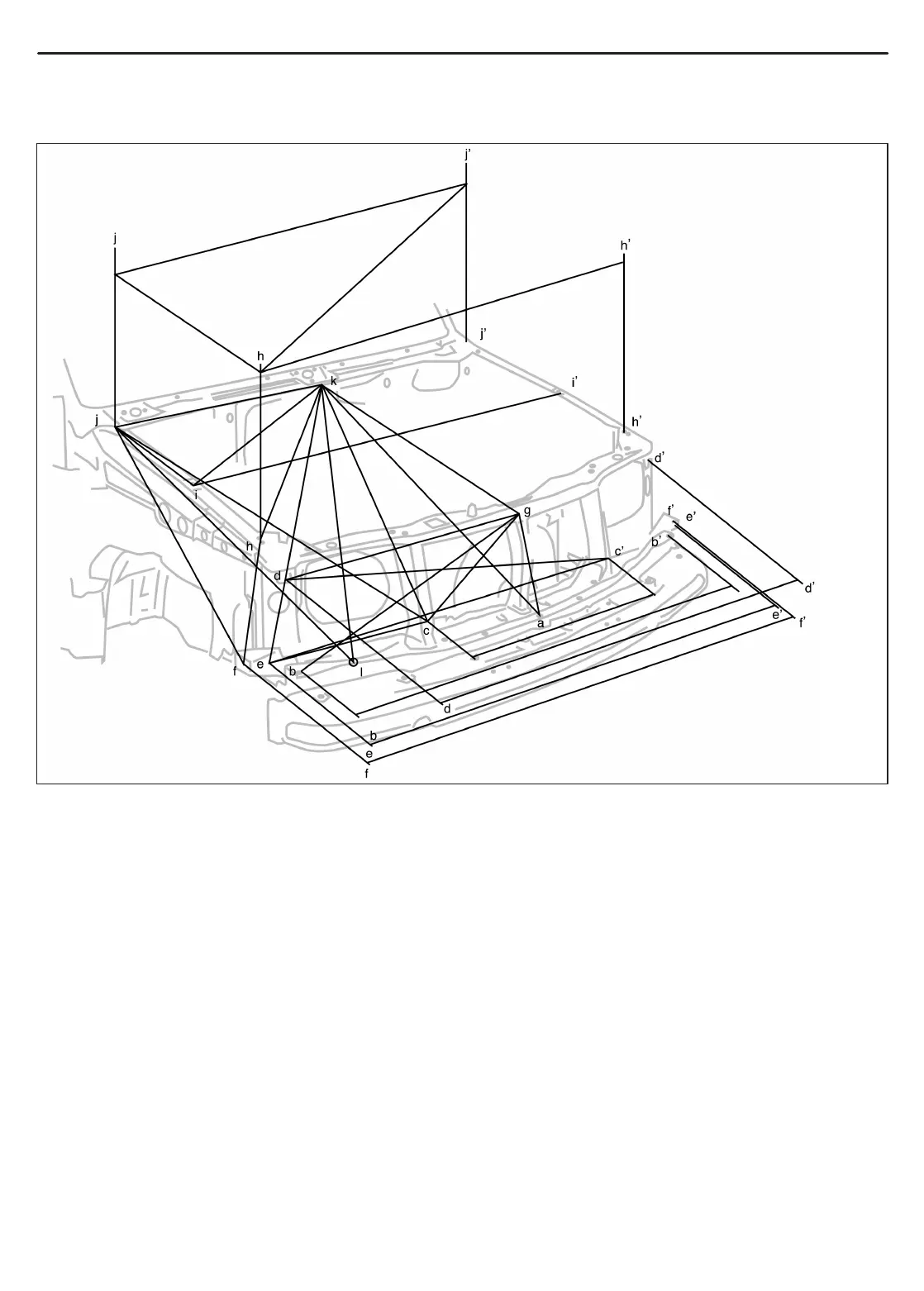

Hole to hole distance
“a – g” : 276 mm (10.87 in.)
“a – k” : 1000 mm (39.37 in.)
“b – b’”: 1302 mm (51.26 in.)
“b – g” : 730 mm (28.74 in.)
“c – c’” : 668 mm (26.30 in.)
“c – e” : 414 mm (16.30 in.)
“c – g” : 406 mm (15.98 in.)
“c – j” : 1029 mm (40.51 in.)
“c – k” : 1000 mm (39.37 in.)
“d – d’”: 1302 mm (51.26 in.)
“d – e” : 189 mm (7.44 in.)
“d – c’” : 1016 mm (40.00 in.)
“d – g” : 672 mm (26.46 in.)
“d – k” : 968 mm (38.11 in.)
“e – e’”: 1456 mm (57.32 in.)
“f – f’” : 1550 mm (61.02 in.)
“f – h” : 299 mm (11.77 in.)
“f – j” : 811 mm (31.93 in.)
“g – k” : 854 mm (33.62 in.)
“h – h’”: 1339 mm (52.72 in.)
“h – j’” : 1504 mm (59.21 in.)
“h – j” : 677 mm (26.65 in.)
“h – k” : 927 mm (36.50 in.)
“i – i’” : 1344 mm (52.91 in.)
“i – j” : 391 mm (15.39 in.)
“i – k” : 760 mm (29.92 in.)
“j – j’” : 1348 mm (53.07 in.)
“j – k” : 676 mm (26.61 in.)
“l – j” : 961 mm (37.83 in.)
“l – k” : 1018 mm (40.08 in.)
a. Front bumper installation clip hole
b (b’). Front bumper installation hole
c (c’). Headlight installation hole
d (d’). Headlight installation resin nut hole
e (e’). Headlight installation hole
f (f’). Front fender installation hole
g. Center member installation hole
h (h’). Fender installation reference hole
i (i’). Fender installation hole
j (j’). Fender installation reference hole
k. Garnish installation clip hole
l. Mounting installation hole
9-26 BODY SERVICE
BODY DIMENSIONS
4 door model, 2 door model
