YH4

GRAND

VITARA

5A-8 BRAKES PIPE/HOSE/MASTER CYLINDER

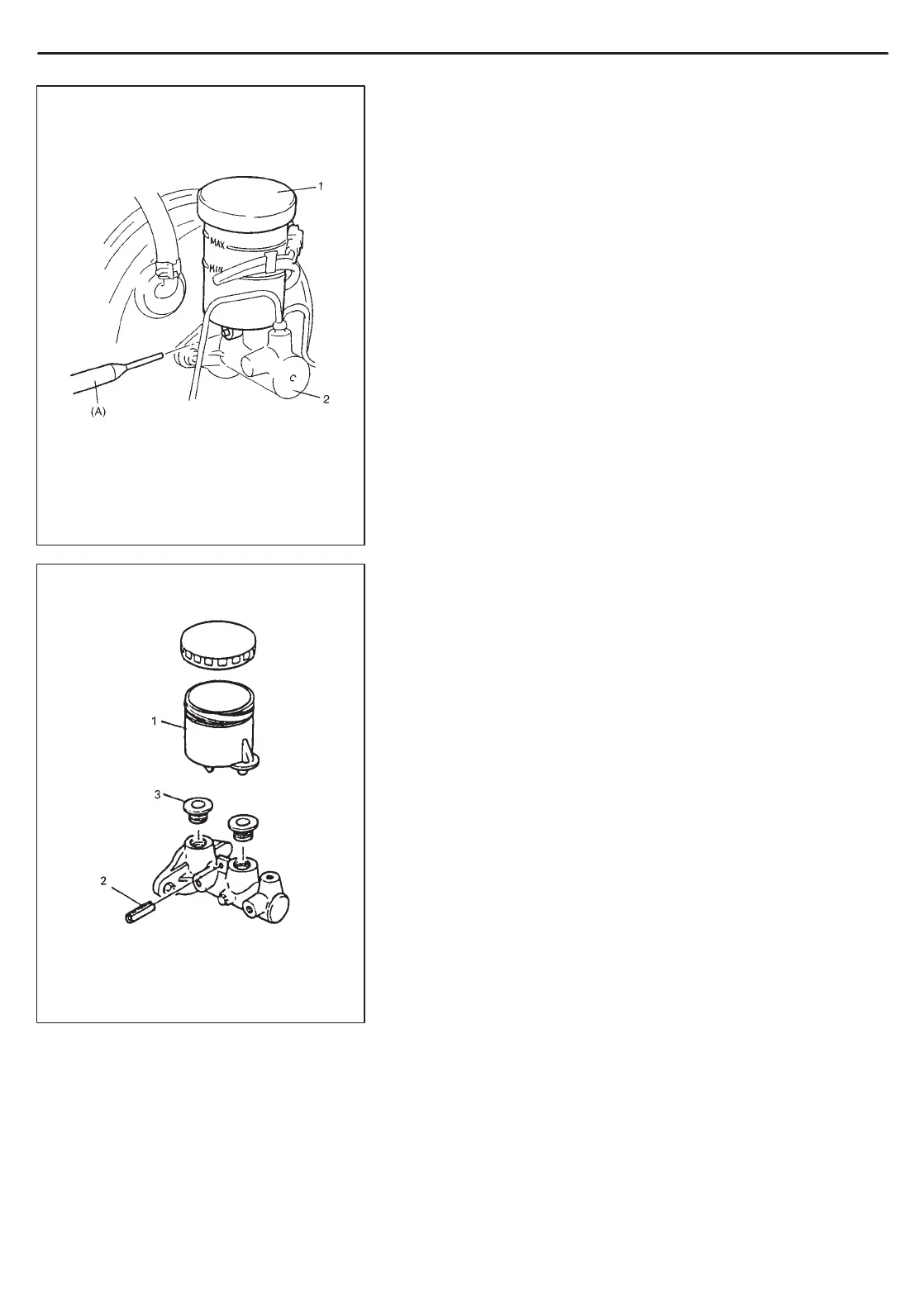

1. Reservoir

2. Master cylinder

1. Reservoir

2. Connector pin

3. Grommets

MASTER CYLINDER RESERVOIR

REMOVAL

1) Disconnect reservoir lead wire at coupler.

2) Clean outside of reservoir.

3) Take out fluid with syringe or such.

4) Remove reservoir connector pin by using special tool.

Special Tool

(A): 09922-85811

5) Remove reservoir.

NOTE:

Do not allow brake fluid to get on painted surfaces.
