YH4
GRAND
VITARA

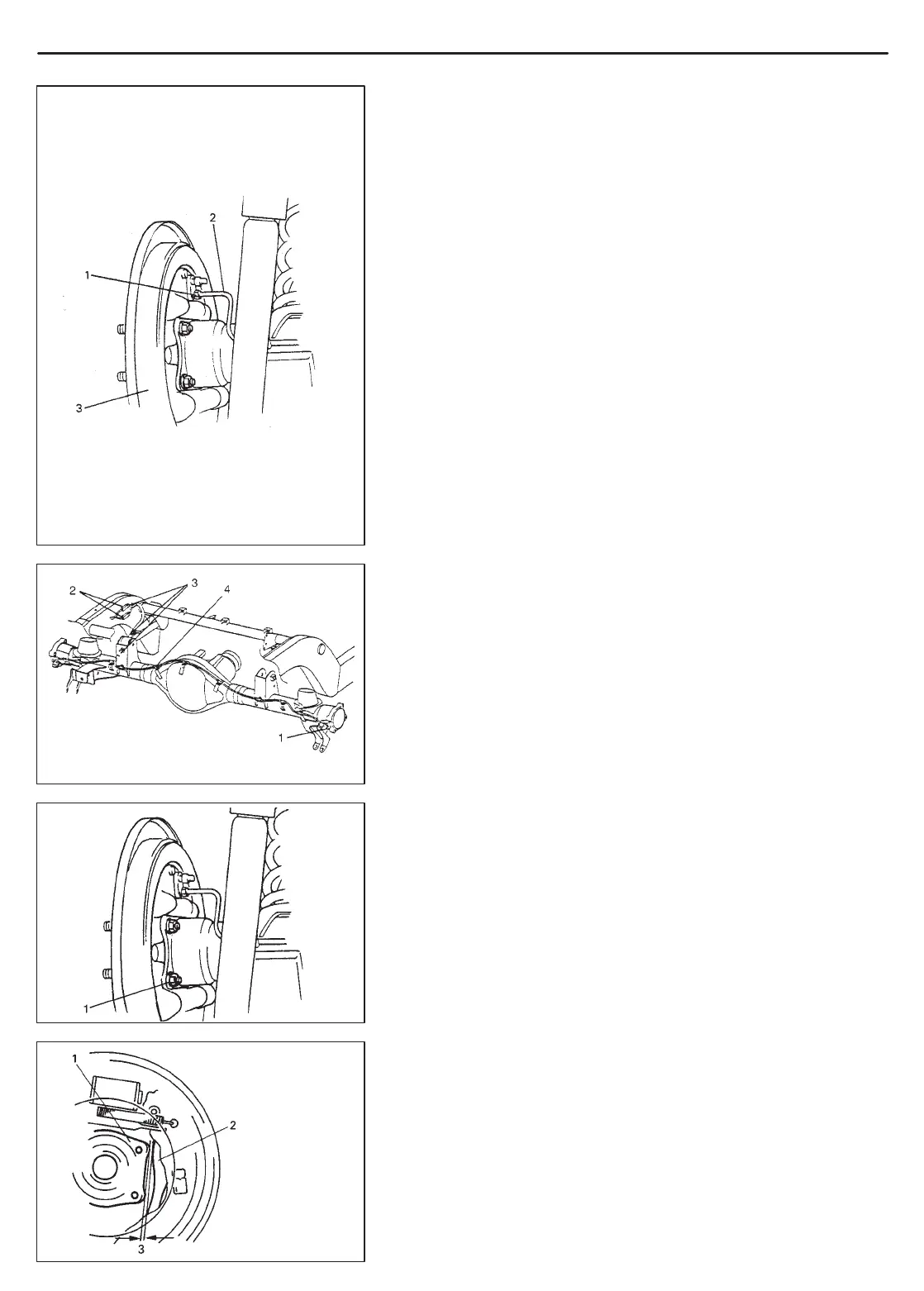

1. Brake pipe flare nut
2. Brake pipe
3. Brake back plate
1. Bearing retainer
2. Parking brake shoe
lever
3. Clearance
1. Nut
1. Wheel speed sensor
2. Wheel speed sensor coupler
3. Wheel speed sensor harness clamp
4. Wheel speed sensor harness
3E-16 REAR SUSPENSION
REAR AXLE HOUSING
REMOVAL
1) Drain differential gear oil.
Carry out steps 2) to 7) and 15) to 18) on both right and left
wheels.
Note that left wheel and its related parts are used in illustrations
in this section.
2) Remove rear brake drum. (Refer to steps 1) to 5) of BRAKE
DRUM REMOVAL.)
3) Disconnect brake pipe from wheel cylinder. With right side wheel
cylinder, disconnect 2 brake pipes.
4) For vehicle with ABS, disconnect wheel speed sensor coupler
and remove wheel speed sensor with its harness.
5) Remove rear wheel bearing retainer nuts from rear axle hous-
ing.
6) Check to ensure that there is clearance between rear wheel
bearing retainer and parking brake shoe lever. If no clearance
is found, loosen cable locking nut further to obtain clearance.
To Next Page
