YH4
GRAND
VITARA

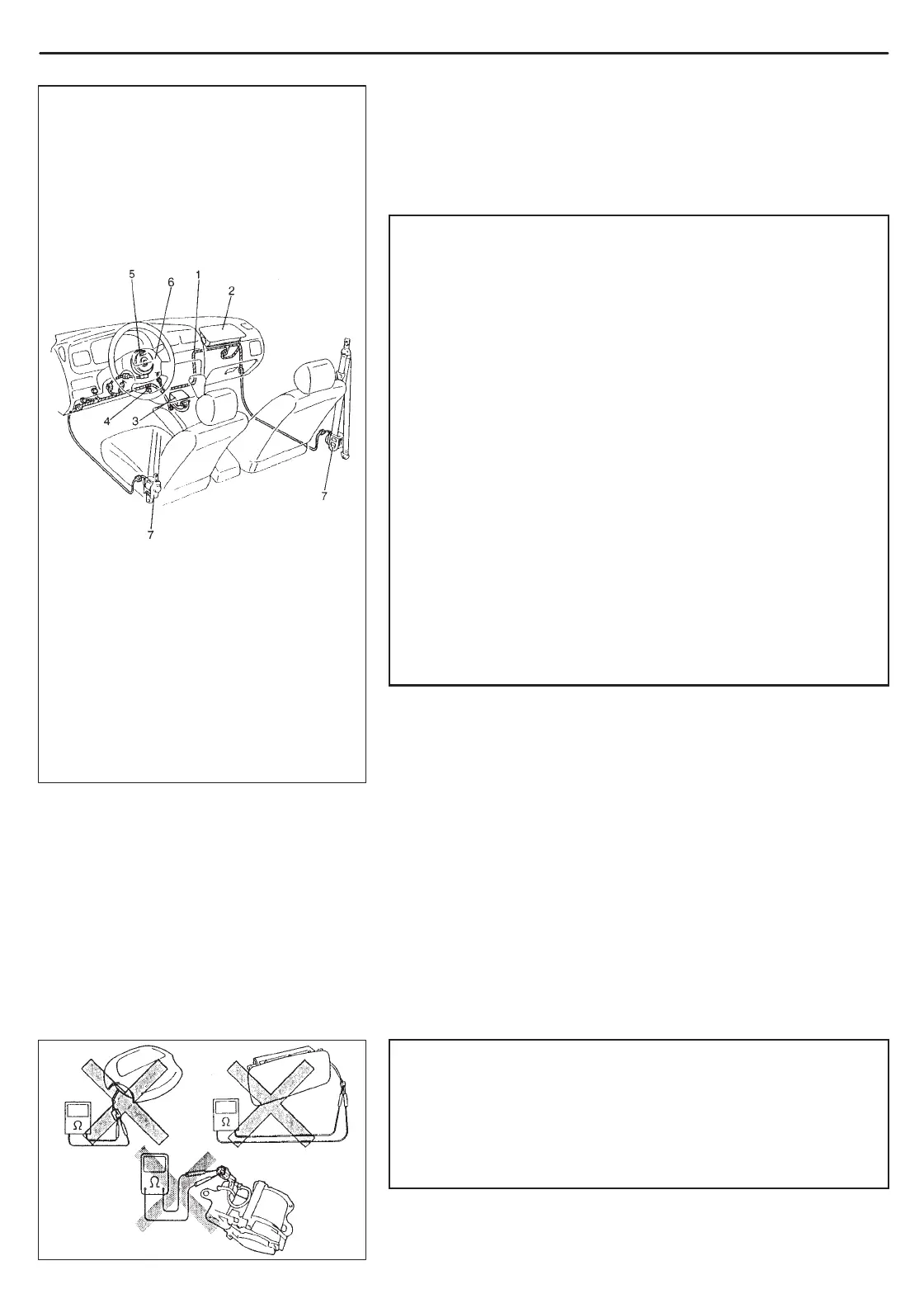

1. Air bag wire harness
2. Passenger air bag
(inflator) module
3. SDM
4. DLC
5. Contact coil
6. Driver air bag (inflator)
module
7. Seat belt pretensioner
(if equipped)
GENERAL INFORMATION 0A-3
PRECAUTIONS
PRECAUTION FOR VEHICLES EQUIPPED
WITH A SUPPLEMENTAL RESTRAINT
(AIR BAG) SYSTEM
WARNING:
The configuration of air bag system parts are as shown in
the figure. When it is necessary to service (remove, rein-
stall and inspect) these parts, be sure to follow proce-
dures described in SECTION 10B. Failure to follow proper
procedures could result in possible air bag system activa-
tion, personal injury, damage to parts or air bag system
being unable to activate when necessary.
If the air bag system and another vehicle system both
need repair, SUZUKI recommends that the air bag system
be repaired first, to help avoid unintended air bag system
activation.
Do not modify the steering wheel, dashboard, or any other
air bag system components. Modifications can adversely
affect air bag system performance and lead to injury.
If the vehicle will be exposed to temperatures over 93C
(200F) (for example, during a paint baking process), re-
move the air bag system components beforehand to avoid
component damage or unintended air bag system activa-
tion.
DIAGNOSIS
When troubleshooting air bag system, be sure to follow
“DIAGNOSIS” in SECTION 10B. Bypassing these proce-
dures may result in extended diagnostic time, incorrect diag-
nosis, and incorrect parts replacement.
Never use electrical test equipment other than that specified
in this manual.
WARNING:
Never attempt to measure the resistance of the air bag (in-
flator) modules (driver and passenger) and seat belt preten-
tioners (driver and passenger). It is very dangerous as the
electric current from the tester may deploy the air bag or ac-
tivate the pretensioner.
