YH4
GRAND
VITARA
8D-32 WINDOWS, MIRRORS, SECURITY AND LOCKS
3. To open
4. To close
3. Left turn
4. Right turn
Terminal
Switch
Terminal
Switch

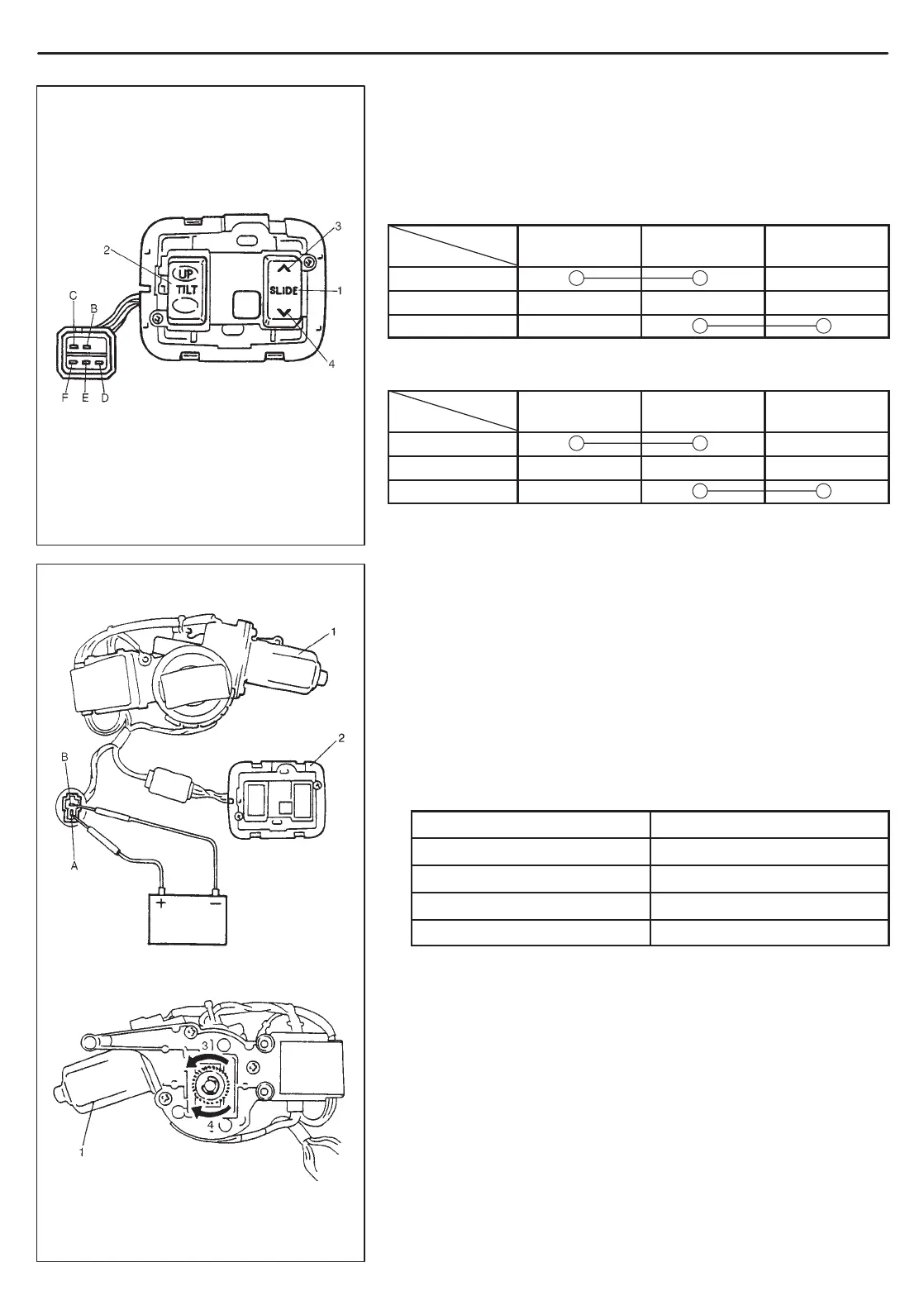

POWER SLIDING ROOF (IF EQUIPPED)
INSPECTION
SLIDING ROOF SWITCH
Check switch for continuity between terminals as shown below.
Slide Switch (1)
OPEN
OFF
CLOSE
Tilt Switch (2)
UP
OFF
DOWN
SLIDING ROOF MOTOR ASSEMBLY
1) Remove head lining. Refer to Section 9 for detail.
2) Remove sliding roof motor assembly (1).
3) Connect known-good sliding roof switch (2) to sliding roof motor
assembly.
4) Connect 12 V battery positive terminal to terminal “A” of motor
assembly (1) and battery negative terminal to terminal “B” of mo-
tor assembly (1).
5) Check that the sliding roof motor (1) runs according to the move-
ment of the sliding roof switch (2).
Sliding Roof Switch
Motor
Tilt up turns left
Tilt down turns right
Slide open turns right
Slide close turns left
If motor does not operate as above, replace sliding roof motor
assembly (1).
