YH4
GRAND
VITARA

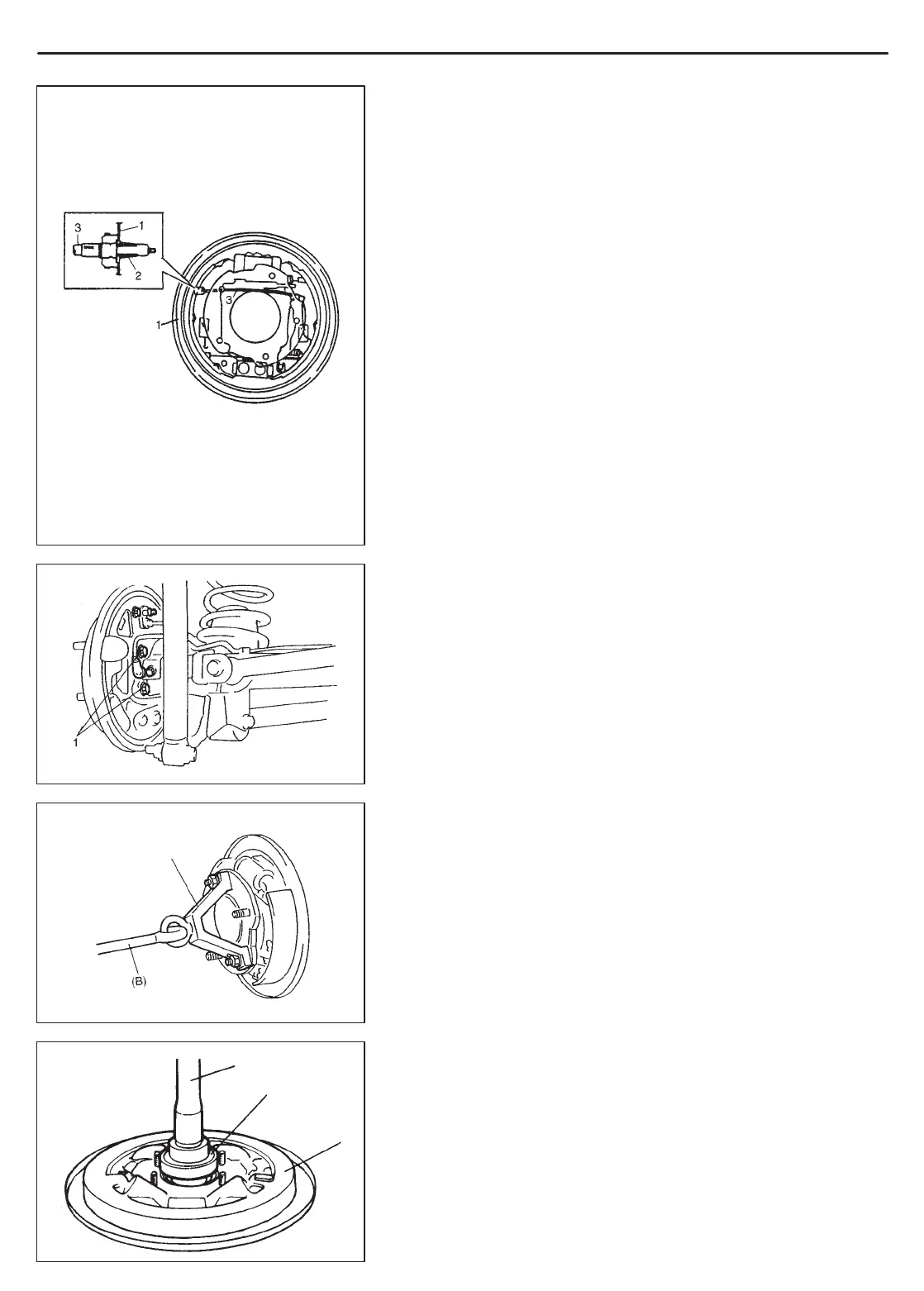

5C-14 PARKING AND REAR BRAKE
1
2
3
1. Brake back plate
2. Cable cap
3. Brake cable
1. Wheel bearing retainer nut
1. Rear axle shaft
2. Wheel bearing
3. Brake back plate
(A)
BRAKE BACK PLATE
REMOVAL
1) Perform steps 1) to 5) of BRAKE DRUM REMOVAL.
2) Perform steps 2) to 4) of BRAKE SHOE REMOVAL.
3) Perform steps 3) and 4) of WHEEL CYLINDER REMOVAL.
4) Remove cable from brake back plate by squeezing parking
brake cable cap.
5) Drain rear differential gear oil.
6) Remove wheel bearing retainer nuts from rear axle housing.
7) Using special tools, draw out rear axle shaft with brake back
plate.
Special Tool
(A): 09943-35512
(B): 09942-15510
8) Remove brake back plate from rear axle shaft.
To Next Page
