YH4
GRAND
VITARA
(a)
(a)
1. Bolt
2. Washer
3. Lateral rod
1. Nut
1

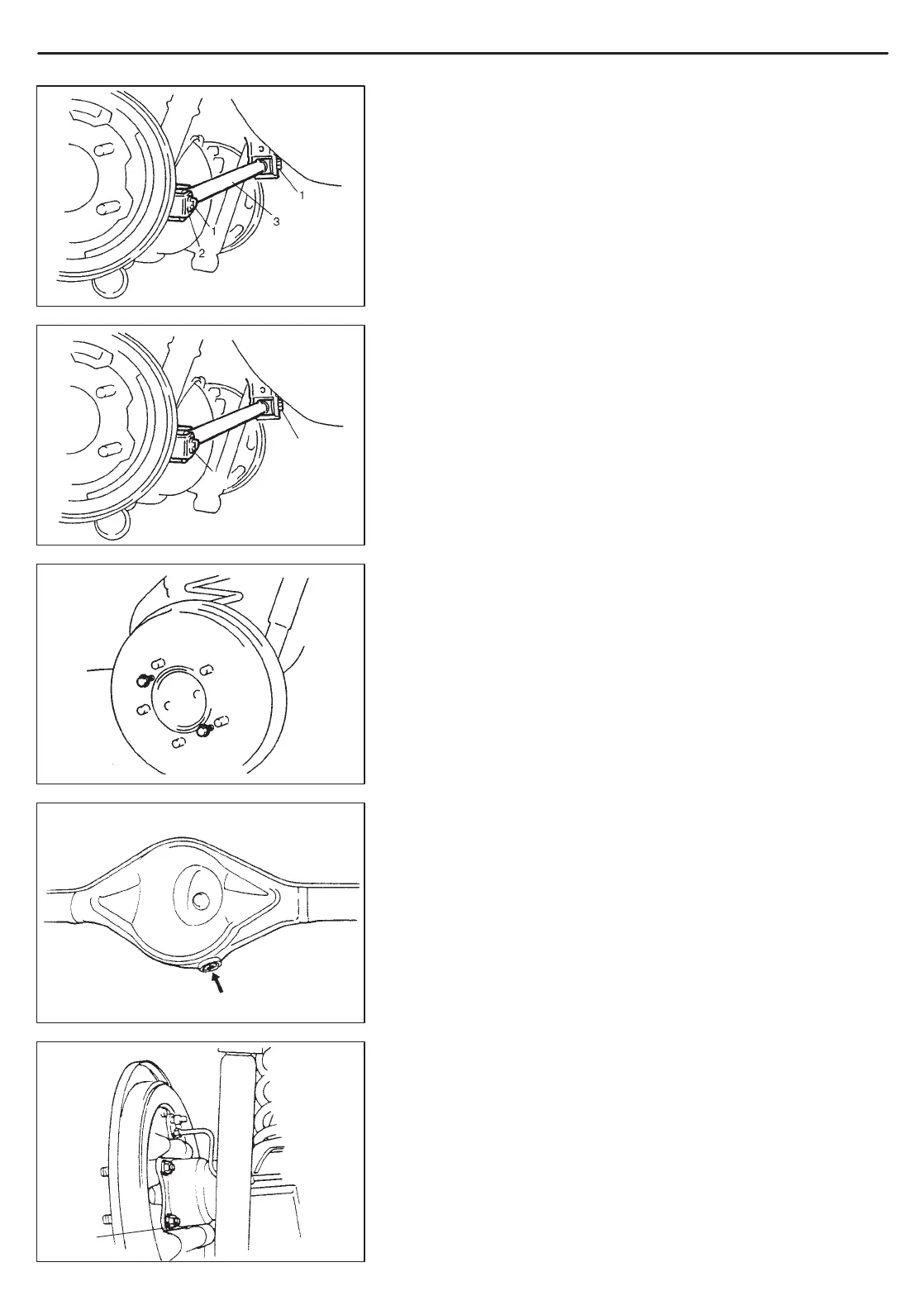

3E-10 REAR SUSPENSION
LATERAL ROD
REMOVAL
1) Hoist vehicle.
2) Remove lateral rod mounting bolts.
3) Remove lateral rod.
INSTALLATION
1) Install lateral rod to rear axle, and vehicle body.
2) Lower hoist.
3) Tighten lateral rod mounting bolts to specified torque.
Tightening Torque
(a): 90 N
.
m (9.0 kg-m, 65.0 lb-ft)
REAR AXLE SHAFT AND WHEEL BEARING
REMOVAL
1) Remove rear brake drum. For details, refer to REAR BRAKE
DRUM REMOVAL in SECTION 5C.
2) Drain gear oil from rear axle housing by loosening drain plug.
3) Remove rear wheel bearing retainer nuts from axle housing.
To Next Page
