YH4

GRAND

VITARA

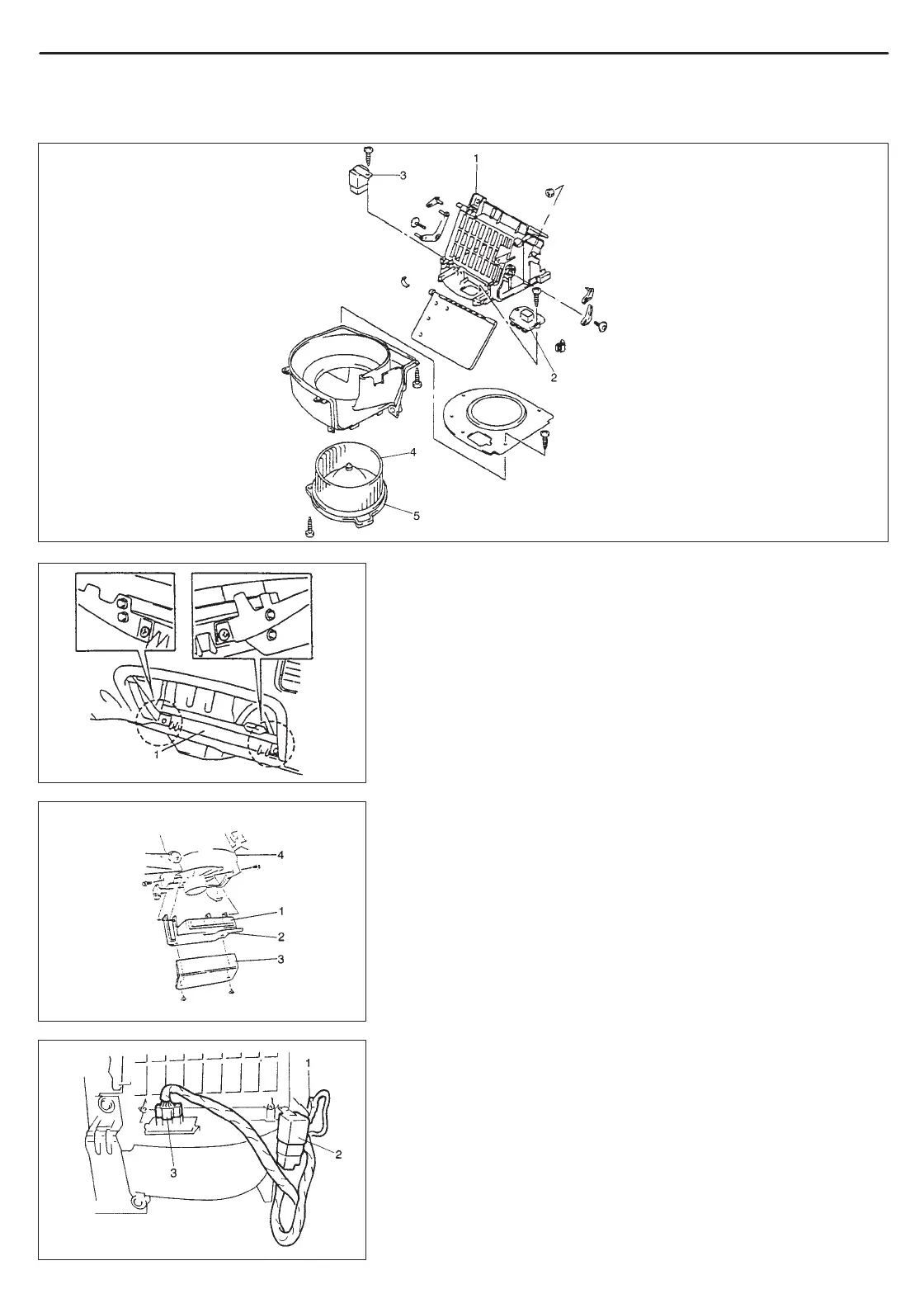

HEATER AND VENTILATION 1A-5

1. Blower unit

2. Blower motor resistor

3. Blower motor relay

4. Blower fan

5. Blower motor

3. Cover

ON-VEHICLE SERVICE

BLOWER UNIT

REMOVAL

1) Disconnect negative (–) cable at battery.

2) Disable air bag system, if equipped. Refer to DISABLING AIR

BAG SYSTEM in Section 10B.

3) Remove passenger lower member (1).

4) Remove ECM (1) with bracket (2) from blower motor unit (4).

5) Disconnect blower motor (1), blower motor relay (2) and resistor

lead wires (3) at couplers.
