YH4
GRAND
VITARA
Terminal
Wire Color
Switch Position
Terminal
Switch Position
Wire Color
HEAD
OFF
HI
PASS
SMALL
8B-6 LIGHTING SYSTEM
ON-VEHICLE SERVICE
HEADLIGHTS

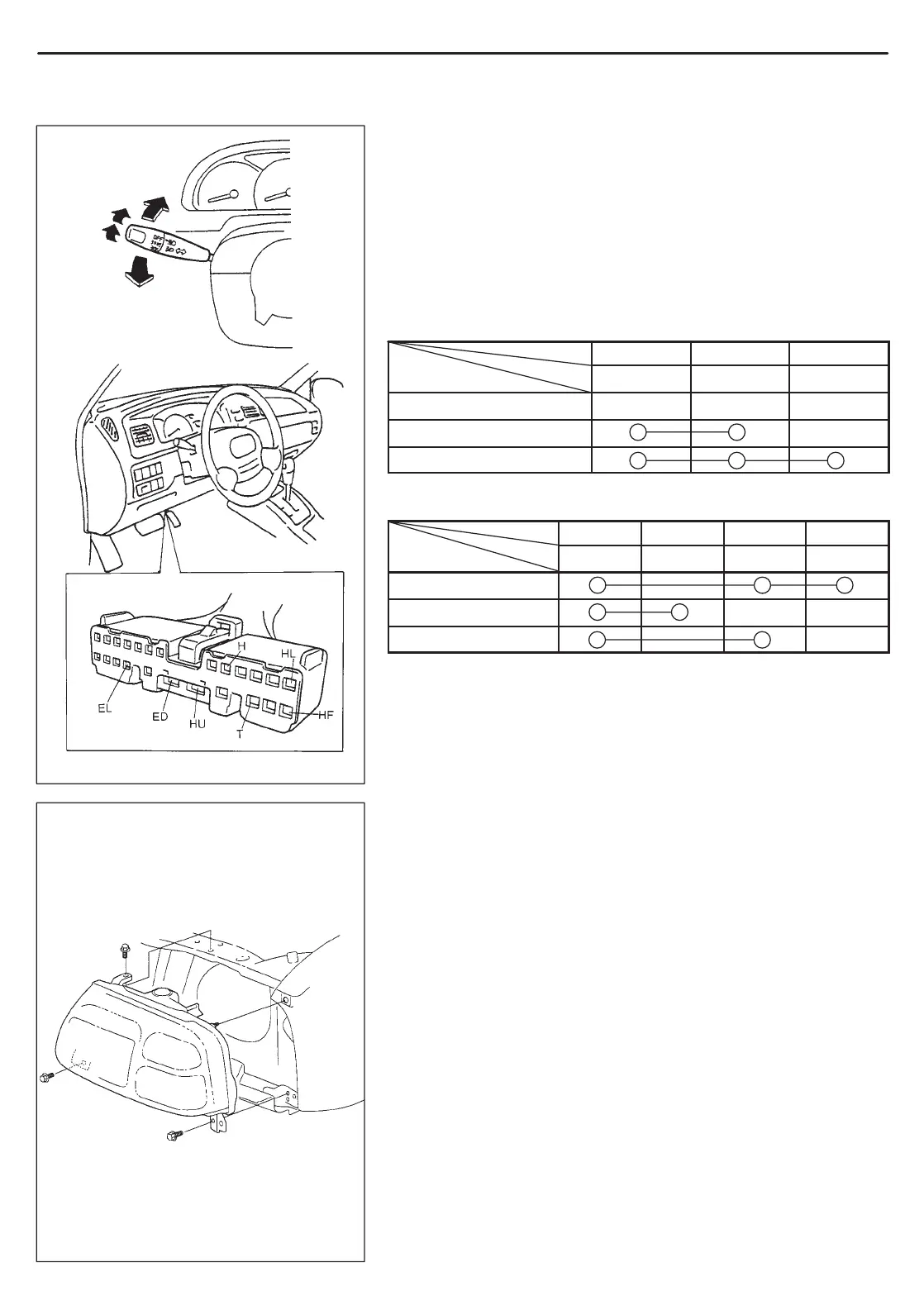

HEADLIGHT SWITCH (IN COMBINATION SWITCH)
INSPECTION
1) Disconnect negative cable at battery.
2) Disconnect combination switch lead wire coupler.
3) Check for continuity between terminals at each switch position
shown below. If check result is not as specified, replace switch.
Lighting Switch
EL T H
W G R
OFF
SMALL
HEAD
Dimmer & Passing Switch
ED HL HU HF
W/B R/W R R/B
Passing (PASS)
Low Beam
High Beam (HI)
REMOVAL AND INSTALLATION
For vehicle without air bag system, refer to Section 3C COMBINA-
TION SWITCH, and for vehicle with air bag system, refer to Section
3C1 CONTACT COIL AND COMBINATION SWITCH ASSEMBLY.
REMOVAL
1) Disconnect negative cable at battery.
2) Remove front grille.
3) Disconnect harness and couplers from headlight assembly.
4) Remove three bolts and pull headlight assembly off vehicle.
INSTALLATION
Reverse removal procedure for installation.
Make sure to follow HEADLIGHT AIMING WITH SCREEN and aim
headlight after installation.
