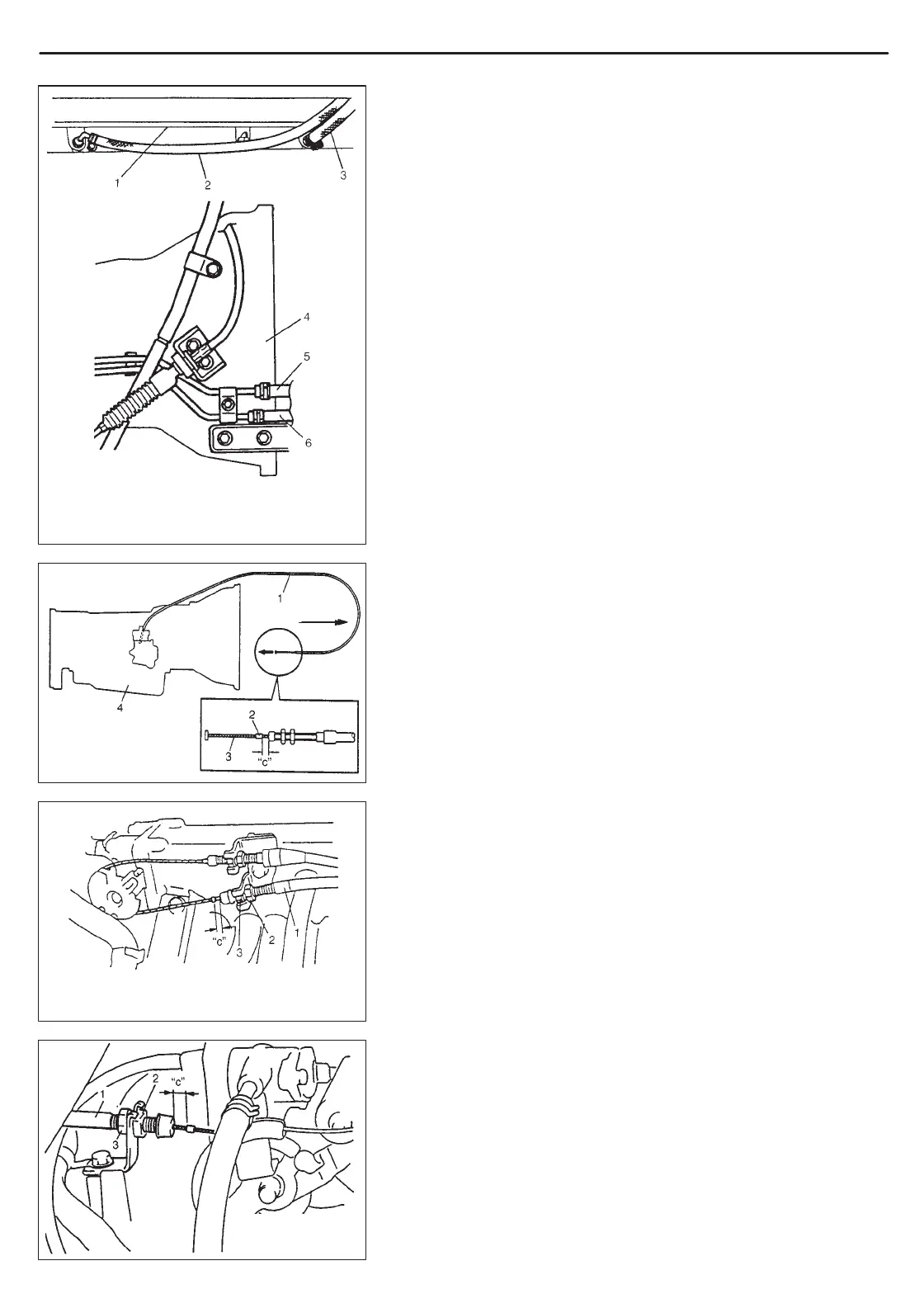

1. Radiator
2. Inlet hose (Outlet from oil cooler)
3. Outlet hose (Inlet to coil cooler)
4. Converter housing
5. Outlet hose
6. Inlet hose
1. A/T throttle cable
2. Adjusting nut
3. Lock nut
1. A/T throttle cable
2. Adjusting nut
3. Lock nut
G16/J20
H25
1. A/T throttle cable
2. Stopper
3. Inner cable
4. A/T assembly
R100 mm
(3.94 in.)
AUTOMATIC TRANSMISSION (4 A/T) 7B1-61
OIL COOLER HOSES
When replacing them, be sure to note the followings.
to replace clamps at the same time.
to insert hose as far as its limit mark.
to clamp hose securely.
A/T THROTTLE CABLE
ADJUSTMENT
1) Pull inner cable by force of 2 N (0.2 kg, 0.45 lb) or less to be no
slack of inner cable with A/T throttle cable curved as shown in
the figure.
2) Fix stopper to inner cable with clearance “c”.
Clearance “c” : 0.8 – 1.5 mm (0.03 – 0.06 in.)
3) For G16/J20 engines
a) Check clearance “c”. If it is out of specifications, adjust it by
turning cable adjusting nut.
Clearance “c” : 0.8 – 1.5 mm (0.03 – 0.06 in.)
b) Tighten lock nut securely.
For H25 engine
a) Warm up engine and transmission to normal operating tem-
perature.
b) Make sure that accelerator cable is adjusted as specified.
c) With throttle valve closed, check clearance “c” which should
be within the following specification.
Clearance “c” : 0.8 – 1.5 mm (0.03 – 0.06 in.)
If it is out of specification, adjust it by turning cable adjusting nut.
