3. Compressor and condenser cooling fan fuse
1B-48 AIR CONDITIONING (OPTIONAL)
A/C COMPRESSOR RELAY AND A/C
CONDENSER COOLING FAN RELAY
INSPECTION
1) Disconnect negative (–) cable at battery.

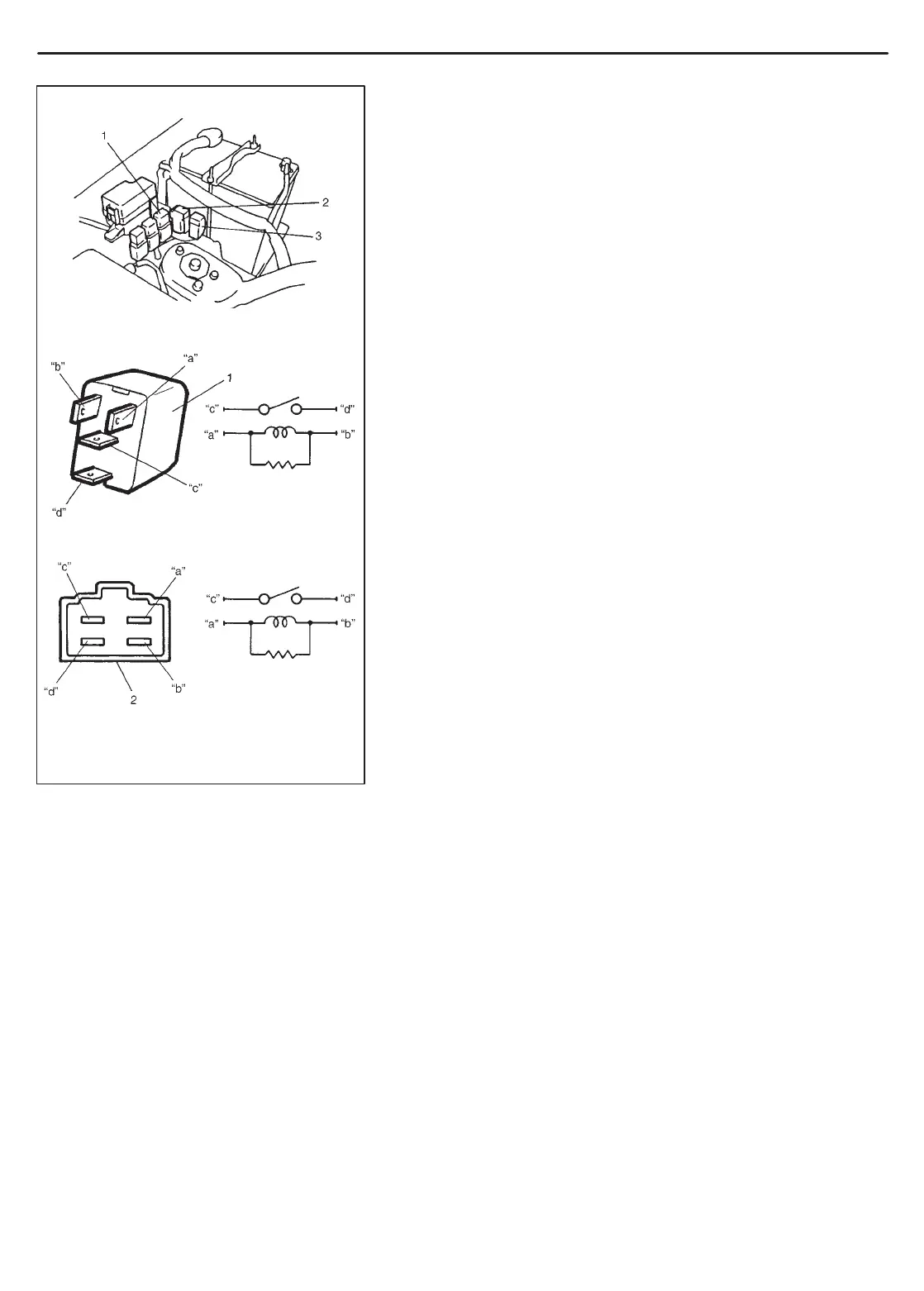

2) Remove condenser cooling fan motor relay (2) and/or compres-
sor relay (1) from vehicle.
3) Check that there is no continuity between terminal “c” and “d”.
If there is continuity, replace relay.
4) Connect battery positive (+) terminal to terminal “b” of relay.
Connect battery negative (–) terminal “a” of relay.
Check continuity between terminal “c” and “d”.
If there is no continuity when relay is connected to the battery,
replace relay.
