YH4
GRAND
VITARA

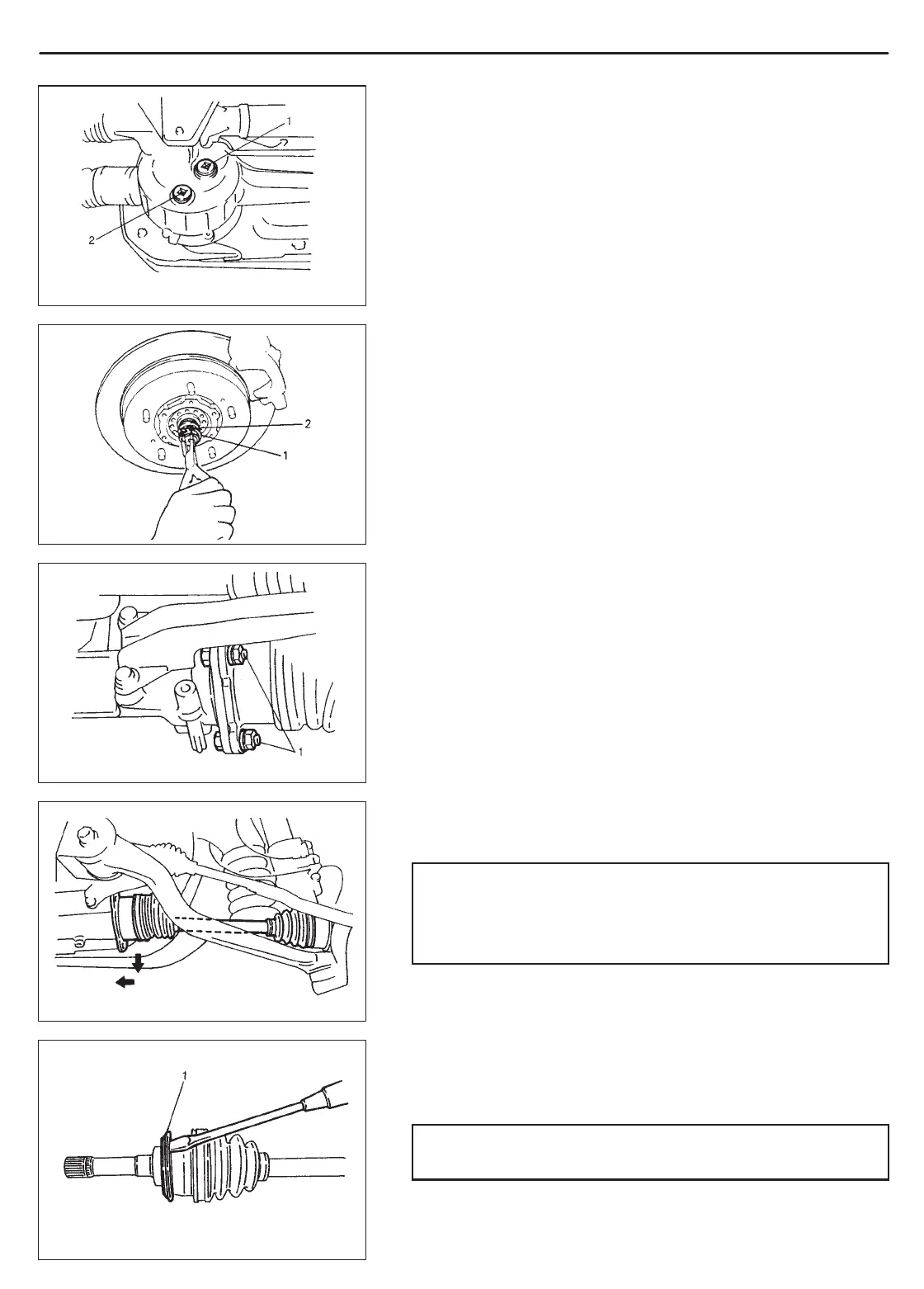

1. Oil filler/level plug
2. Front drain plug
1. Circlip
2. Washer
1. Drive shaft flange
bolts and nuts
1. Oil seal
FRONT DRIVE SHAFT/SHAFT BEARING, OIL SEAL 4A2-3
ON-VEHICLE SERVICE
DRIVE SHAFT
REMOVAL (LEFT SIDE)
1) Hoist vehicle and remove wheel.
2) Remove axle shaft drive flange.
3) Remove drive shaft circlip and front spindle thrust washer.
4) Remove drive shaft flange bolts and nuts.
5) Remove drive shaft assembly to differential side as shown in left
figure.
CAUTION:
To prevent breakage of boots (wheel side and differential
side), be careful not to bring them into contact with other
parts when removing drive shaft assembly.
6) Remove drive shaft thrust washer (vehicle with G16 or J20 en-
gine) from drive shaft and remove drive shaft oil seal as shown
in figure.
CAUTION:
Be careful not to cause damage to drive shaft joint.
