YH4

GRAND

VITARA

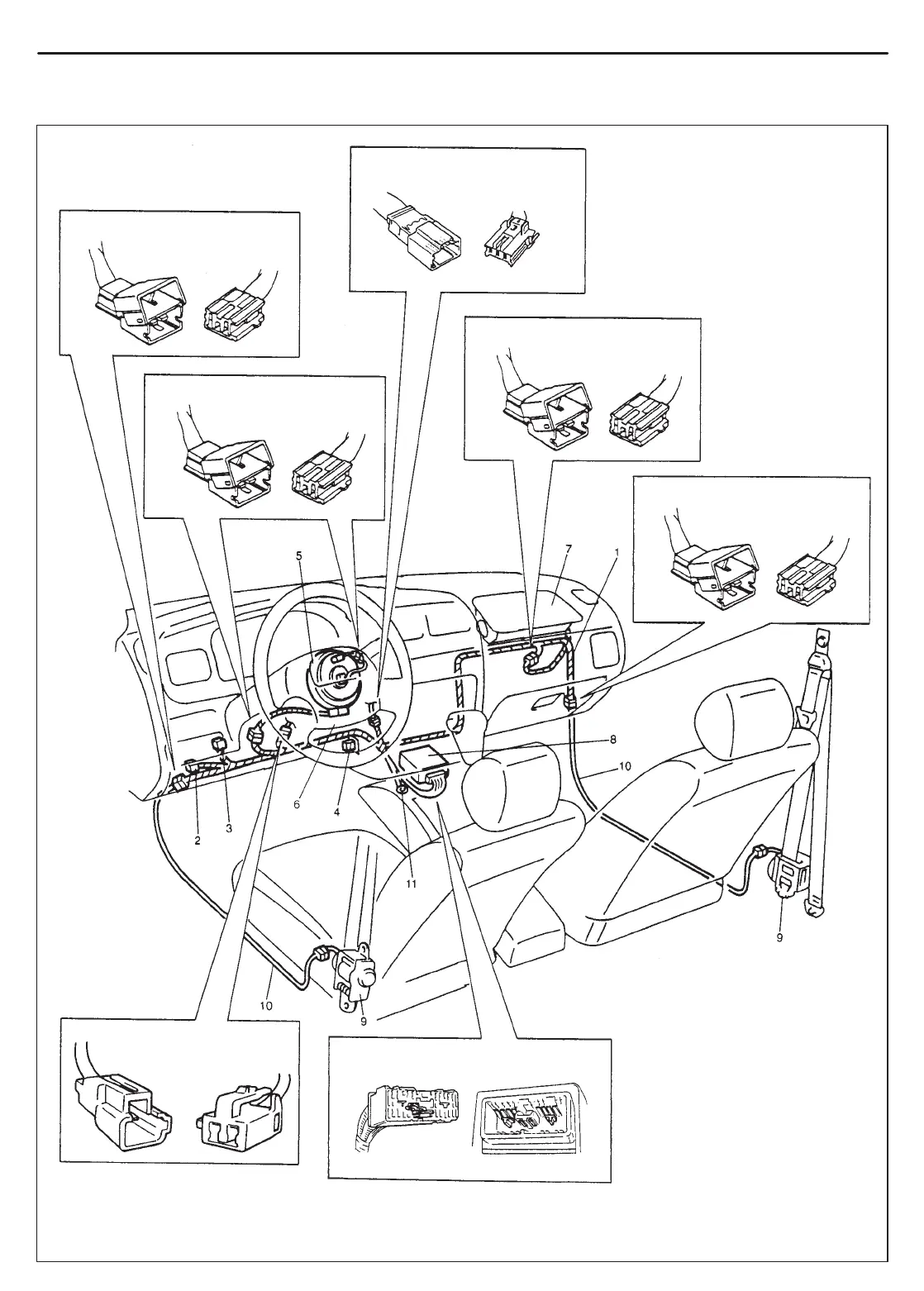

10B-4 AIR BAG SYSTEM

1. Air bag harness

2. “AIR BAG” fuse box

3. “AIR BAG” monitor coupler

4. DLC

5. Contact coil assembly

6. Driver air bag (inflator) module

7. Passenger air bag (inflator) module

8. SDM

9. Seat belt pretensioner

(retractor assembly) (if equipped)

10. Pretensioner harness (if equipped)

11. Ground for air bag system

CONNECTOR “A”

CONNECTOR “C”, “D”

CONNECTOR “B”

CONNECTOR “E”

CONNECTOR “H”

CONNECTOR “F”

CONNECTOR “G”

SYSTEM COMPONENTS AND WIRING LOCATION VIEW AND CONNECTORS
