YH4

GRAND

VITARA

BODY SERVICE 9-77

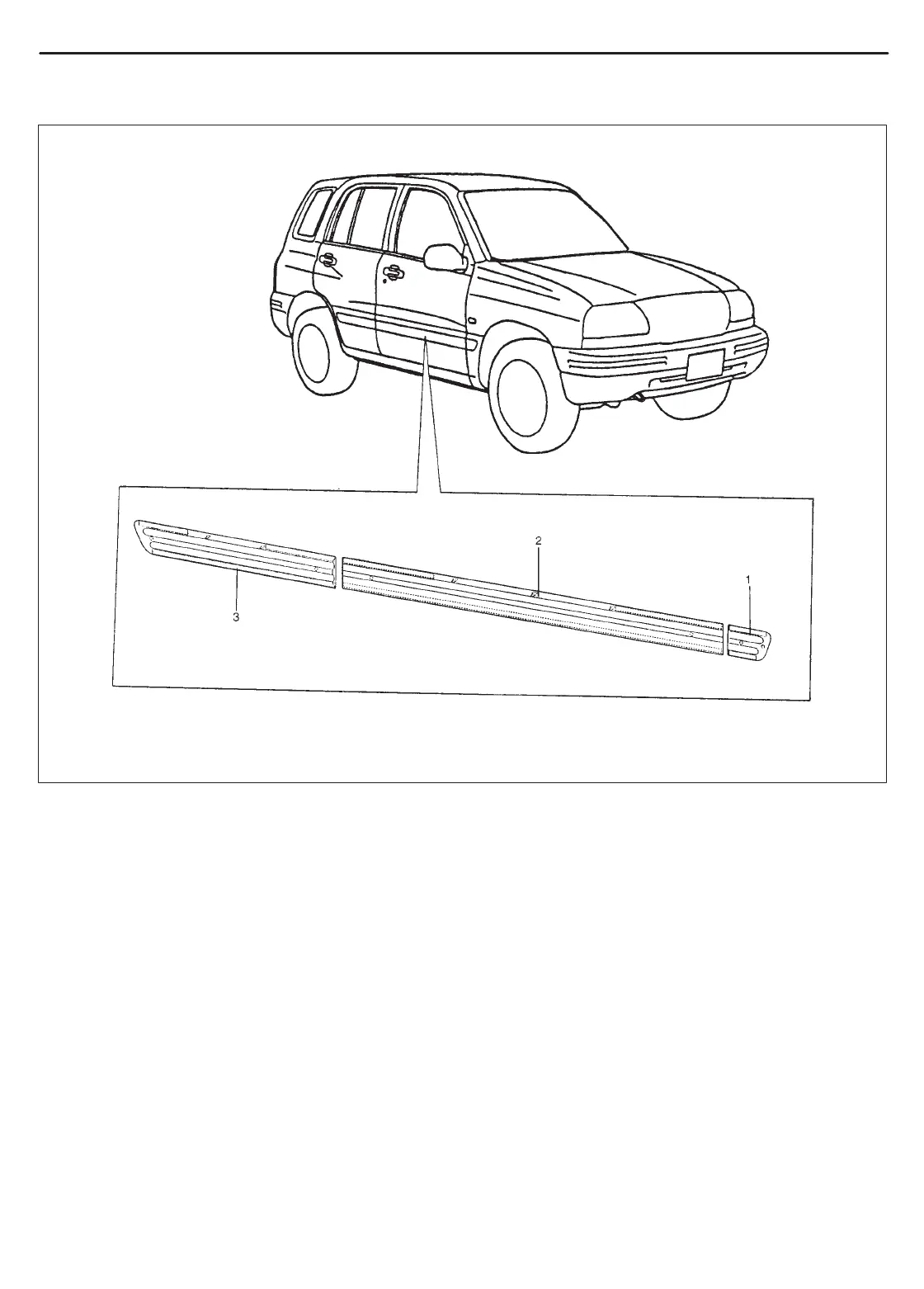

1. Front door molding

2. Rear door molding

3. Front fender molding

SIDE MOLDINGS (IF EQUIPPED)

INSTALLATION

1) Bonding surfaces should be cleaned thoroughly.

2) Install molding by aligning it to clip holes and pulling it to the rear

so that fender or door will not interfere with it when door is

opened.

3) If adequate adhesive force is not available, use urethane adhe-

sive.
