YH4
GRAND
VITARA

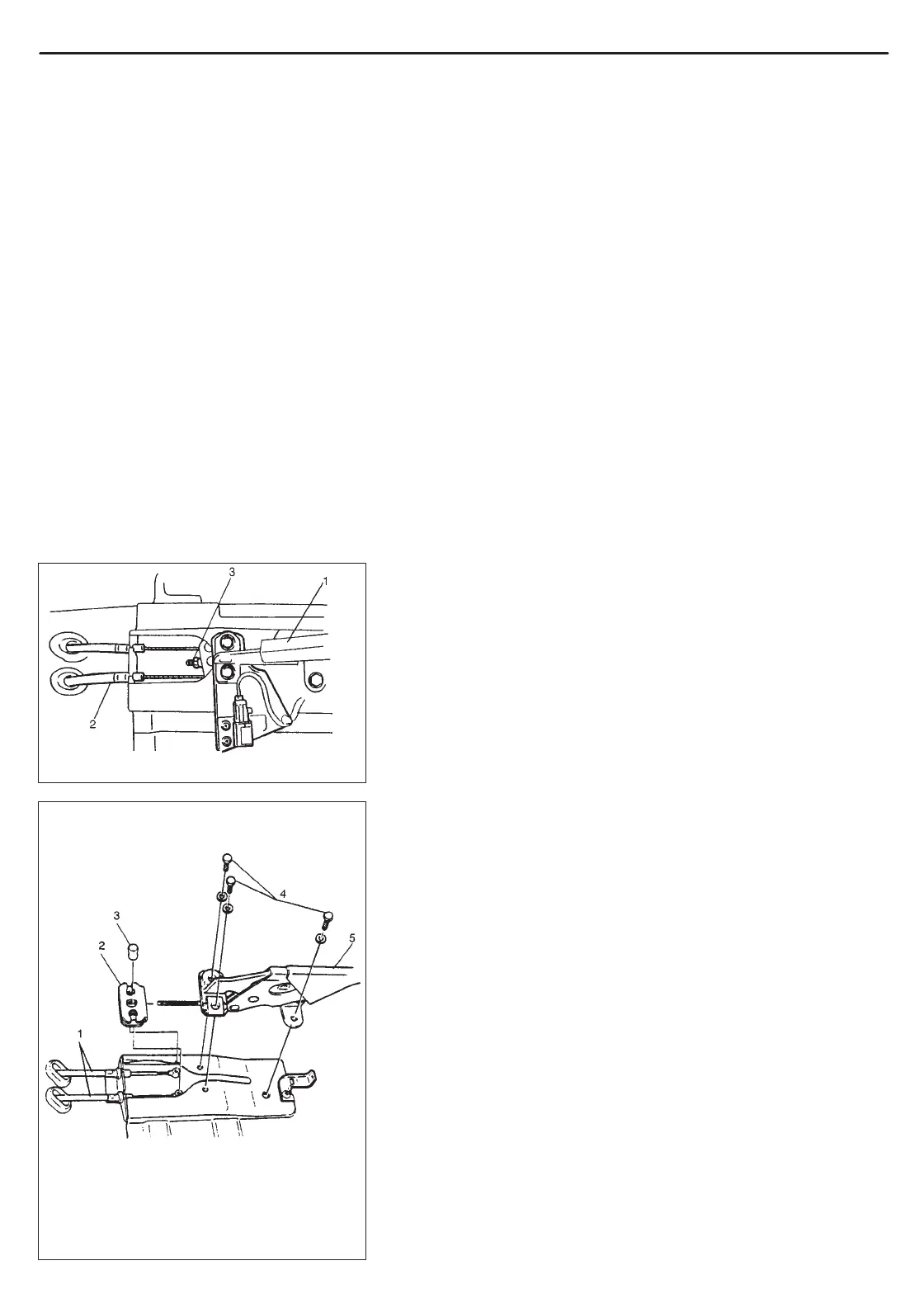

2. Brake cable
3. Locking nut
1. Parking brake cable
2. Equalizer
3. Pin
4. Parking brake lever bolt
5. Parking brake lever assembly
1. Parking
brake lever
PARKING AND REAR BRAKE 5C-3
DIAGNOSIS
Refer to Section 5 (BRAKES).
CHECK AND ADJUSTMENT
Refer to Section 5 (BRAKES).
ON-VEHICLE SERVICE
PARKING BRAKE LEVER
REMOVAL
1) Disconnect negative (–) cable at battery.
2) Block vehicle wheels and release parking brake lever.
3) Remove rear center console box.
4) Disconnect lead wire of parking brake switch at coupler.
5) Remove parking brake cable locking nut.
6) Remove parking brake lever bolts and then remove parking
brake lever assembly from equalizer.
7) Remove equalizer from parking brake cable.
NOTE:
Don’t disassemble parking brake lever switch. It must be re-
moved and installed as a complete switch assembly.
