YH4
GRAND
VITARA
7A-6 MANUAL TRANSMISSION (TYPE 1)
3, (a)

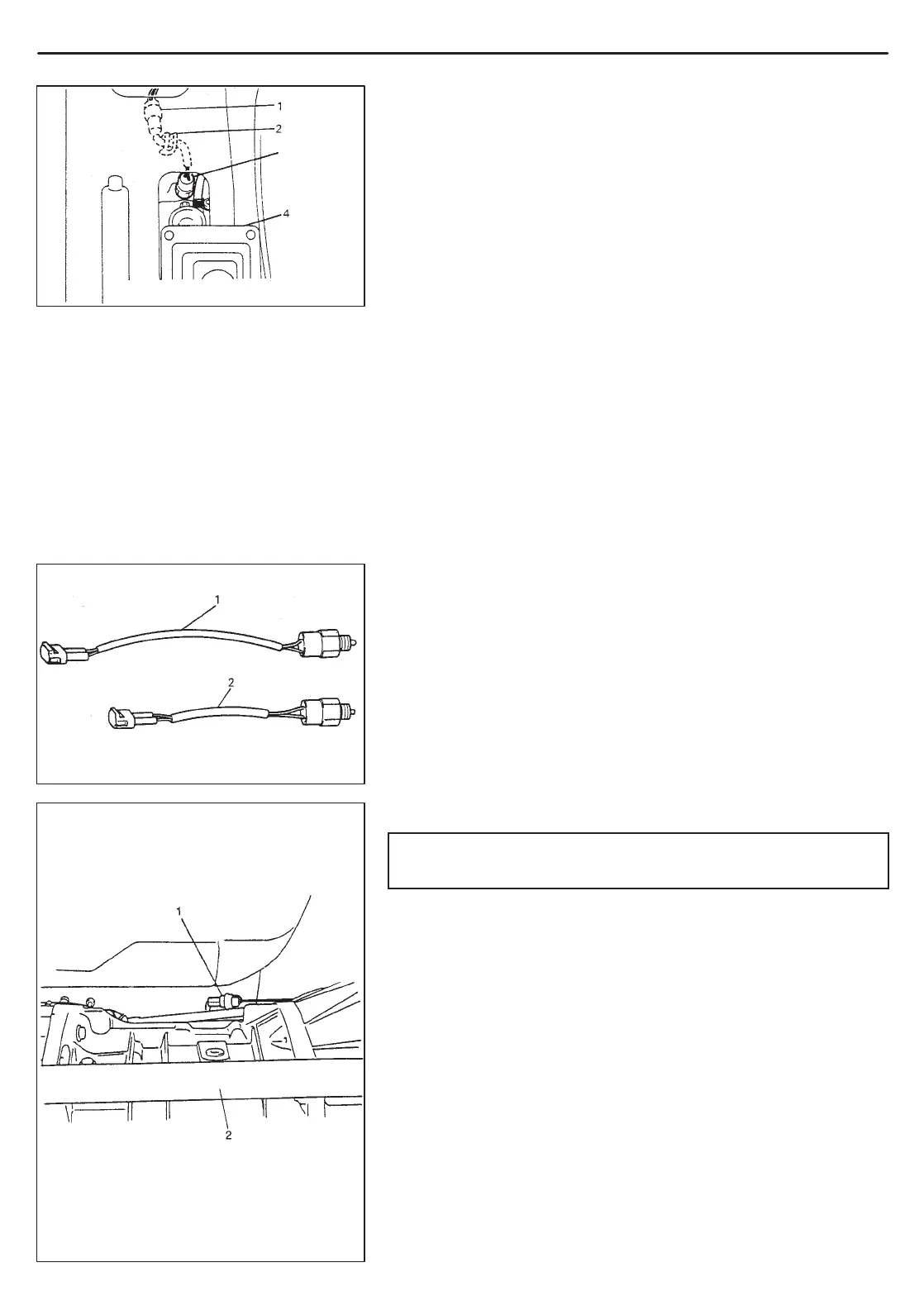

1. Coupler
2. Clamp
3. 4WD switch
4. Boot No. 2
1. Back up light switch
2. 4WD switch
1. Back up light switch coupler
2. Front propeller shaft
SWITCHES
TRANSFER 4WD SWITCH
1) Remove console box and lift transmission control lever boots
No. 2 and No. 3. (Refer to page 7A-4.)
2) Remove transfer control lever boot No. 2, unclamp wiring on
transfer case to free it and pull off coupler.
3) Replace switch and connect as it was.
Tightening Torque
(a): 20 N
.
m (2.0 kg-m, 14.5 lb-ft)
4) Turn ON ignition switch, shift transfer shift control lever to 4WD
position and check that indicator lights. Turn OFF switch after
checking.
NOTE:
When removing and reinstalling switch, use care not to let
dust enter transfer box inside.
Make sure to reset clamp for wiring which is located
where invisible directly.
It is recommended to work on transfer shift control lever
boot No. 1 from underside of vehicle on lift.
Identify this switch by its leg part which is different for that
of back up light switch.
BACK UP LIGHT SWITCH
WARNING:
Refrain from work while exhaust center pipe is hot.
REMOVAL AND INSTALLATION
NOTE:
When replacing switch, use care not to let dust enter transmis-
sion through switch hole.
1) Lift up vehicle.
2) Remove coupler(s) for switch wiring.
To Next Page
