YH4
GRAND
VITARA
3D-6 FRONT SUSPENSION

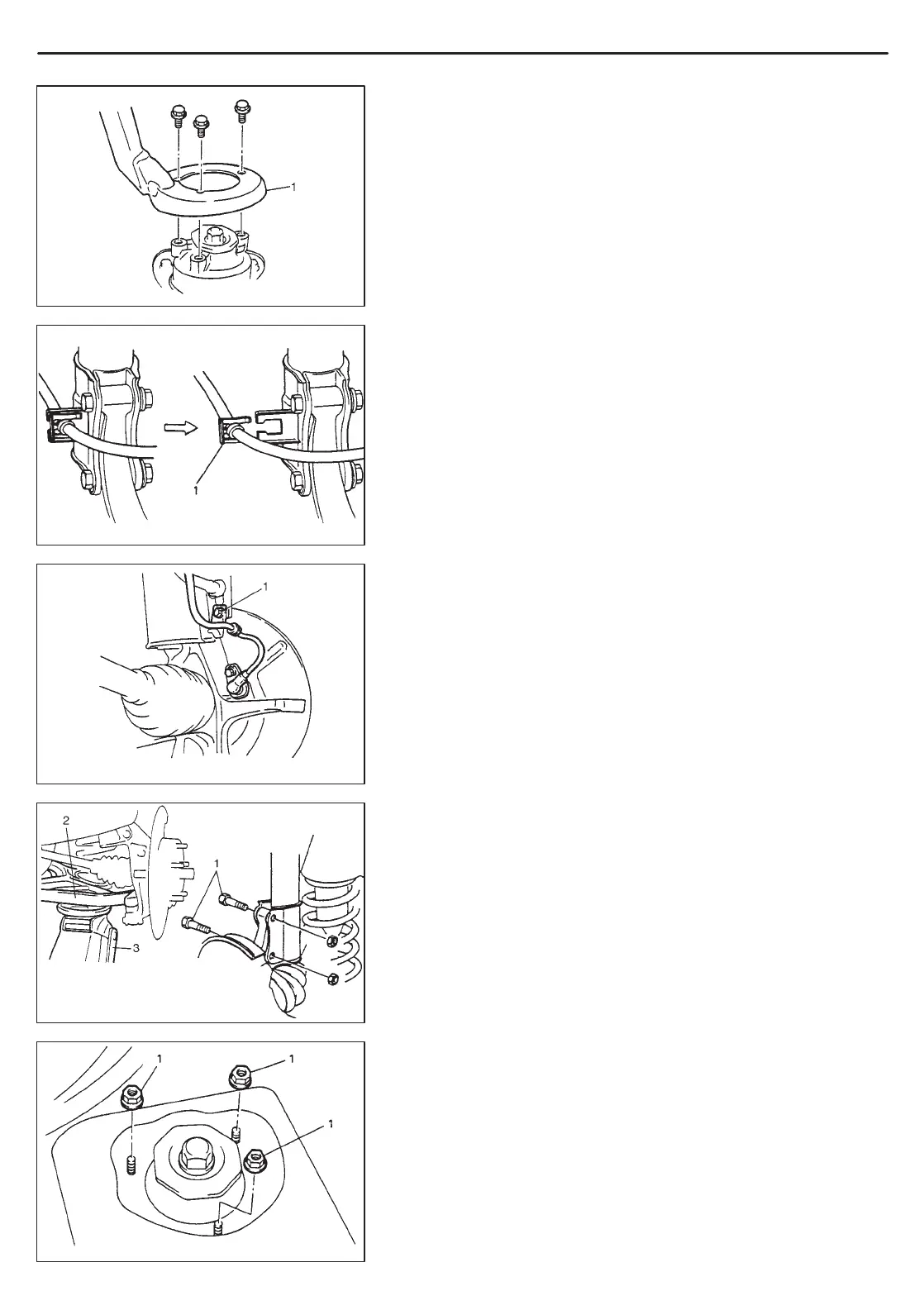

1. Strut tower bar
1. E-ring
1. Front wheel speed sensor harness clamp bolt
1. Strut bracket bolts
2. Lower arm
3. Jack
1. Strut support nuts
STRUT DAMPER
REMOVAL
1) Remove strut tower bar (if equipped).
2) Hoist vehicle, allowing front suspension to hang free.
3) Remove wheel.
4) Remove E-ring securing brake hose and take brake hose off
strut bracket as shown.
5) If equipped with ABS, remove front wheel speed sensor harness
clamp bolt.
6) Remove strut bracket bolts, then support lower arm with jack.
7) Remove strut support nuts.
Hold strut by hand so that it will not fall off.
8) Remove strut.
To Next Page
