YH4
GRAND
VITARA

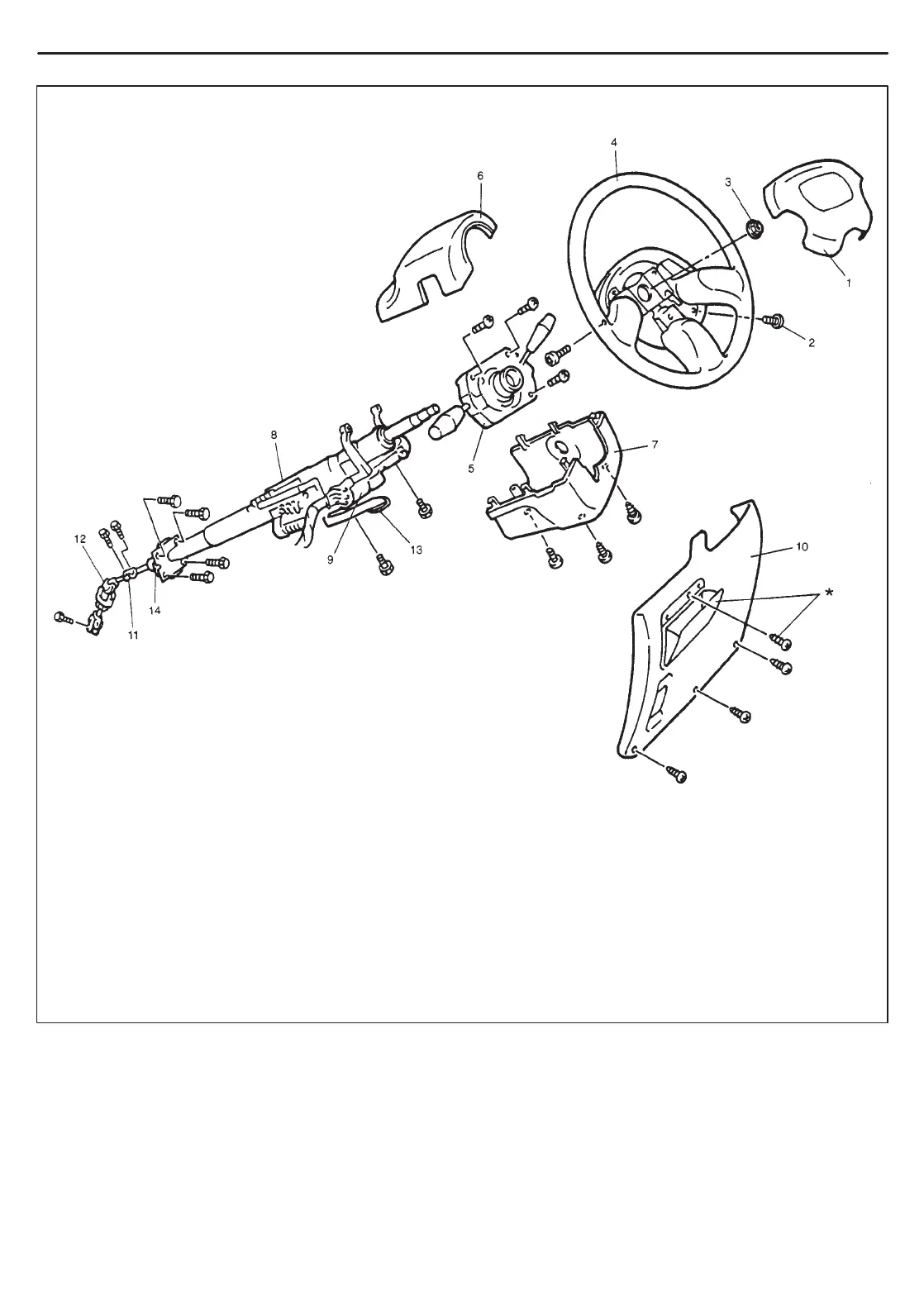

1. Steering wheel pad
2. Steering wheel pad screw
3. Steering wheel nut
4. Steering wheel
5. Combination switch
6. Steering column upper cover
7. Steering column lower cover
8. Steering column assembly
9. Steering lock assembly
10. Steering column hole cover
11. Steering shaft joint
12. Steering lower shaft assembly
13. Adjustable steering column release lever
14. Steering column lower seal
: If equipped
*
3C-2 STEERING WHEEL AND COLUMN
DIAGNOSIS
For diagnosis of the steering wheel, steering column and steering shaft lower assembly, refer to Section 3.
INSPECTION AND REPAIR REQUIRED AFTER ACCIDENT
After an accident, be sure to perform checks, inspections and repairs described under “CHECKING STEERING
COLUMN FOR ACCIDENT DAMAGE” in this section.
