Toyota Orderpicker Model 7BPUE 15 Service Manual Section 7. Component Procedures
Electrical Components Steer Motor

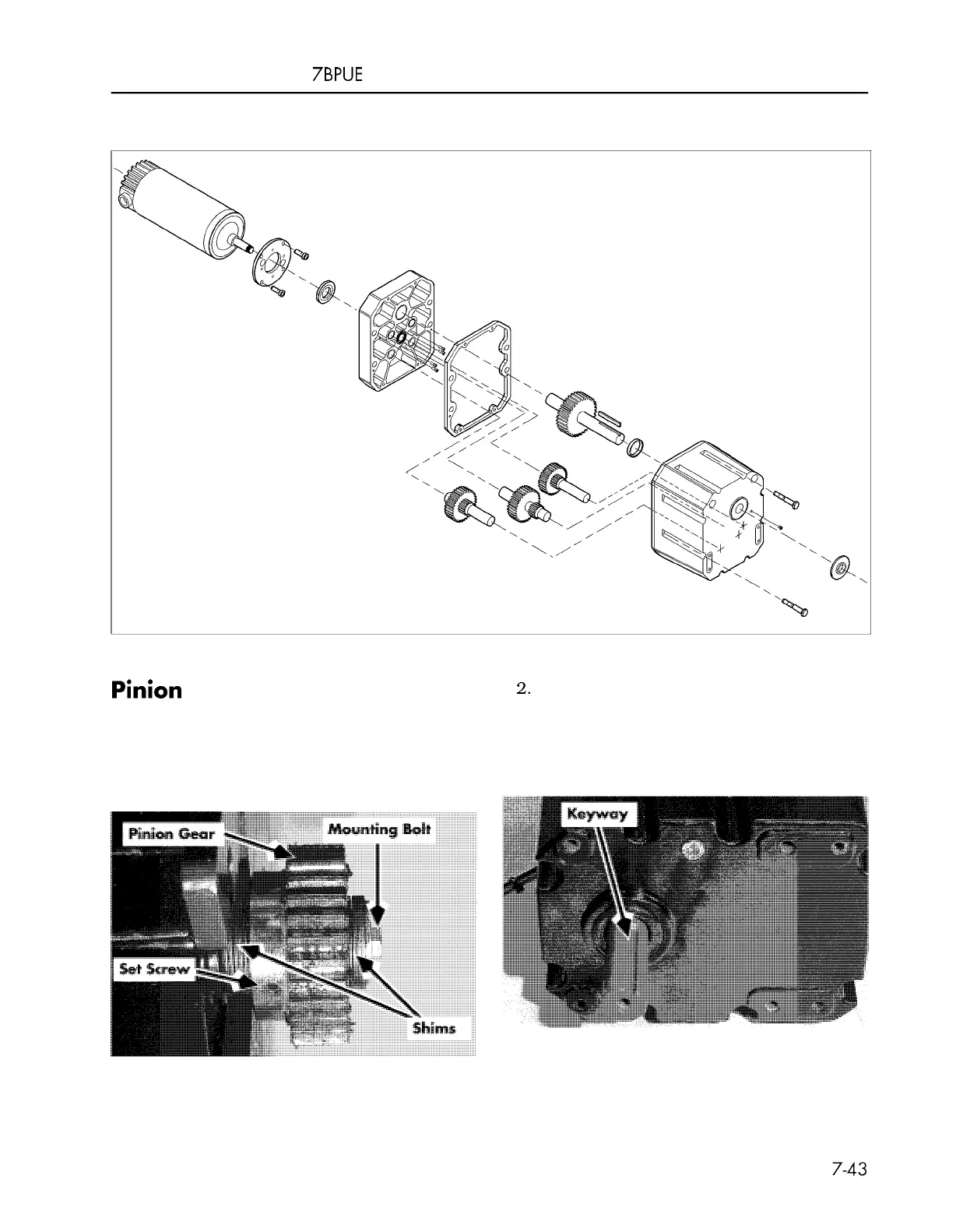

Figure 7 - 63. Steer Motor and Gear Box, Disassembled
Pinion Gear
2. Remove mounting bolt from pinion gear.
See Figure 7
- 64. Note the number of
Replace
shims located above and below the gear.
3. Loosen the set screw and remove the
1. Remove steer motor assembly. See " Steer
pinion gear. See Figure 7
- 64.
Motor
" on page 7 - 42.
Figure 7 - 64. Steer Motor Pinion Gear
Figure 7
- 65. Steer Motor Mounting Shaft
4. Install shims as removed in step 3, pinion
gear with key in keyway, shims as
00700 - CL222 - 05, 1 5 March 2005
