Toyota Orderpicker Model 7BPUE 15 Service Manual Section 5. Troubleshooting
Programmable Maintenance Tool

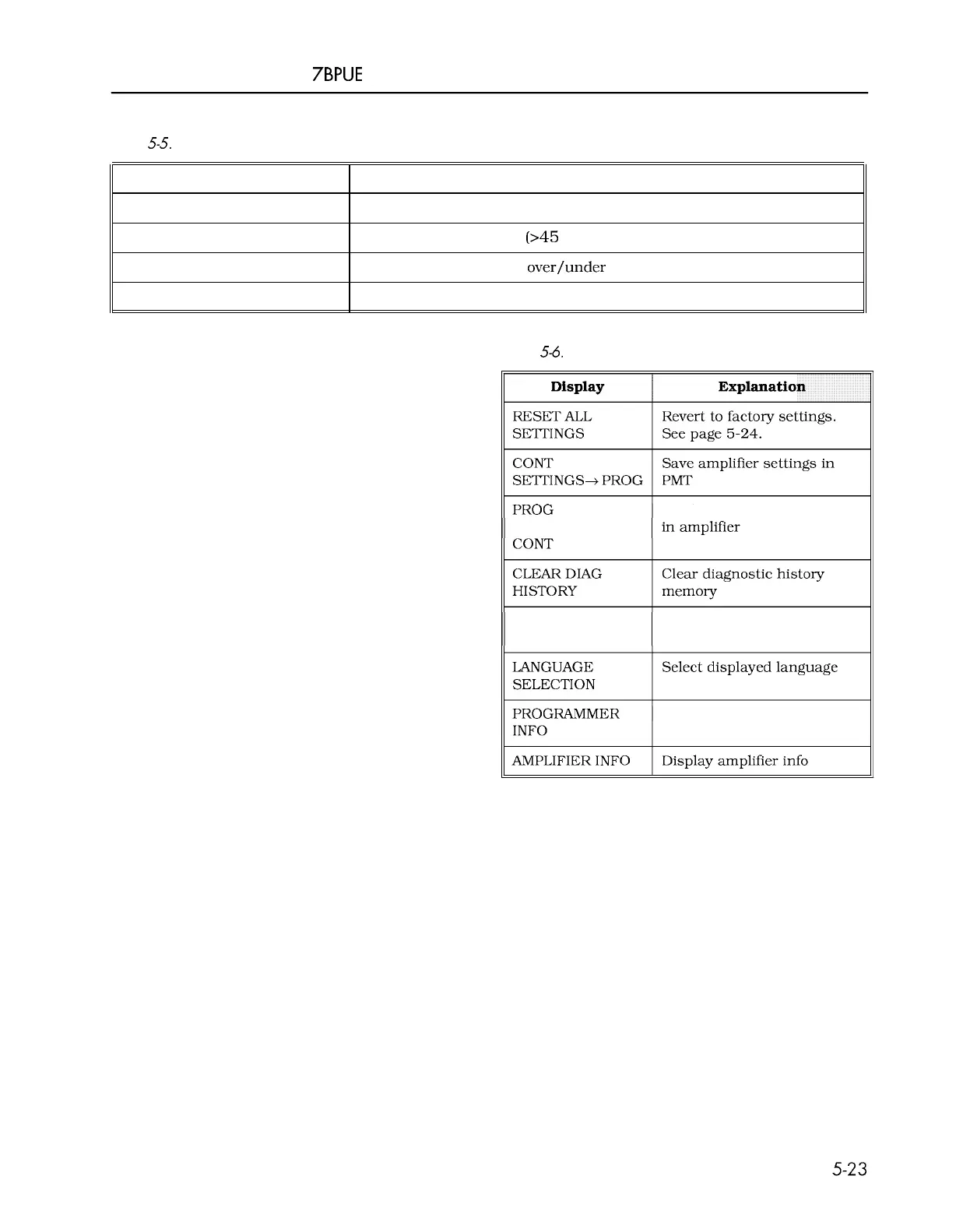

Table 5-5. Diagnostics and Special Diagnostics list
Table
5-6. Special Program Mode
Special Program Mode
Display
NO KNOWN FAULTS
OVERVOLTAGE
THERMAL CUTBACK
THROTTLE FAULT
1
The chart below shows you line items in the
Special Program Mode.
Explanation
No known faults
Battery voltage too high
(>45 volts)
Thermal cutback due to over/under temperature
Throttle wiper input fault
Access
1. Turn the key switch OFF and disconnect
the battery connector.
2. Remove the tractor cover.
3. Connect the PMT to the traction power
amplifier.
4. Connect the battery and turn the key
switch ON.
5. Press and hold the more info key; press
the program key.
6. Scroll through the line items using either
scroll display key until the item you want
to change is the top line on the display.
See Table 5
- 6 on page 5 - 23.
7. Press either change value key until you
reach the value you want.
Load programming settings
SETTINGS+
CONTRAST Adjust display contrast
ADJUSTMENT
Display PMT information
00700 - CL222 - 05, 1 5 March 2005
