Toyota Orderpicker Model 7BPUE15 Service Manual
Section 2. Safety
Tie - Down for Transport
Tie - Down for Transport
a. Install eye - bolts (3/4 in. [19 mm] thread
size) in holes in the bumper. See
Figure 2
- 6.
b. Secure chain ti-on1 ye-bolts to vehicle
bed. See Figure 2 - 7.
4. Strap truck ti-on1 Ijumpcr or guide roller to
tloor of transport
vehicle. See Figure 2-7.
5. Chock tlrive wheel to prevenr rractor-firs1
movement. See Figlire 2 - 7.
6. Place block Ijctwccn ljasclcg and platbrm,

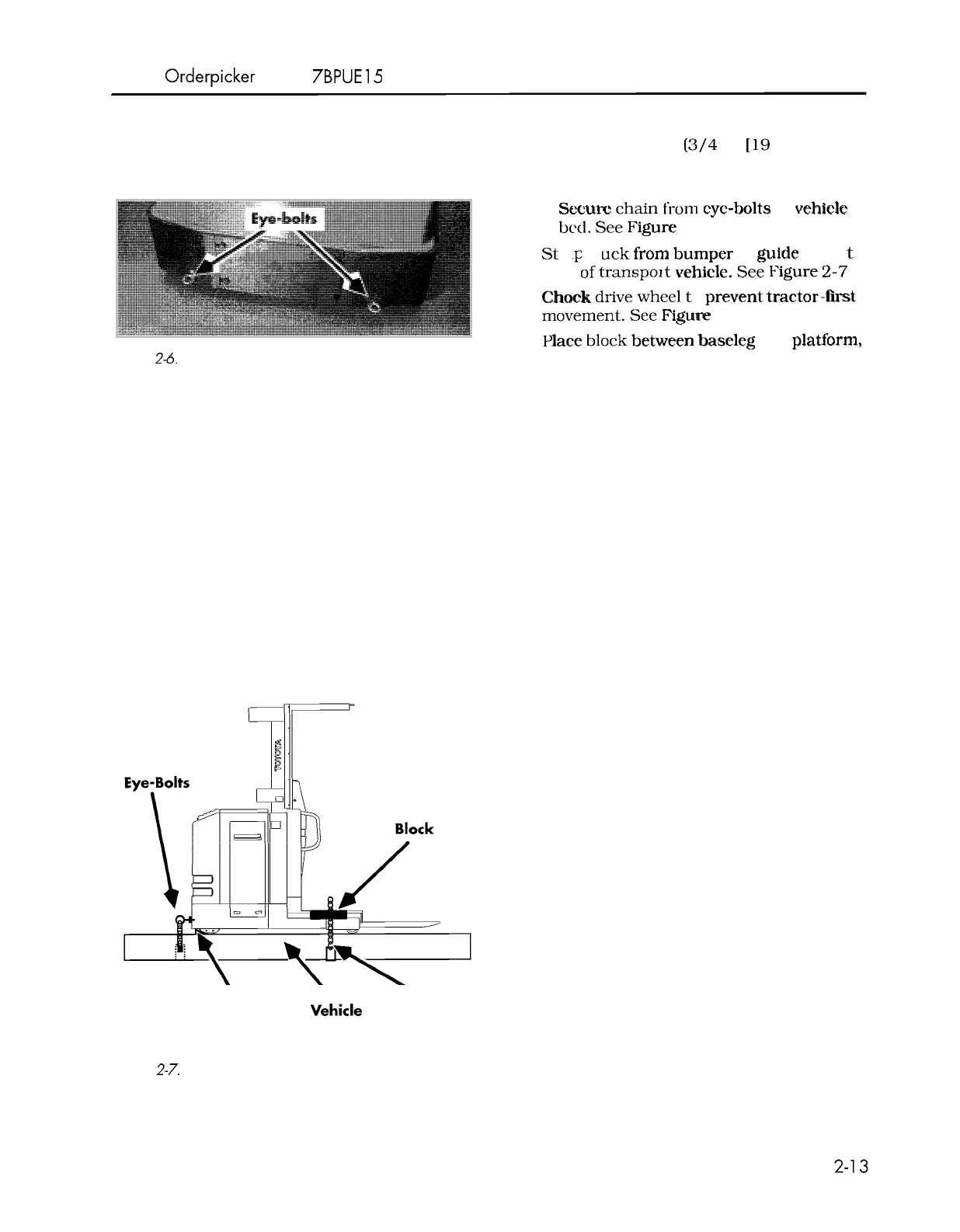

Figure 2-6. Eye - Bolts Installed for Transport
Vertical Transport
To transport this lift truck in an over - the - road
vehicle or rail car, follow these steps:
1. Lower operator platform and locate truck
in center of transport vehicle.
2. Turn key switch OFF and disconnect
battery.
N O T E : If guide rollers are present, place straps
through guide rollers and secure to
floor; proceed to step 4.
3. If guide rollers (used for rail guidance) are
not present:
\ \
Chock
\
Vehicle Strap or
Block Bed Chains
7.5 in. (190.5 cm) from front edge of
platform. See Figure 2
- 7.
7. Position additional adjustable chain or
strap perpendicular to forks over
operator's platform and attach it to vehicle
bed. This will prevent tip
- over during
transportation. See Figure 2
- 7.
Horizontal Transport
1. Remove forks from carriage.
2. Replace cap and screen in hydraulic
reservoir with shipping cap and screws.
3. Band down carriage and battery rollers.
4. Remove dipstick, and plug drive unit.
5. Remove the bottom two bumper plate bolts
(to be replaced during shipping).
6. Use two hoists in conjunction and lay
truck on cradle.
7. Install long bolts through the holes in the
bumper and secure to cradle.
8. Band truck to cradle.
9. Secure forks to cradle below mast.
Figure 2-7.
Tie - Down for Vertical Transport
00700 - CL222 - 05, 1 5 March 2005
