Section 7. Component Procedures
Toyota Orderpicker Model
7BPUE 15 Service Manual
Fuses
Fuses
Electrical Components
Auxiliary
Power Fuses
Replacement
When replacing fuses, make sure fuses are
installed in the proper order. See Figure 7
-
76.

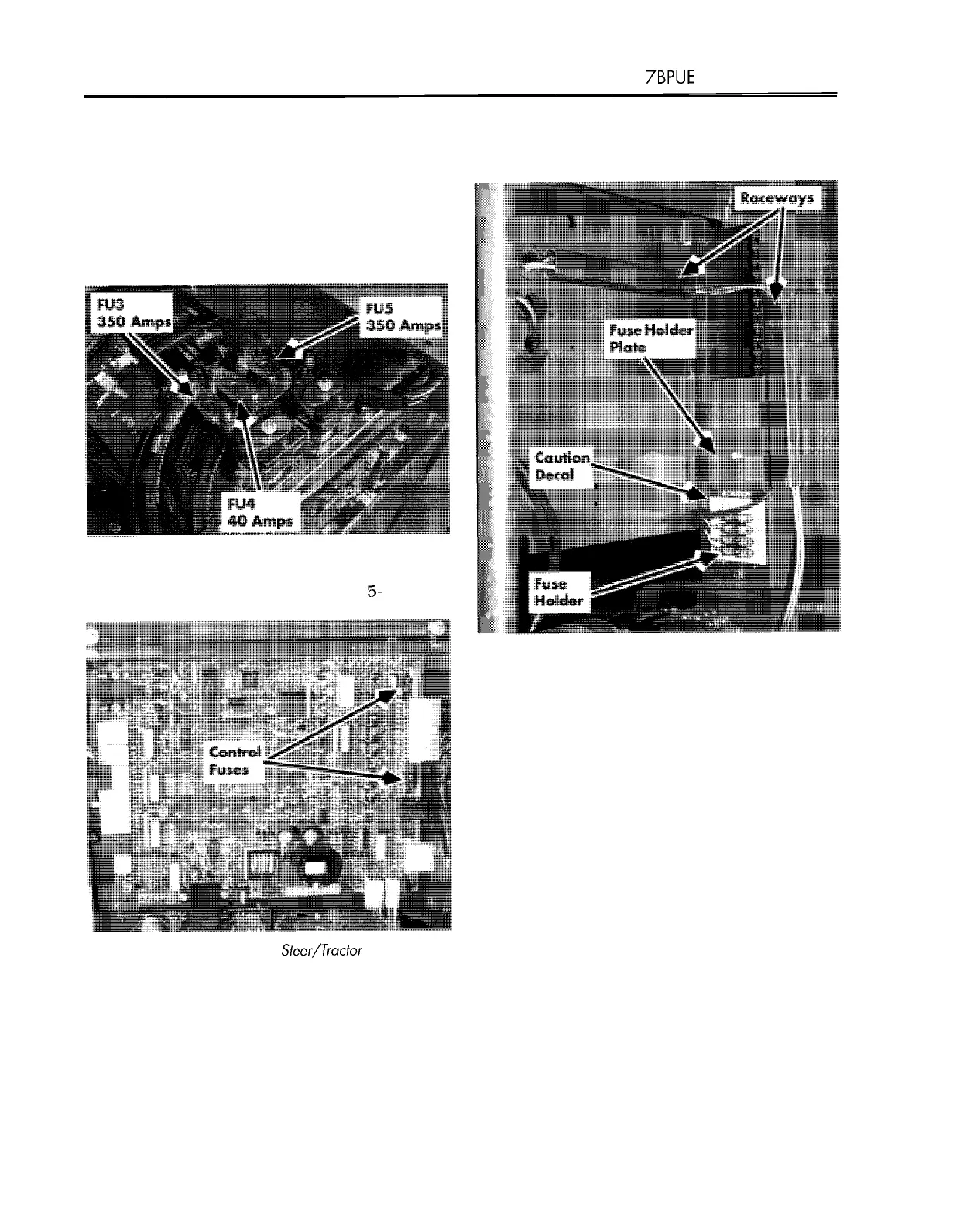

Figure
7
-
76.
Fuse Locations
N
O
T
E
:
Refer also to
"
Fuses
"
on page
5-
15.
Figure
7
-
78.
Fuse Plate Mounting and Cable Routing
Installation
1.
Turn key switch OFF and disconnect
battery.
2.
Remove operator console cover.
3.
Remove the front plate under the console
from the operator platform.
4.
Line up the fuse block on decal and mark
top and bottom holes.
5.
Punch out the holes.
6. Push the fuse block mounting screws
through the holes in the decal.
Figure
7
-
77.
Control Fuses on Steer/Tractor Manager
7.
Line up the screws with the mounting
holes on the plate and adhere the decal to
the plate.
8.
Mount the fuse holder on the caution
decal. Secure with two pan head screws.
See Figure
7
-
79.
00700
-
CL222
-
05,
1
5
March 2005
