Toyota Orderpicker Model 7BPUE 15 Service Manual Section 7. Component Procedures
Mast Section
Pallet Clamp
Pallet Clamp
between the pallet clamp and the left hand
pallet support. Torque the remaining hex
nut to 2 1 ft. lbs. (29 Nm).

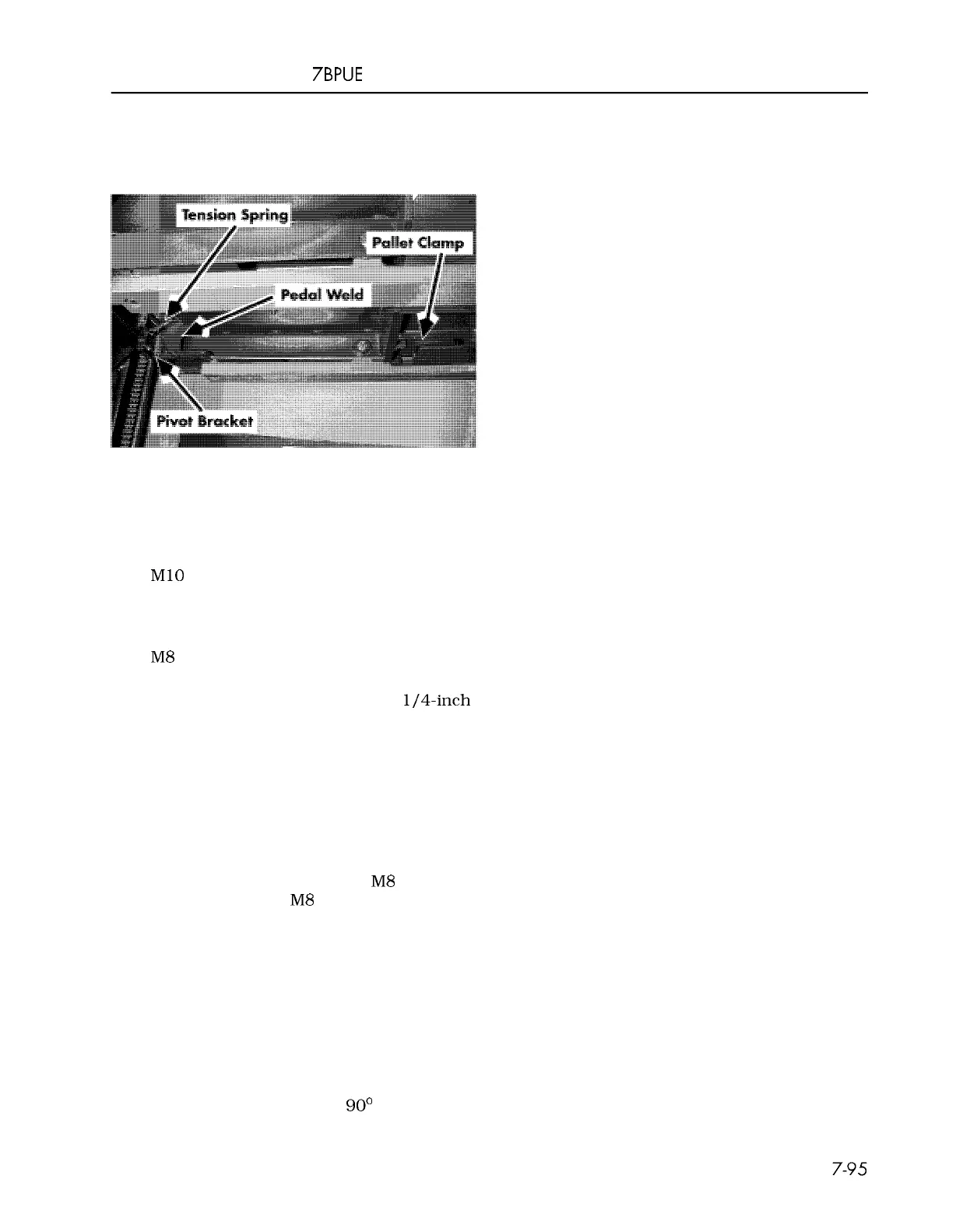

Figure 7 - 145. Pallet Clamp Assembly, Underside
Install
1. Install the pallet clamp assembly on the
platform front plate. Secure it with four (4)
M10 X 20 screws. Torque to 30 ft. lbs. (41
Nm)
.
2. Install the pedal assembly to the platform
main support plate. Secure it with two (2)
M8 X 20 screws. Torque to 15 ft. lbs.
(20 Nm).
3. Hook the tension spring into the 1/4-inch
holes in the pivot bracket and pedal weld
in the pedal assembly. See Figure 7
- 145.
4. To extend the spring so you can connect
the cable assembly, slide a 2
- inch - wide
block between the left hand pallet support
and the pallet clamp on the pallet clamp
assembly.
5. Install the cable bracket on the pedal
assembly. Secure it with the
M8 X 10
shoulder bolt and
M8 hex nut. Torque to
15 ft. lbs. (20 Nm).
6. Place the cable assembly in the cable
bracket and secure with the M6 hex nuts.
Finger
- tighten the hex nut closest to the
pedal mounting and leave the other nut
loose.
7. Remove the 2
- inch block you used in
Step 4.
8. Adjust the hex nut closest to the pedal
mounting until there is a
90' angle
00700 - CL222 - 05, 1 5 March 2005
