Toyota Orderpicker Model 7BPUE 15 Service Manual
Section
8. Wire Guidance
Install Kit Components
bolts for the pre - drilled holes. Connect to
the filter card.

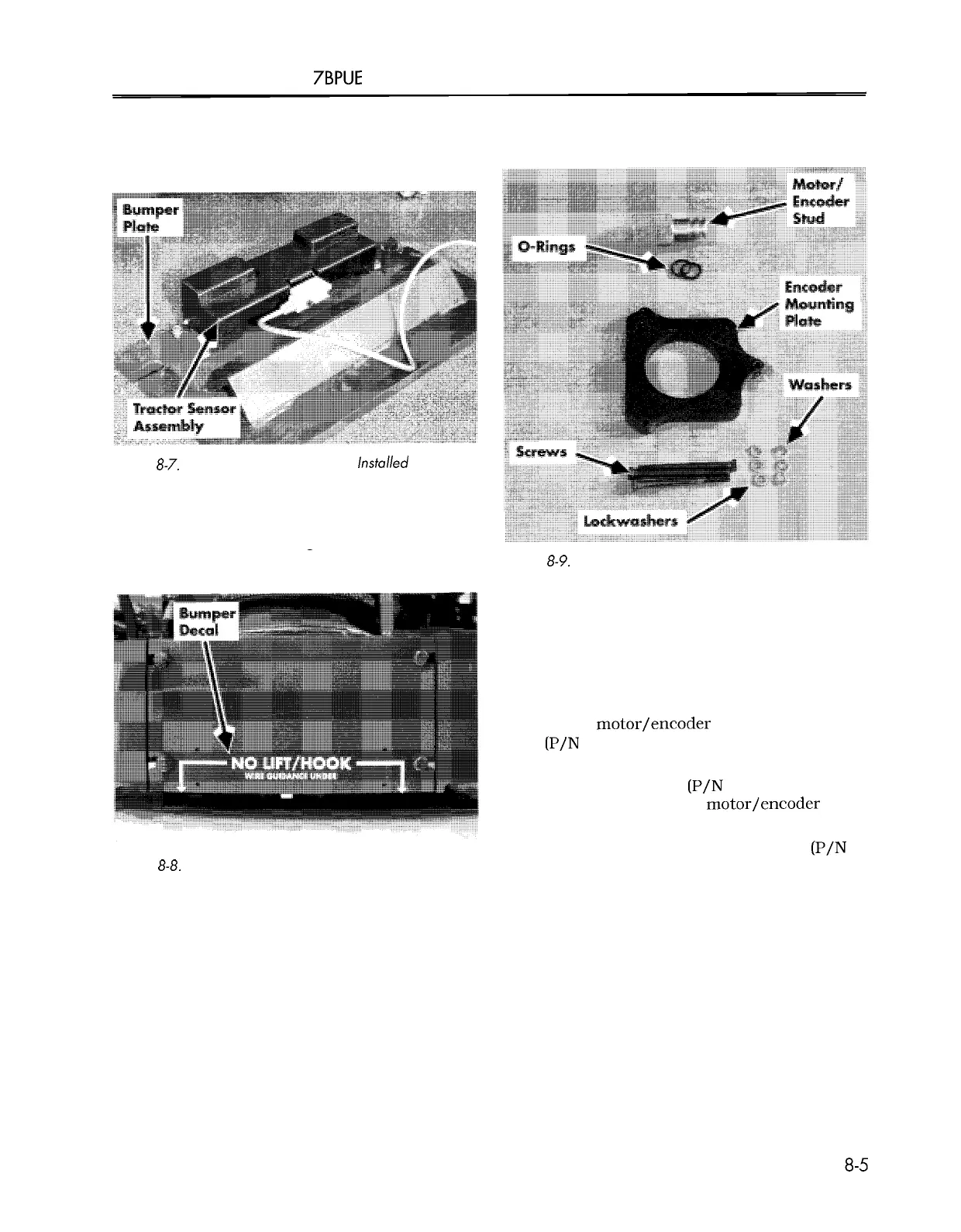

Figure 8-7.
Tractor Sensor Assembly, lnstalled
5. Install the bumper plate.
6. Apply the bumper decal to the bumper
plate as shown in Figure 8
- 8.
-
7. Use additional cable straps as necessary.
Figure 8-9.
Kit Components for Steps 2 - 4
Speed Encoder
N O T E : To perform step 1, we recommend using
an impact gun.
1. Remove the nut off the shaft on top of the
drive motor.
2. Install motor/encoder stud
(P/N 00590 - 45879 - 71) on the shaft.
See Figure 8
- 9.
3. Install the O - rings (P/N 00590 - 45949 - 71)
in the grooves on the
motor/encoder stud.
See Figure 8
- 9.
4. Install the encoder mounting plate
(P/N
Figure 8-8. Bumper Decal, location
00590 - 45855 - 7 1) on top of the brake with
the following hardware in the order listed.
See Figure 8
- 9.
00700 - CL222 - 05, 1 5 March 2005
