Toyota Orderpicker Model 7BPUE 15 Service Manual Section 7. Component Procedures
Mast Section
Lift Chains, Three
-
Stage
Replace
Use extreme care whenever the truck
is
jacked up. Never block the truck
between the mast and the floor. Keep
hands and feet clear from vehicle while
jacking the truck. After the truck
is
jacked, place solid blocks beneath it to
support it. DO NOT rely on the jack
alone to support the truck. See
"
Jacking
Safety
"
on page
2
-
1
1.
Center Cylinder Chain
Lift
Chains, Three
-
Stage
Side Cylinder Chains
1. Lift carriage enough to block between
carriage and inner mast.
2.
Add block.
3. Disconnect chain from chain anchors and
feed off pulley. See Figure 7
-
137 and
Figure 7
-
138.
4.
Replace chain as necessary. See

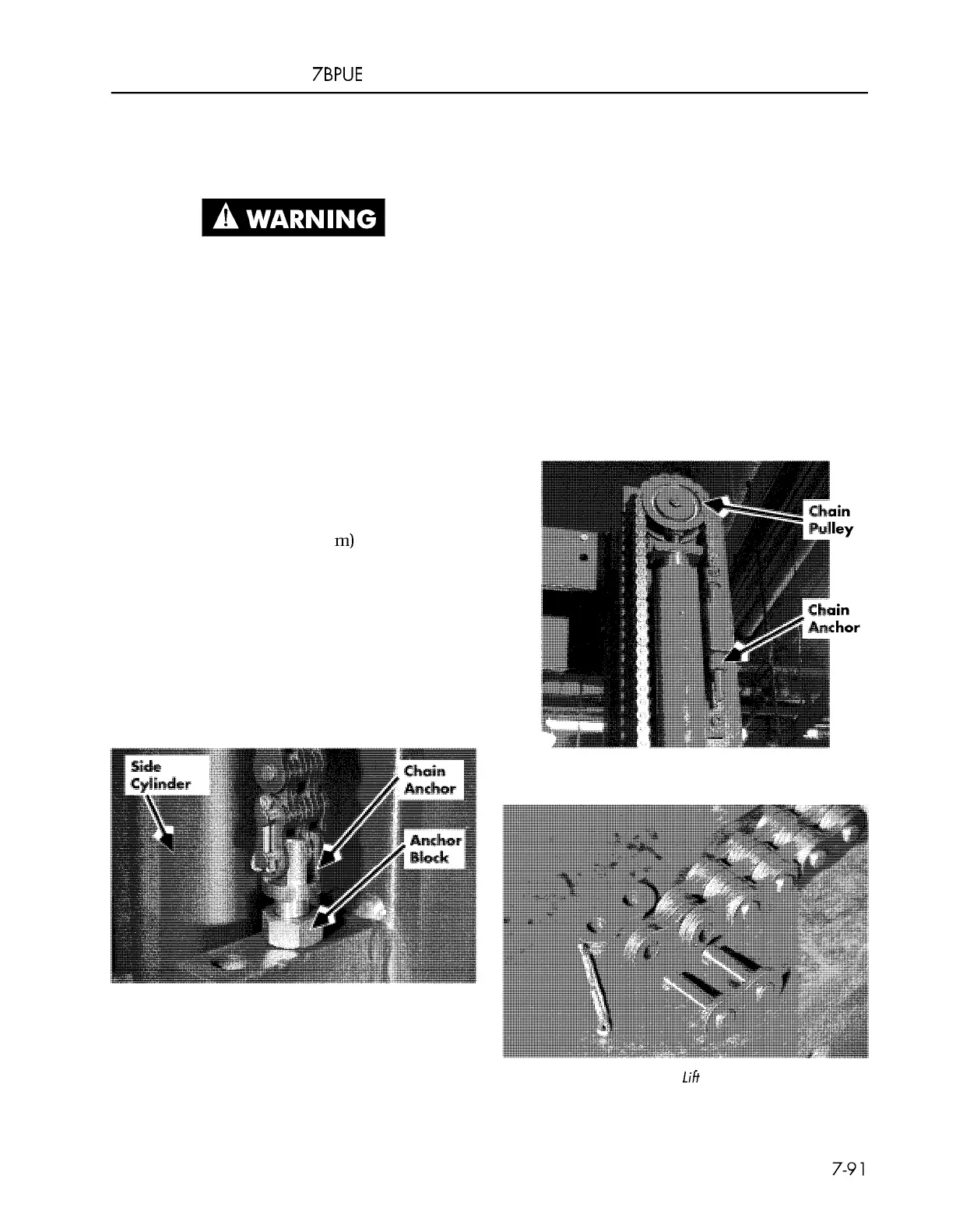

Figure
7
-
139.
5.
Feed chain over pulley and connect in
chain anchors. See Figure 7
-
137 and
Figure 7
-
138.
Replace
1. Attach suitable hoist and lift carriage
approximately
3
feet
(.9
m) and block.
2.
Disconnect chain from chain anchor and
feed out of truck.
3. Replace as necessary.
4.
Feed chain over pulley and connect in
chain anchor.
5.
Remove block and hoist.
6.
Connect power and test lift function before
returning the truck to service.
Figure
7
-
138. Upper Chain Anchor and Pulley
Figure
7
-
137. lower Anchor Block
Figure
7
-
139. Master Link of Lift Chain
00700
-
CL222
-
05,
1
5 March 2005
