Section 7. Component Procedures Toyota Orderpicker Model 7BPUE 15 Service Manual
Side Cylinder
Seal Repacking
1. Remove cylinder. See " Side Cylinder " on
page 7
- 65.

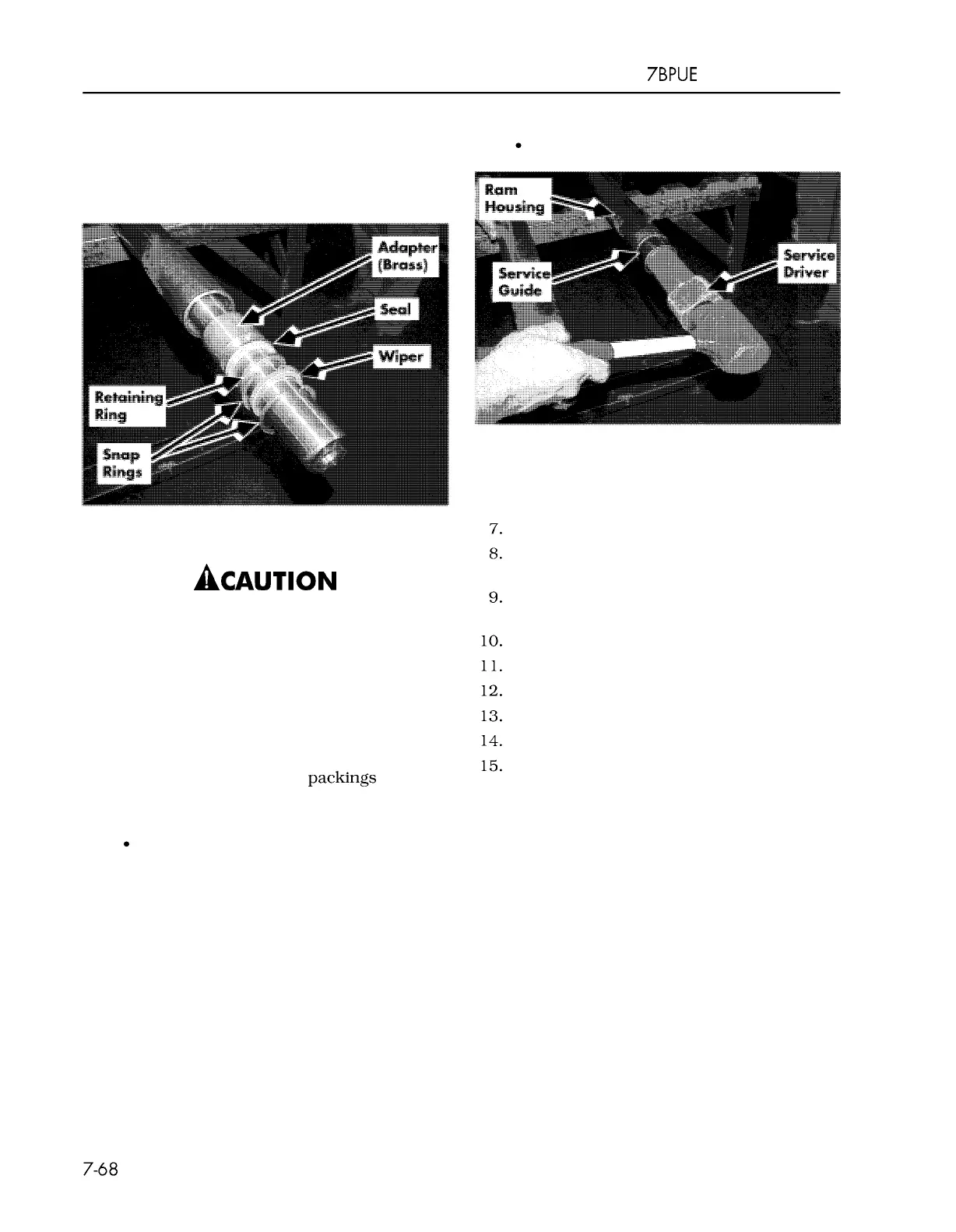

Figure 7 - 104. Packing Components on Side Cylinder
ACAUTION
Do not damage chrome plating on
piston.
2. Remove snap rings, seals, backup ring and
brass adapter. See Figure 7
- 104.
3. Dip all packings in clean hydraulic fluid.
4. Lubricate inside of cylinder housing with
hydraulic fluid.
N O T E : To prevent damage to packings at the
top of the cylinder, use the following
tools:
Service driver, P/N 00590 - 454 15 - 7 1
Hydraulic Components
Service guide, P/N 00590 - 45416 - 7 1
Figure 7 - 105. Using C
y
linder Service Tools
5. Slide brass adapter on piston.
6. Install piston assembly into housing.
Install service guide. See Figure 7
- 105.
Dip seal in oil and slide over piston, back
first.
Drive seal into assembly with driver. See
Figure 7
- 105.
Remove service guide.
Install packing backup ring.
Install snap ring.
Install wiper.
Install snap ring.
Install cylinder. See
" Side Cylinder " on
page 7
- 65.
00700 - CL222 - 05, 1 5 March 2005
