Section 7. Component Procedures Toyota Orderpicker Model 7BPUE 15 Service Manual
Load Wheels
Load Wheels
Mast Section
Use extreme care whenever the truck is
jacked up. Keep hands and feet clear of
from the vehicle while jacking the truck.
After the truck
is jacked, place solid
blocks beneath it to support it.
DO NOT
rely on the jack alone to support the
truck. See
" Jacking Safety " on
page
2 - 1 1.

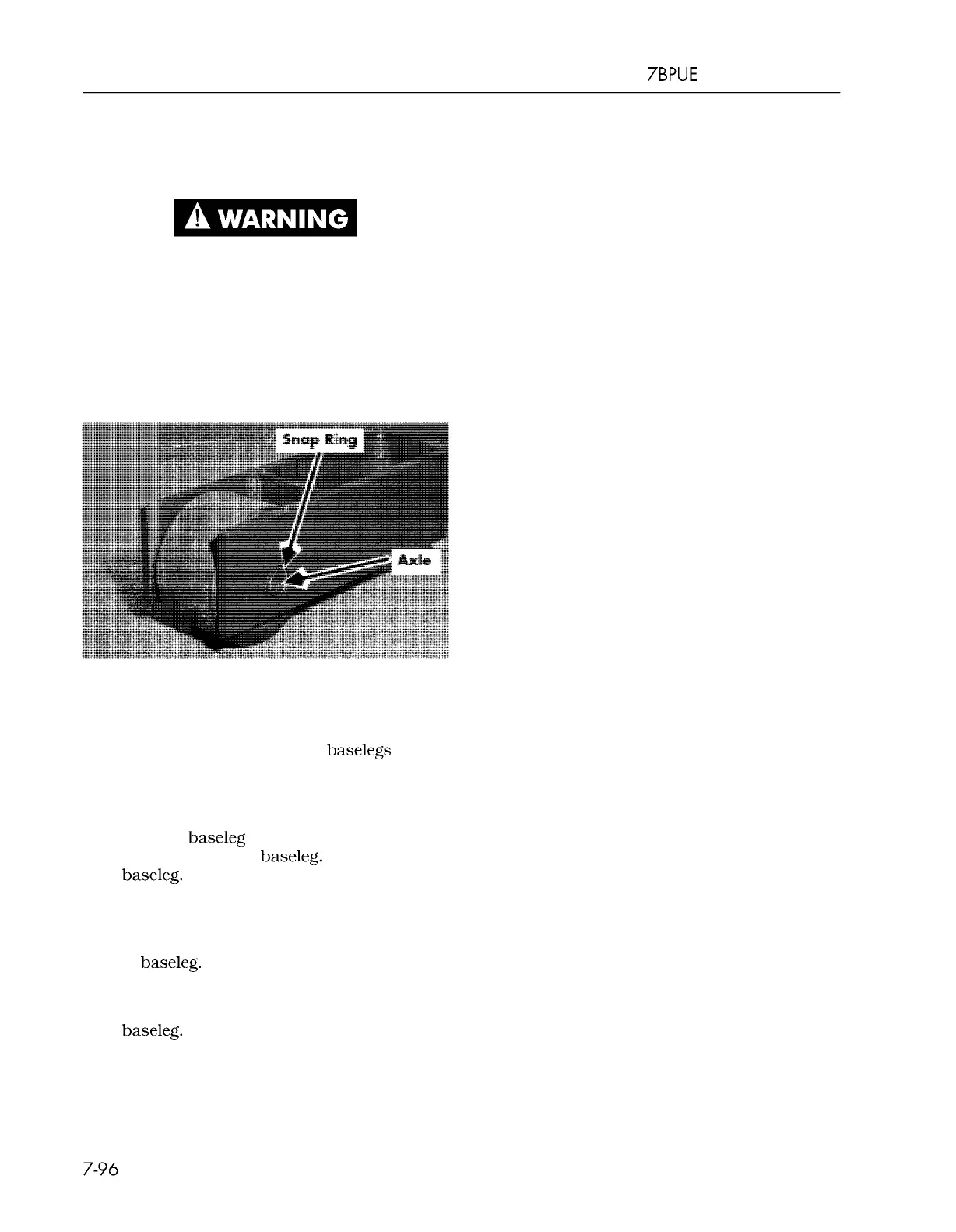

Figure 7 - 146. load Wheel
1. Raise operator platform approximately 1
ft. from the floor. Place a 4
x 4 inch (10 x
10 cm) block across top of baselegs
underneath platform.
2. Turn key switch OFF and disconnect
battery.
3. Jack up
baseleg high enough to clear load
wheel from under
baseleg. Block under
baseleg.
4. Remove snap ring from axle. See
Figure
7 - 146.
5. Drive out axle. The load wheel will fall out
of
baseleg. See Figure 7 - 146.
6. Replace load wheel assembly.
7. Drive axle back through wheel and
baseleg.
8. Install snap ring.
9. Remove blocks.
00700 - CL222 - 05, 1 5 March 2005
