Toyota Orderpicker Model 7BPUE 15 Service Manual
Section
7. Component Procedures
Electrical Components
Contactor Tip Replacement
3. Install new contact spring over insulator
bushing.
4. Install new fiber washer over rod assembly
shaft.
5. Secure movable tip assembly with nut on
top of core and rod assembly shaft.
6. Install new stationary contactor tips (2),
with tips facing up.

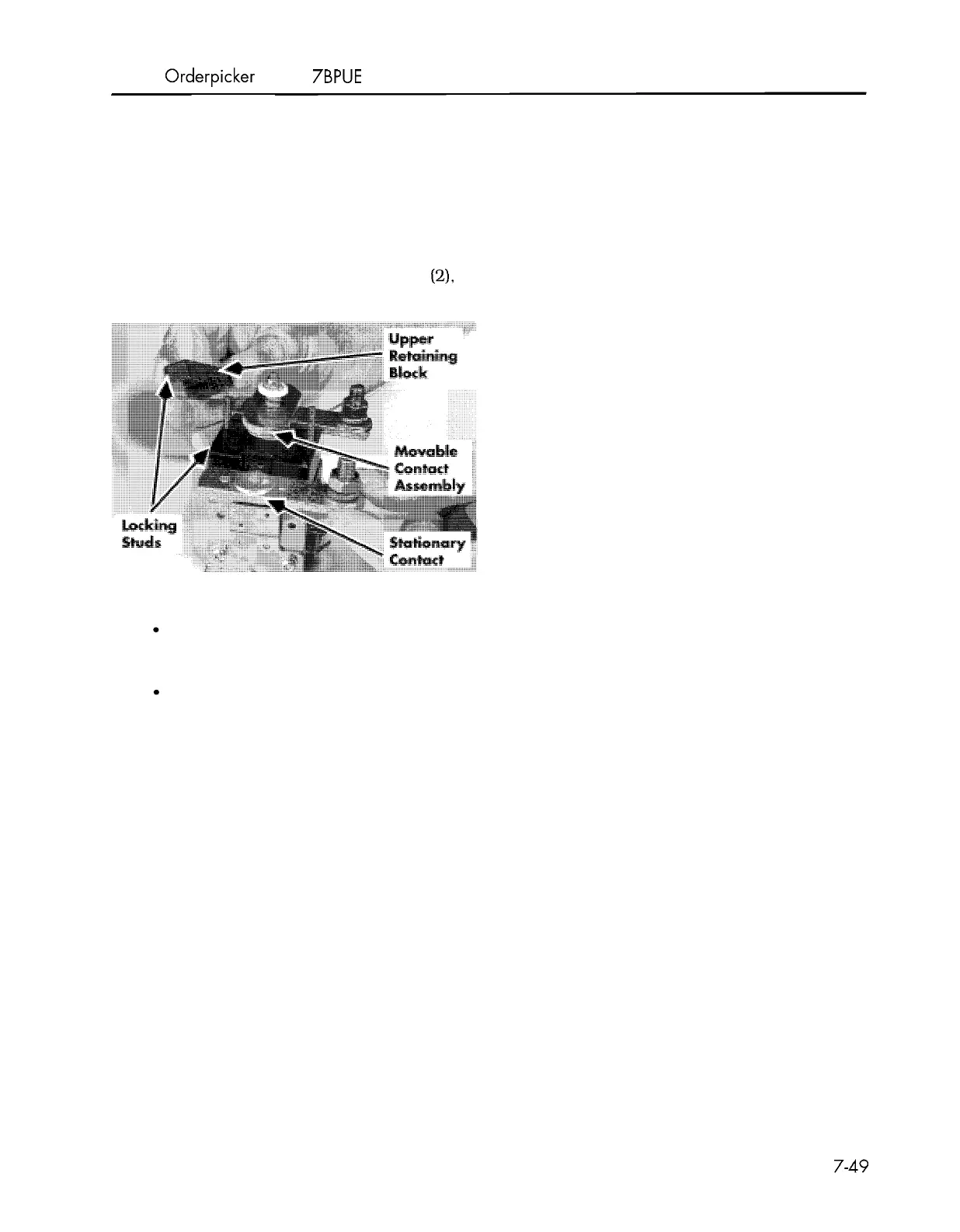

Figure 7 - 75. Contactor Assembly
Make sure cable posts face up, and are
on same side as contactor coil spade
terminals.
Make sure studs on lower retaining
block lock into holes in contact tip bar.
7. Install upper retainer blocks
(2). Studs on
blocks will lock into holes in contactor
tips. See Figure 7
- 75.
N O T E : Grooves on the retainer blocks face the
inside.
8. Secure upper retainer blocks with nylon
nuts.
00700 - CL222 - 05, 1 5 March 2005
