Toyota Orderpicker Model 7BPUE 15 Service Manual Section 8. Wire Guidance
Install Kit Components
Install Kit Components
Before installing kit components, turn the key
switch OFF, disconnect the battery and remove
the appropriate covers.
N O T E : Once you install all the components,
complete the Set
- Up Procedure
beginning on 8
- 9.
Guidance Manager (Steer
Controller Card and Filter Card)
The guidance manager is an assembly
comprised mainly of a steer controller card and
a filter card. The wire guidance firmware is
housed in the WSI module.
1. Wear a static strap and insert the WSI
module
(P/N 00590 - 458 18 - 7 1) into the
socket on the steer controller card. See
Figure 8
- 1.

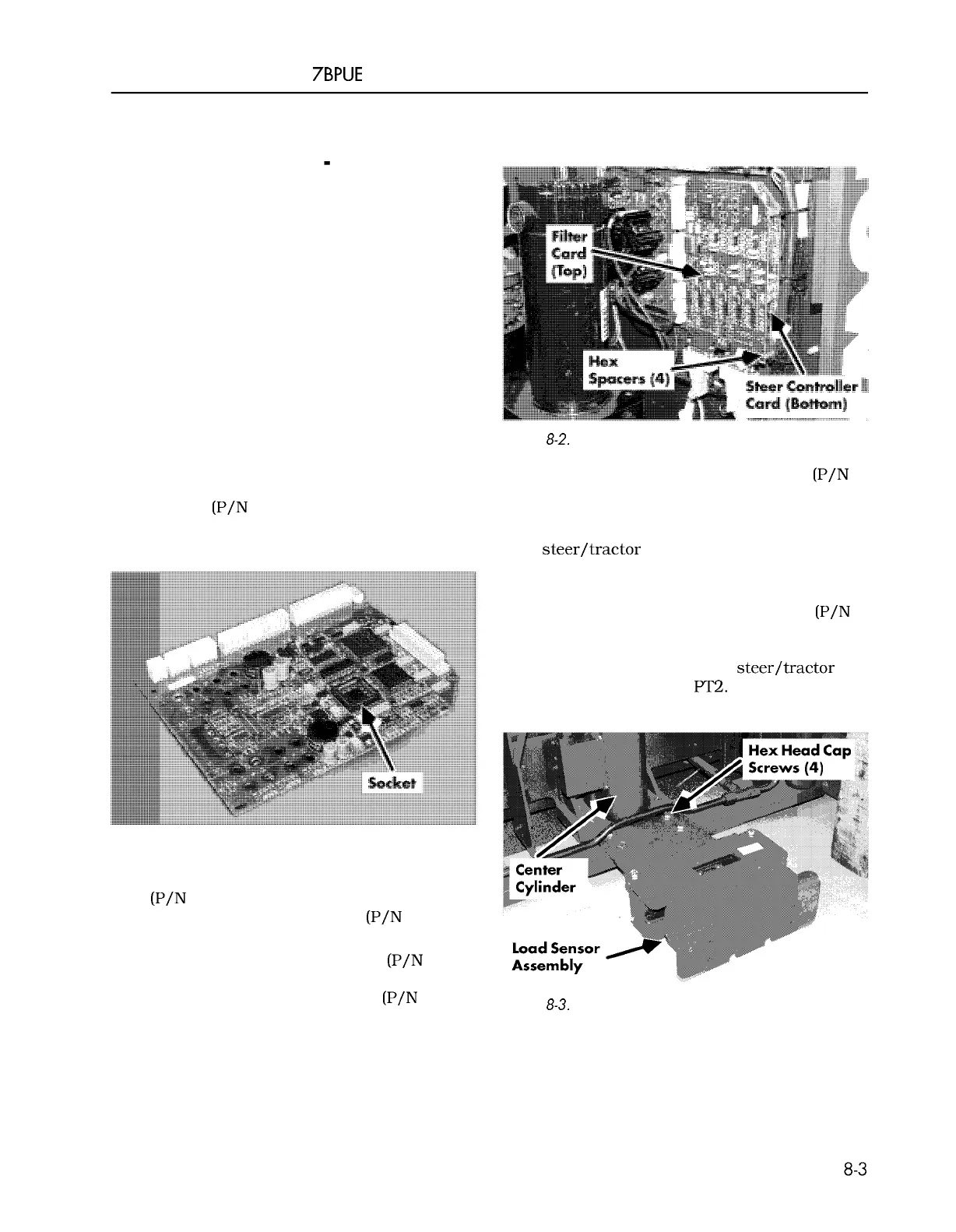

Figure 8 - 1. Steer Controller Card
2. Install the steer controller card assembly
(P/N 00590 - 459 10 - 7 1) on the electrical
panel with four hex spacers
(P/N
00590 - 02988 - 7 1). See Figure 8 - 2.
3. Install the filter card assembly
(P/N
00590 - 45747 - 71) on the steer controller
Figure 8-2. Guidance Manager, Installed
4. Install the power and ground cable (P/N
00590 - 4588 1 - 71) to connector PS2 on the
steer controller card. Route the wires
through the wiring channel along the
steer/tractor manager to SPL3 and TP4 as
shown on the schematic. (See Figure
A - 6
on page A - 13.) Use cable ties as necessary.
5. Install the
CAN bus wiring harness (P/N
00590 - 45881 - 71) to PS4 on the steer
controller card. Route the harness along
the existing wiring to the
steer/tractor
manager connector PT2. Use cable ties as
necessary.
card. Secure with four screws
(P/N
Figure 8-3. Load Sensor Assembly, Installed
00590 - 45925 - 7 1) in the hex spacers. See
Figure 8
- 2.
00700 - CL222 - 05, 1 5 March 2005
