Section 7. Component Procedures
Toyota
Orderpicker Model 7BPUE 15 Service Manual
Three
-
Stage Carriage
Mast Section

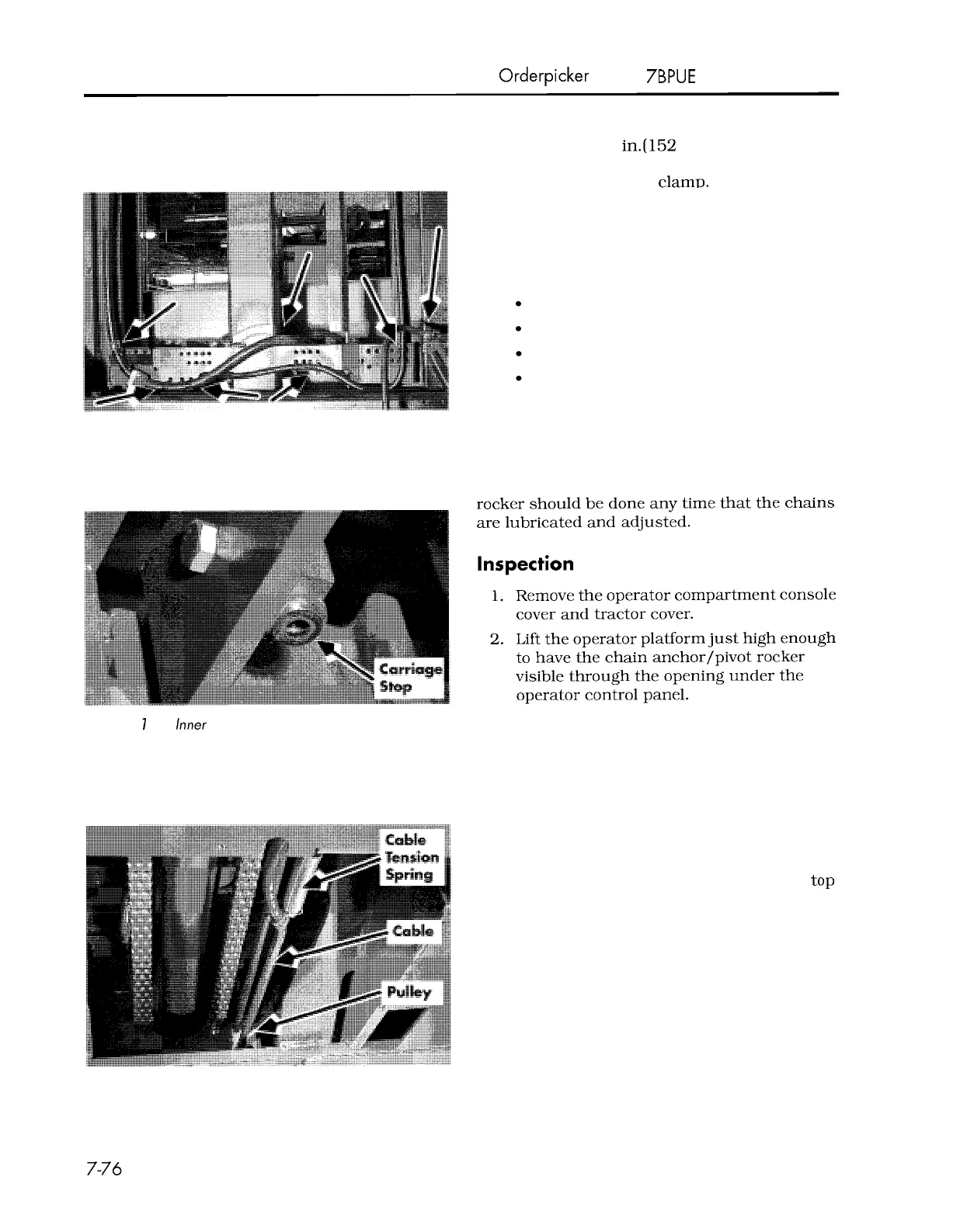

9. Tie electric cables to platform. See
N
O
T
E
:
There are 6 in.(152 mm) from the top of
Figure
7-
1 16.
the spring on the carriage to the center
bolt in the cable
clam^.
Figure
7
-
1
16. Tie Points for Cables on Platform, Backside
12. Install carriage plate.
13. Install mast guard.
14. Lift and lower platform fully, and check
functions of lift system. Look for:
Oil leaks
Cables on pulleys
Switch actuation
Unusual bearing noise
Center Cylinder Ride Spring
Chain Anchors
-
-
10. Install carriage stops at top of inner mast.
See Figure 7
-
1 17.
Inspection of the chain anchors and pivot
Figure
7
-
1
17. Inner mast, Top Corner
3.
Place blocking under the operator's
platform. Lower the platform onto the
1 1. Lower carriage and install cable on bottom support.
pulley of carriage. Install cable retainer
4. Disconnect the battery connector and
spring. See Figure
7
-
1
18.
open the emergency lower valve.
The center cylinder will move down and
the chains will go slack. If the center
cylinder does not go down far enough to
slacken the chains, push down on the
tc
of the cylinder. This will allow the chain
anchor to be visible for inspection. See
Figure
7
-
1 19.
Figure
7
-
1
18. Electrical Over
-
the
-
Mast Cable, Front Side of
Platform
