Toyota Orderpicker Model 7BPUE 15 Service Manual Section 7. Component Procedures
Hydraulic Components Flow Control Valve
Flow Control Valve
Figure
7
-

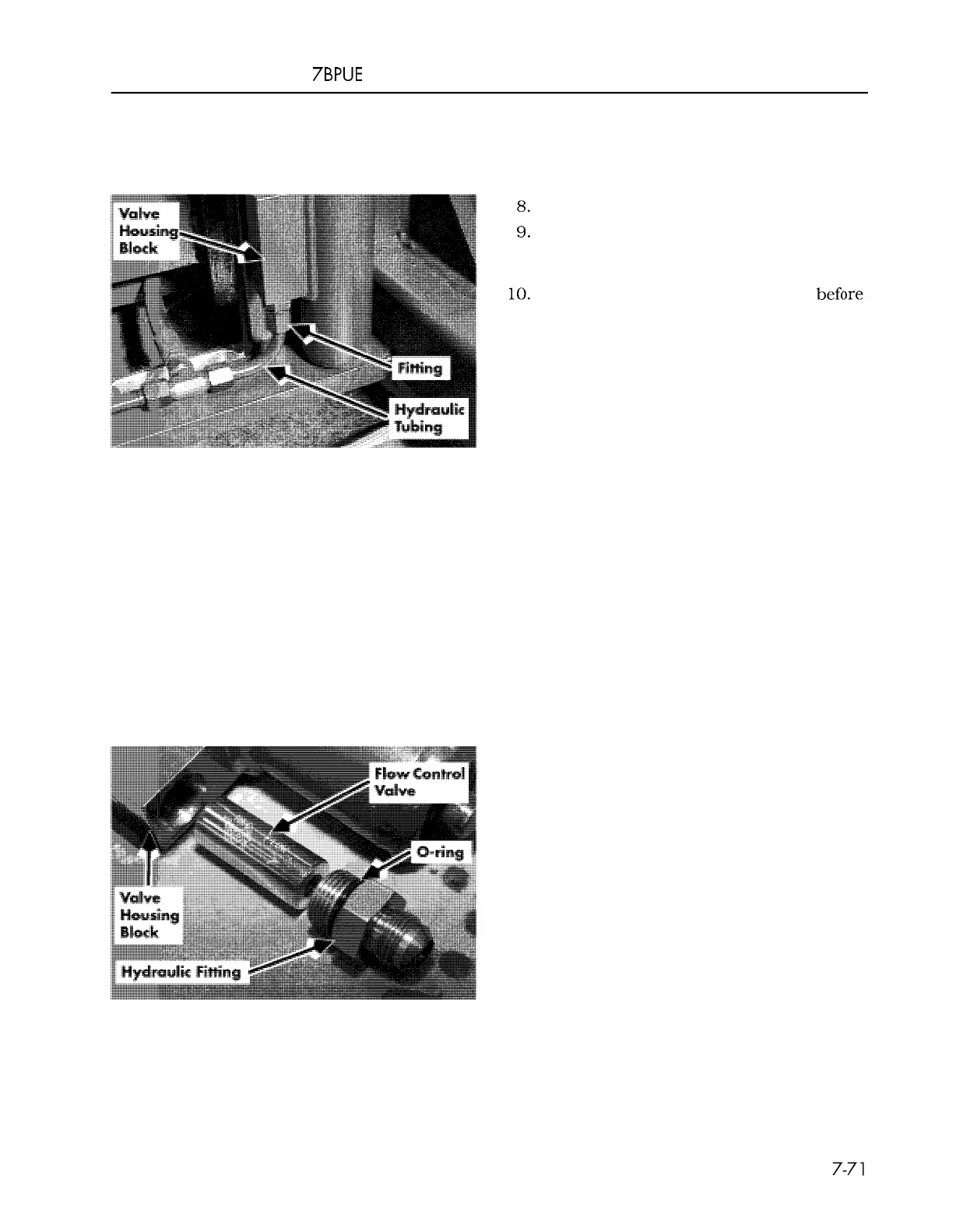

108. Flow Control Valve Location
Replace
1. Lift and block carriage enough to reach
valve housing block.
2.
Turn key switch OFF and disconnect the
battery.
3.
Remove hydraulic tubing. See
Figure 7
-
108.
4. Remove fitting. See Figure 7
-
108.
5.
Pull out flow control valve.
6. Place the new valve in the housing.
Figure
7
-
109. Replacing Flow Control Valve
N
O
T
E
:
Follow the directional arrow on the flow
control valve to install it correctly. It
should be pointing out of the housing in
the direction of flow. See Figure 7
-
109.
7. Place the hydraulic fitting in the valve
housing block
with
the O
-
ring end first
and tighten.
Install hydraulic tubing.
Remove blocks and bleed the hydraulic
system. See
"
Bleeding the Hydraulic
System
"
on page 7
-
64.
Connect power and test lift function
befc
returning truck to service.
00700
-
CL222
-
05,
1
5 March 2005
