Toyota Orderpicker Model 7BPUE 15 Service Manual Section 7. Component Procedures
Mast Section Three
-
Stage Carriage

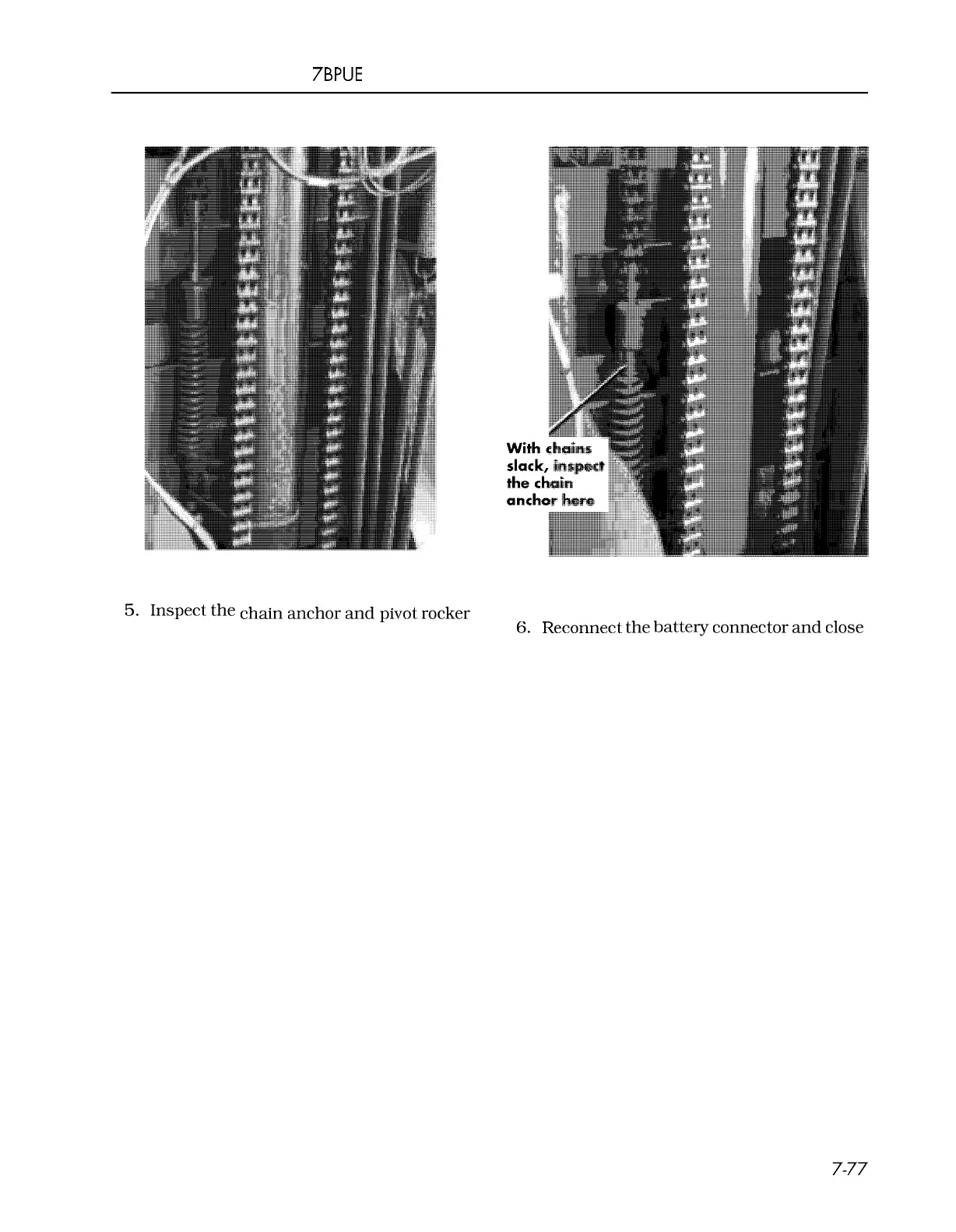

Figure
7
-
1
19:
Before chain goes slack
Figure
7
-
120:
After chain goes slack
5'
Inspect
the
anchor
and
pivot
rocker
6.
Reconnect the battely connector and close
for wear and replace if necessary. See
the emergency lower valve. Lift the
Figure
7
-
120.
platform
slowly
to take slack out of the
chains and to clear the safety stand from
beneath it.
7.
Remove the stand and lower the platform.
00700
-
CL222
-
05,
1
5 March 2005
8.
Reinstall all covers.
