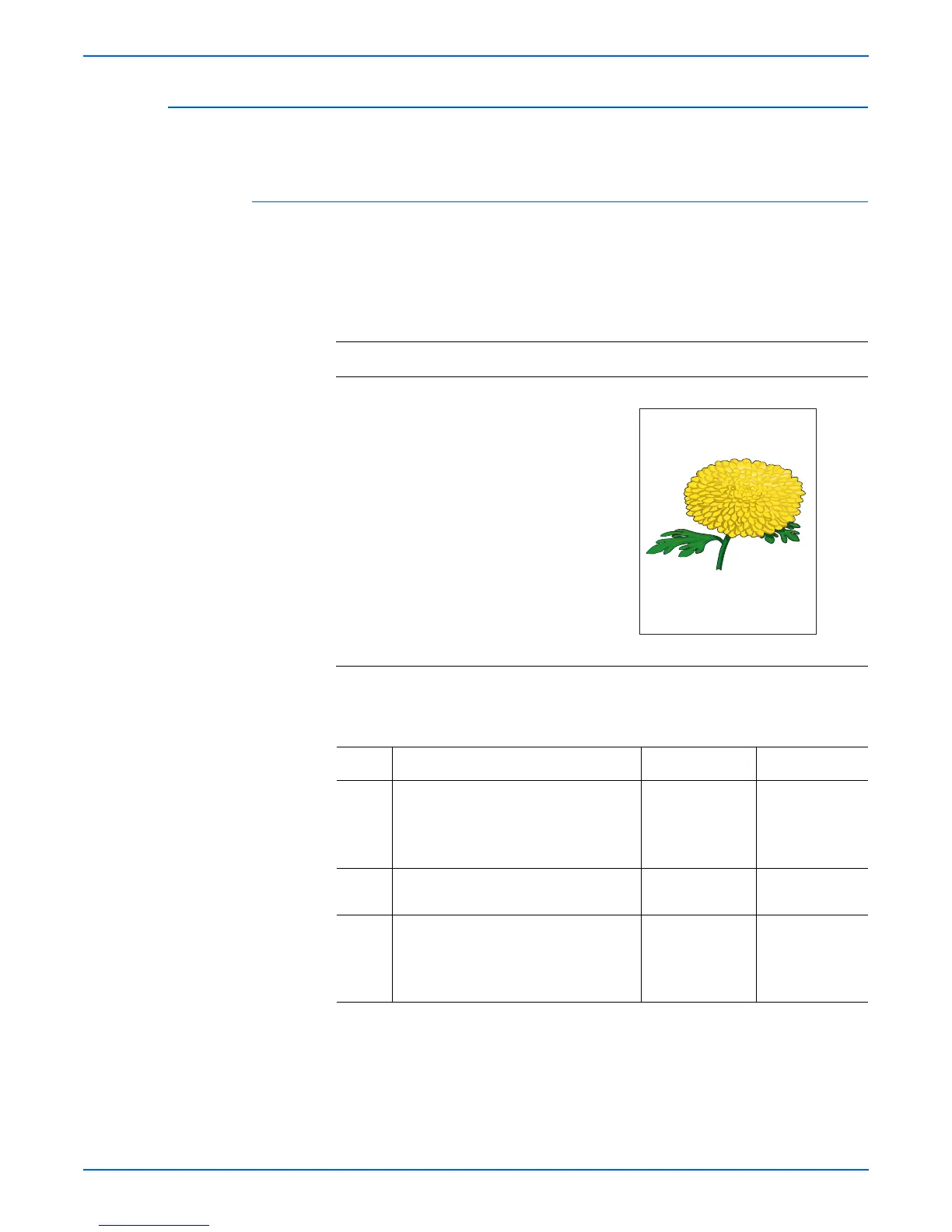

Phaser 6180MFP Multifunction Printer Service Manual 5-65
Print-Quality Troubleshooting
Incorrect Magnification
Incorrect magnification when copying with the ADF feeding.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path.
Troubleshooting Reference Table
Applicable Parts Example Print
■ ADF Scanner Assembly, PL11.1.1
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 1.Check the paper condition.
2.Is the paper dry, recommended,
loaded in the correct position, and
meet the ADF specifications?
Go to step 2. Replace the
paper or use the
platen mode.
2 Is the ADF closed against the
document glass completely?
Go to step 3. Close the ADF.
3 1.Perform Scanner Calibration
procedure (“Scanner Calibration” on
page 6-8).
2.Does the error still occur?
Replace the ADF
Scanner
Assembly
(page 8-129).
Complete.
