8-70 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly
Left Arm Assembly (PL7.1.3)
1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove the Left Pole Inner Cover (page 8-24).
6. Remove the Left Pole Cover (page 8-25).
7. Remove the Left Cover (page 8-26).
8. Release the hook of the Shaft Pivot (PL1.2.10) securing the Left Link to
the Front Cover.
9. Remove the Shaft Pivot and the Left Link.
10. Remove 3 screws (8 mm) securing the Left Link Support (PL7.1.2) to the
printer.
11. Remove the Left Link Support.
Caution
The Support Spring may come loose when removing the Left Link
Support. Cover the area with your hand to prevent the Support Spring
from coming loose.

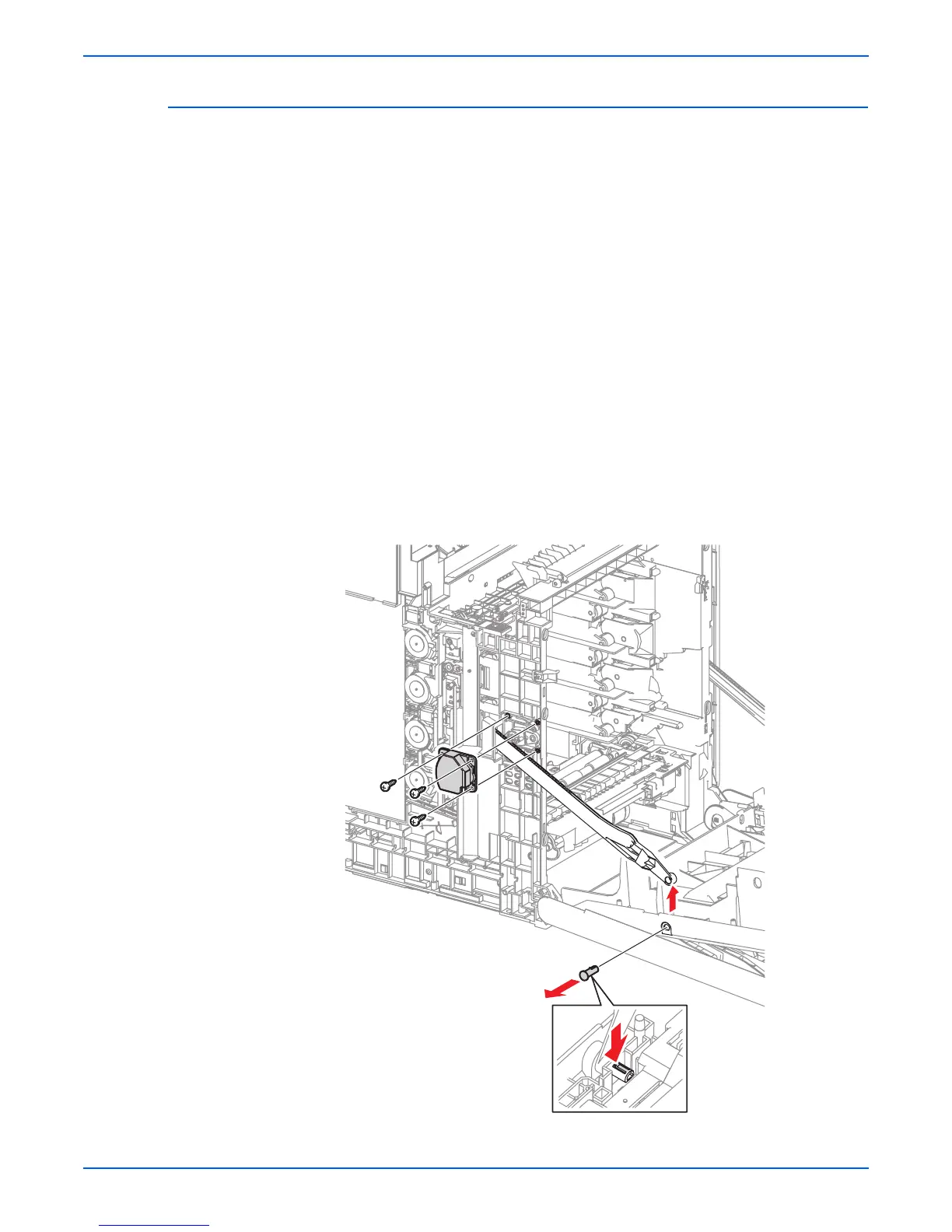

s6180mfp-301
