Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 8-95
Service Parts Disassembly
Multi-Protocol Network Card (PL9.1.23)
Caution
Be sure to wear proper ESD protection to prevent from damaging the
Multi-Protocol Card (MPC).
1. Loosen 1 Knurling Screw (PL9.1.12) and open the Controller Shield
Window Plate (PL9.1.10).
2. Remove 2 Knurling Screws (PL9.1.12) securing the Multi-Protocol Card to
the printer.
3. Remove the Multi-Protocol Card from the Image Processor Board
(PL9.1.20).

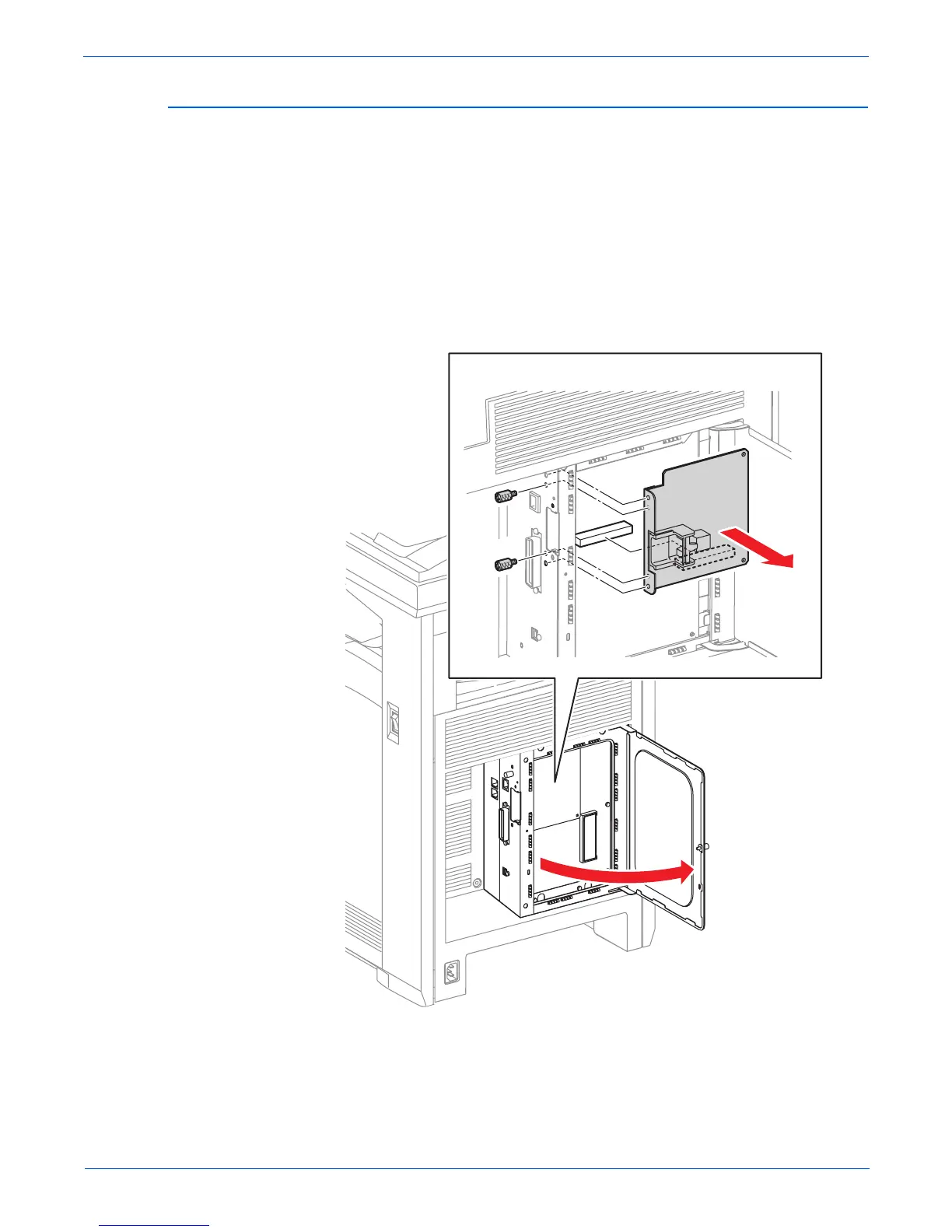

s6180mfp-322
