8-84 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly

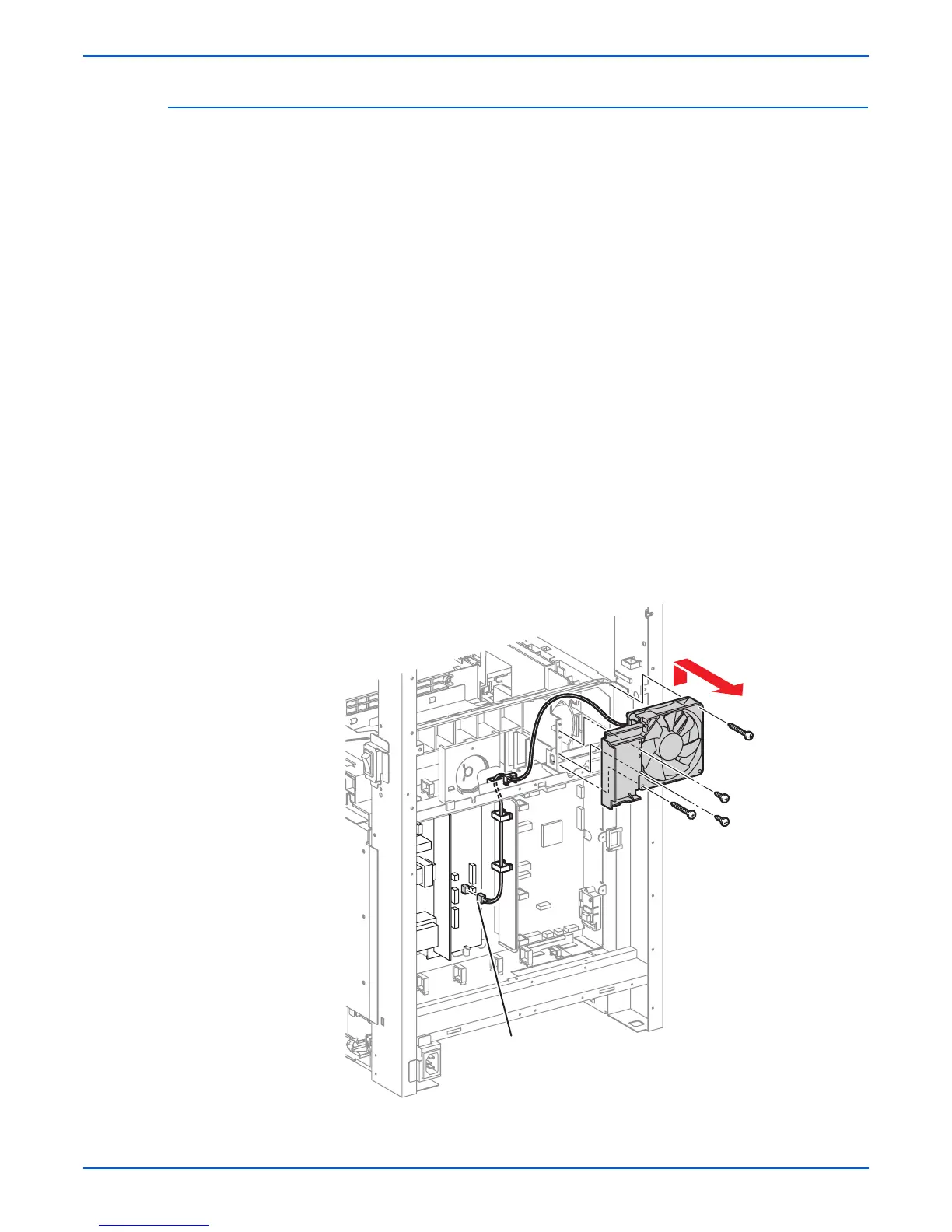

Main Fan (PL9.2.10)
1. Open the Front Cover.
2. Remove the Fuser (page 8-12).
3. Remove the Rear Cover (page 8-18).
4. Remove the Bottom Cover (page 8-19).
5. Remove the Right Pole Inner Cover (page 8-21).
6. Remove the Right Pole Cover (page 8-22).
7. Remove the Right Cover (page 8-23).
8. Remove the Left Pole Inner Cover (page 8-24).
9. Remove the Left Pole Cover (page 8-25).
10. Remove the Left Cover (page 8-26).
11. Remove the Top Cover (page 8-27).
12. Remove the Controller Shield Box Assembly (page 8-92).
13. Remove the Fax Shield Box Assembly (page 8-96).
14. Disconnect the Fan connector P/J503 from the LVPS (PL9.2.14).
15. Release the Fan wiring harness from the 4 Clamps and pull it out of the
hole on the printer.
16. Remove 2 screws (8 mm) securing the Main Fan to the Duct Plate
(PL9.2.9)
17. Remove 2 screws (32 mm) securing the Main Fan to the printer.
18. Remove Duct Plate and Main Fan from the printer.
s6180mfp-313
P/J503
To Next Page
