Phaser 6180MFP Multifunction Printer Service Manual 8-127
Service Parts Disassembly
Tray 3 Feeder Unit (PL13.2.9)
1. Remove the Optional 550-Sheet Feeder (page 8-116).
2. Remove the Tray 3 Rear Cover (page 8-118).
3. Remove the Optional Feeder Assembly (page 8-117).
4. Remove the Tray 3 Front Left Cover (page 8-119).
5. Remove the Tray 3 OPF Left Cover (page 8-120).
6. Remove the Tray 3 Front Right Cover (page 8-121).
7. Remove the Tray 3 OPF Right Cover (page 8-122).
8. Remove the Tray 3 Turn Clutch (page 8-123).
9. Remove the Tray 3 Feed Clutch (page 8-124).
10. Remove the Tray 3 Size Switch (page 8-129).
11. Remove the Tray 3 Right Tray Guide (page 8-125).
12. Remove the Tray 3 Left Tray Guide (page 8-126).
o
e
When performing the following step, leave the junction connector on the
Optional Frame Assembly side cable.

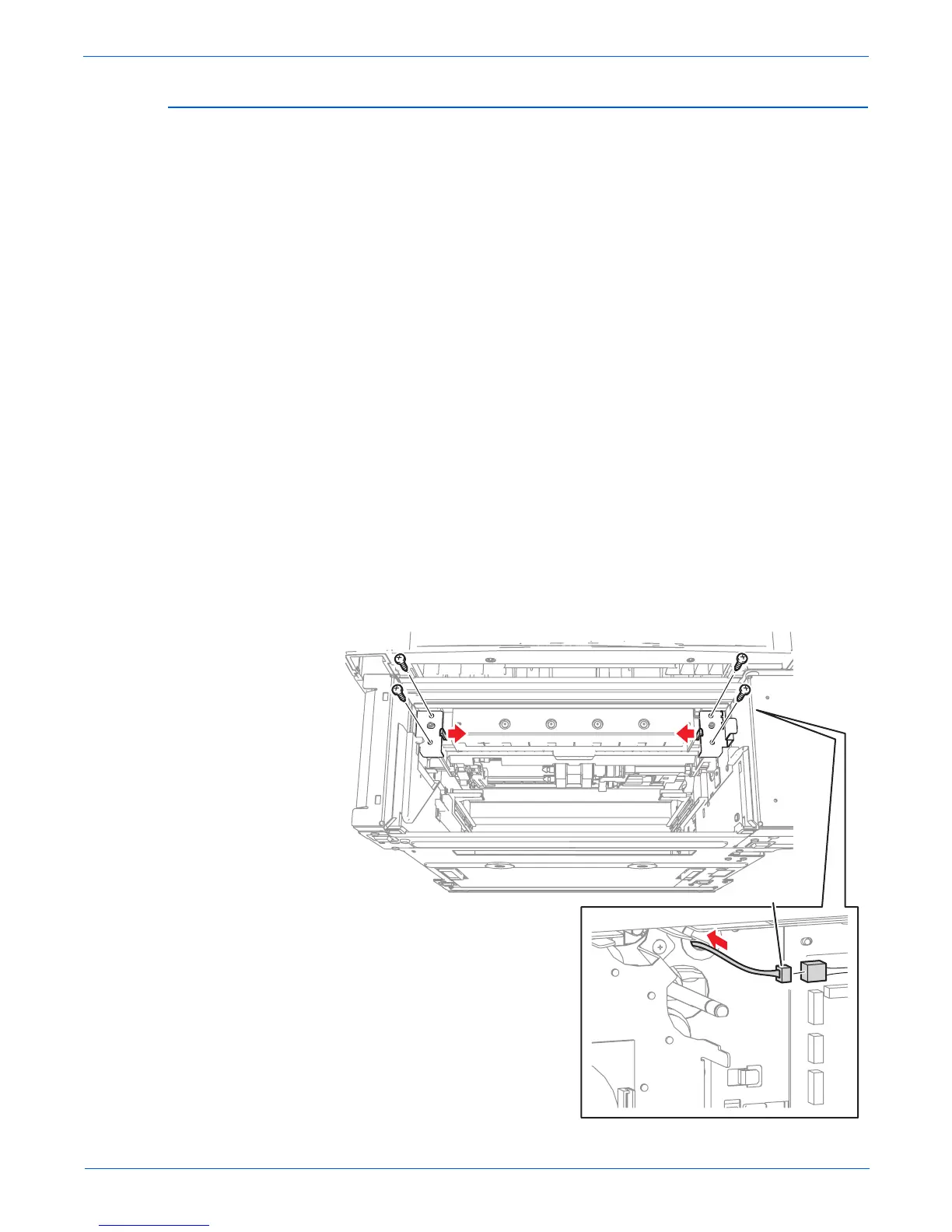

13. Disconnect the Tray 3 Feeder connector P/J4212 and slide the connector
out of the hole of the Optional Frame Assembly (PL13.3.1).
14. Remove 4 screws (8 mm) securing the Tray 3 Feeder to the Optional
Frame Assembly.
15. Release the 2 hooks securing the Tray 3 Feeder to the Optional Frame
Assembly and release the 2 notches from the hole of the Frame.
s6180mfp-338
P/J4212
To Next Page
