8-60 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly

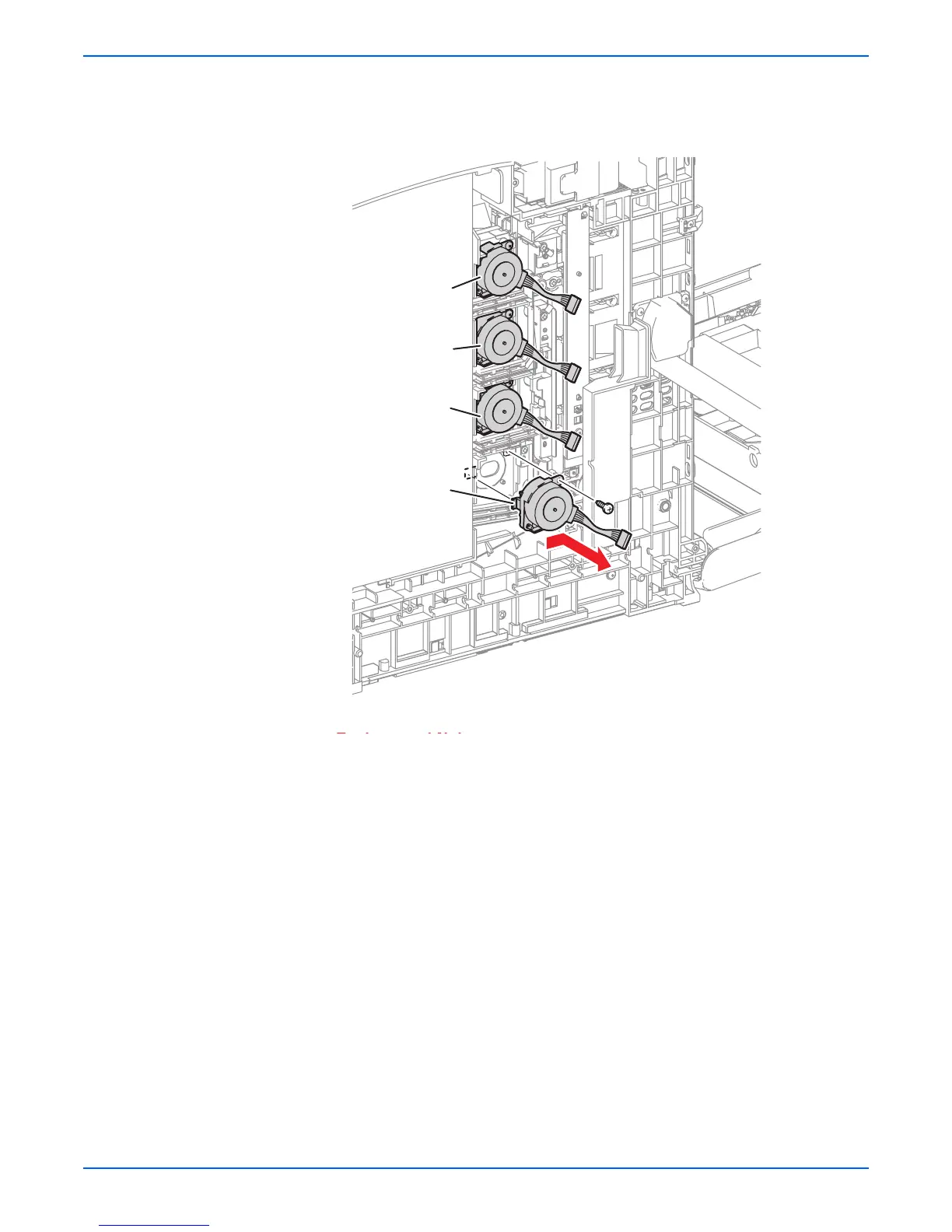

11. Remove 1 screw (10 mm) securing the Toner Dispenser Motor.
12. Slightly shift the Toner Dispenser Motor toward the front, release the
convex sections, and remove the Toner Dispenser Motor.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Be sure to align the convex sections of the Toner Dispenser Motor
with the holes on the printer and shift the Motor toward the rear.
s6180mfp-292
Toner Dispenser
Motor (K)
Toner Dispenser
Motor (C)
Toner Dispenser
Motor (M)
Toner Dispenser
Motor (Y)
