1-3
INFORMACI
Ó
NIMPOR
T
A
NTE


lubrication.


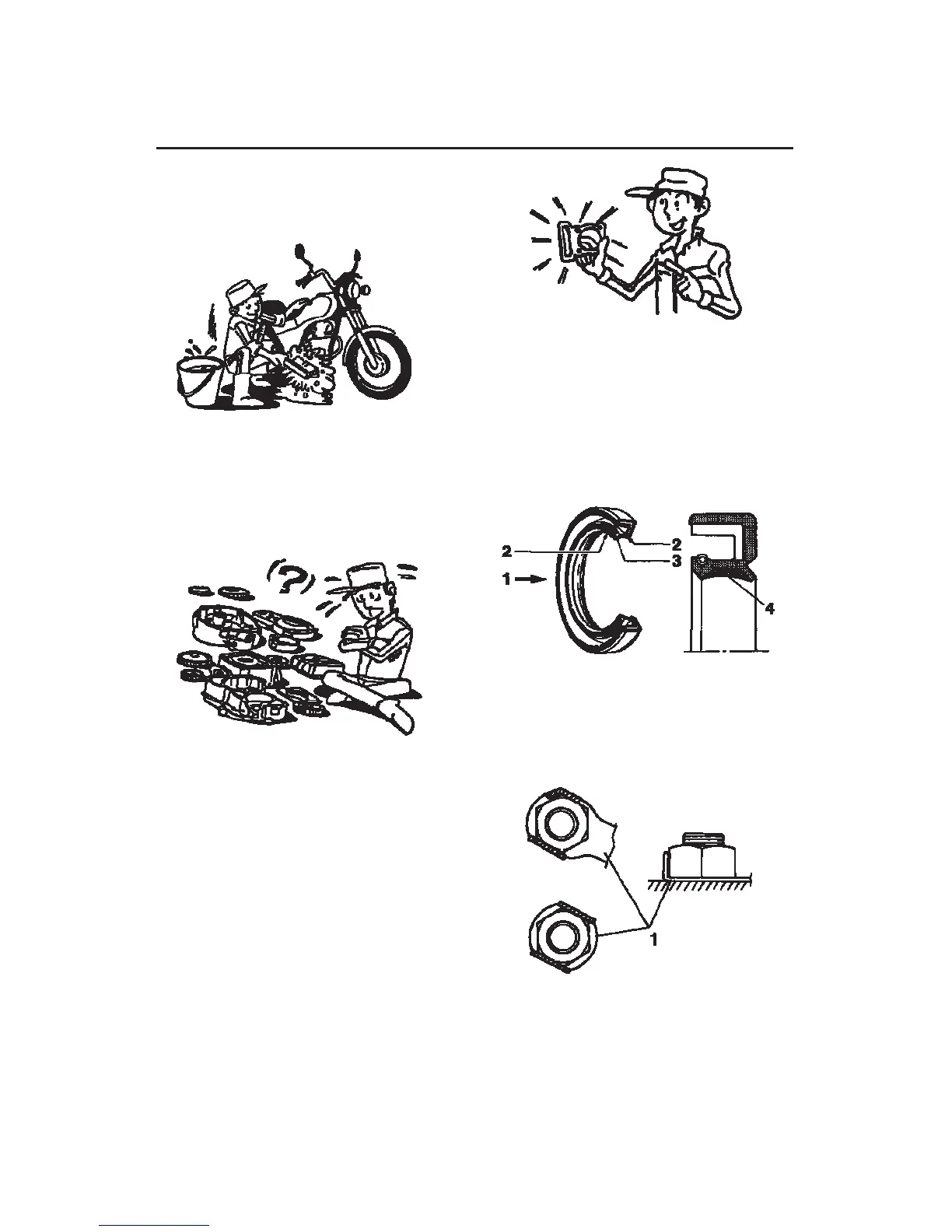

PREPARATION FOR REMOVAL AND
DISASSEMBLY
1. Before removal and disassembly, clean all dirt,
mud, dust and foreign material.












2. Use only the proper tools and equipment
clean.
See "SPECIAL TOOL S" on page 1-8.
3. When disassembling, always hold together
parts of the same whole. This includes gears,
cylinders, pistons and other parts that work
"grouped" for normal use. The parts should
always be grouped reused or replaced
altogether.













4. During disassembly, clean all parts and place
them in trays in the order of disassembly. This
will speed up the assembly and ensure the
correct assembly of the pieces
5. Keep all parts away from any
fire source.

REPLACEMENT PARTS
Use only genuine Yamaha parts in all changes.
Use oil and grease recommended by Yamaha,
for all
services
.
Other brands may
be similar in function and appearance, but
inferior in quality.

GASKETS, OIL SEALS AND O RINGS

1. When assembling the engine, replace all
gaskets, oil seals and O-rings. All packaging
surfaces, edges of oil seals and O-rings must be
cleaned.
2. During assembly, place the oil specified in all
parts and bearings, and carefully lubricate the
edges of oil grease them.



Lockwashers, locknuts and PINS
After disassembly, replace all lock washers and pins
"1". After it has set the screw or nut to the specified
torque, double side edges against the side of the
screw or nut.

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
